Reflective nanostructure field emission display
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 10, 2013
Grant Date -
N/A
app pub date -
Mar 3, 2010
filing date -
Mar 3, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

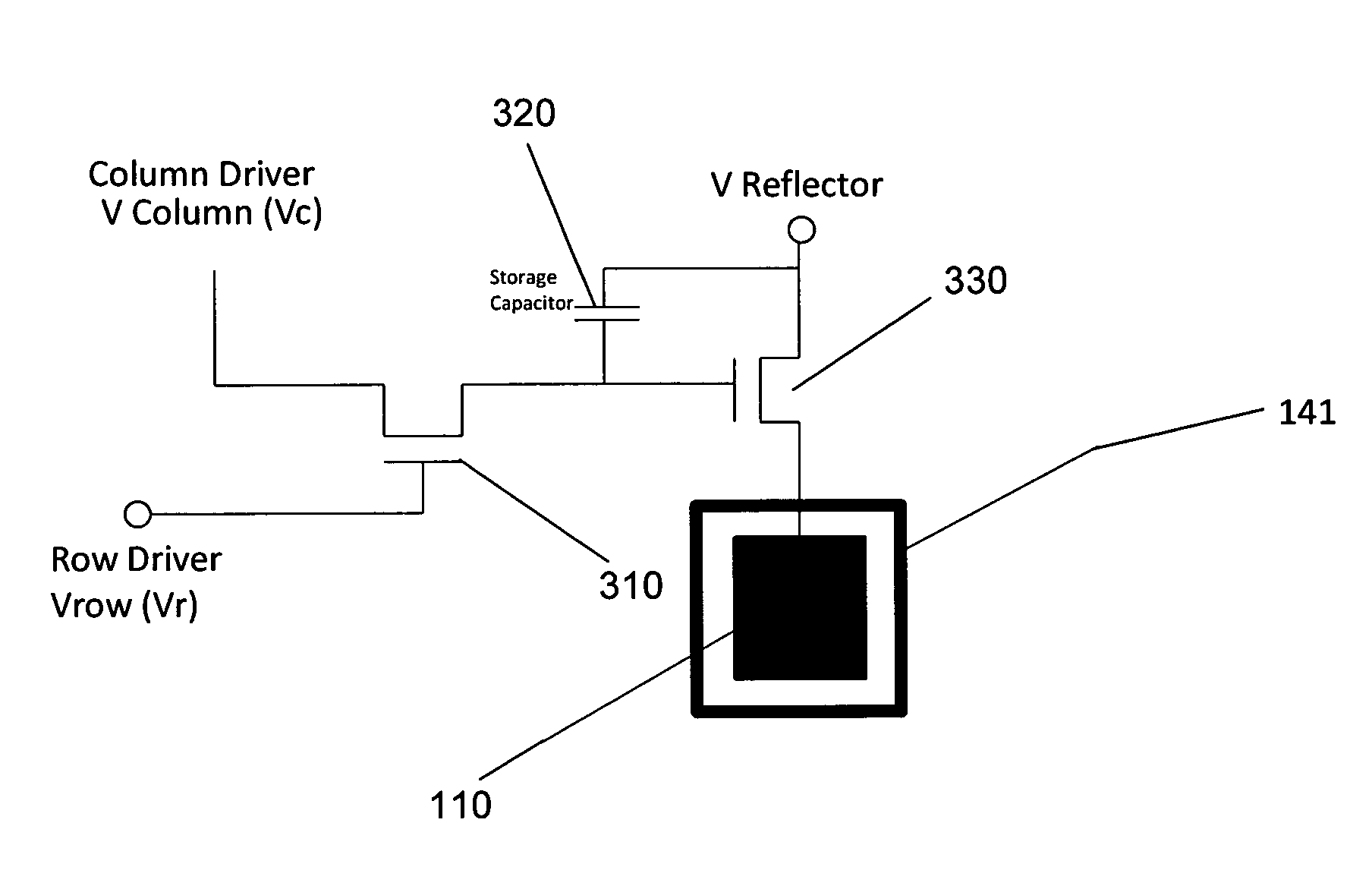

A pixel element includes a substrate layer, a reflector layer, and an emitter layer, electrically isolated from the reflector layer. A first potential is applied to the reflector layer, wherein a potential difference between the emitter layer and the corresponding one reflector layer is operable to draw electrons from the emitter layer to the corresponding reflector layer. The pixel element also includes a transparent layer oppositely positioned a predetermined distance from the emitter layer. The transparent layer has a conductive layer deposited thereon. A second potential is applied to the conductive layer to attract electrons reflected from the reflective layer. The pixel element also includes at least one phosphor layer on the conductive layer oppositely opposed to the corresponding reflector layer. The emitter layer includes a plurality of nanostructures.
