Aircraft control surface operating device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 3, 2013
Grant Date -
Apr 19, 2012
app pub date -
Oct 18, 2011
filing date -
Oct 18, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

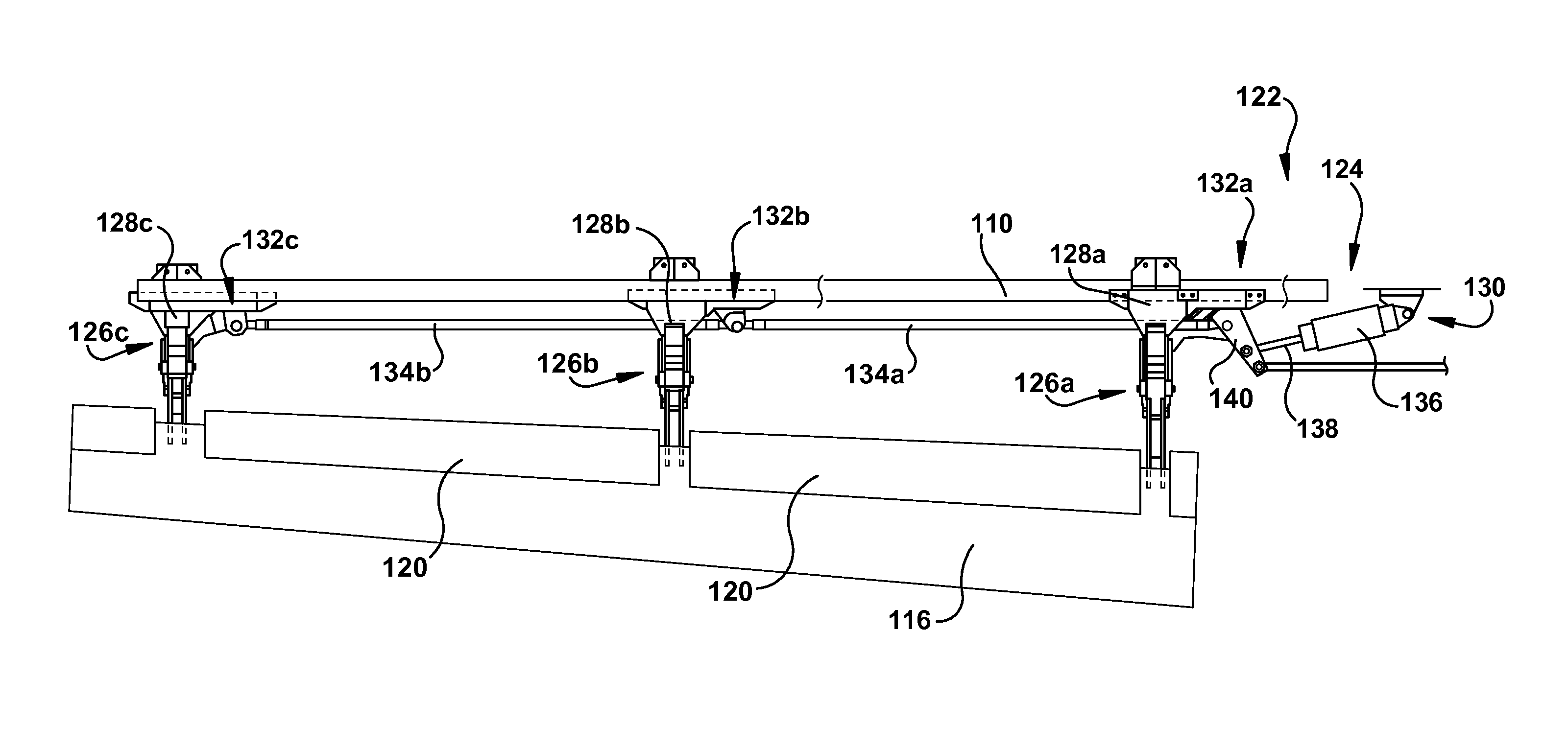

An aircraft control surface operating device is provided for operating a control surface on an aircraft body portion to move between a retracted position and an extended position. The aircraft control surface operating device includes a control surface mounting assembly which movably secures the control surface to the aircraft body portion, a drive arm rotatable about a drive axis relative to the aircraft body portion, an actuator for rotating the drive, and a drive link connecting the drive arm to the control surface mounting assembly. The drive link has a control end connected to the control surface mounting assembly and a driven end connected to the drive arm via a drive bearing joint. The drive link connects the drive arm and the control surface mounting assembly such that rotation of the drive arm is causes extending or retracting movement of the control surface.
