Adapter coupler for adapting couplings of different design
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 3, 2013
Grant Date -
Nov 10, 2011
app pub date -
May 3, 2011
filing date -
May 4, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

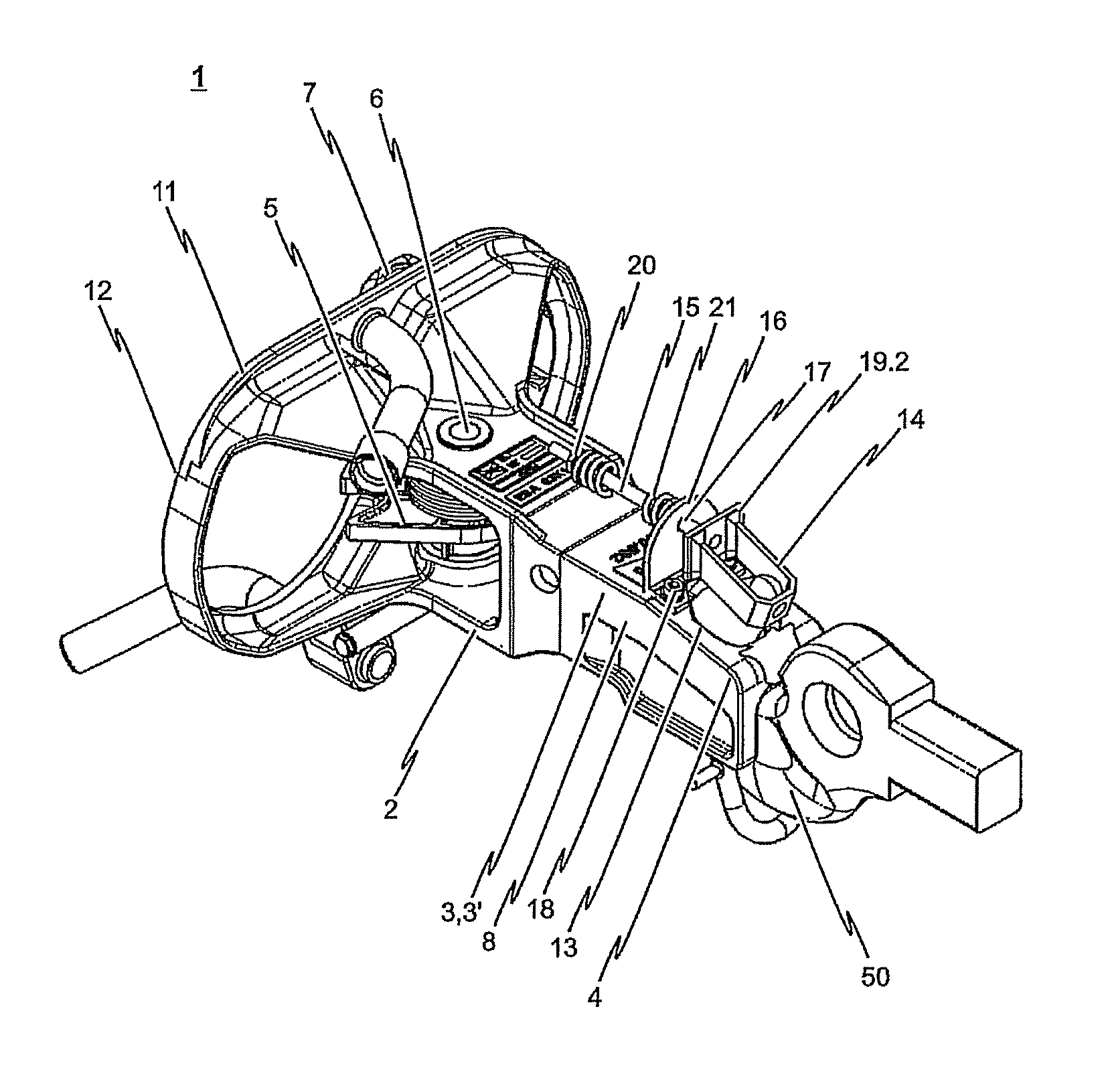

An adapter coupler (1) for adapting couplings of different design, wherein the adapter coupler (1) comprises a first connecting mechanism for releasably connecting the adapter coupler (1) to a first coupling, a second connecting mechanism for releasably connecting the adapter coupler (1) to the drawhook (50) of a second coupling, and a coupler housing (2) for connecting the first connecting mechanism to the second connecting mechanism, and wherein the second connecting mechanism comprises a tension yoke (8) with which to engage with the drawhook (50) of the second coupling. The adapter coupler (1) having a mechanism for height centering, comprising a drawbar eye (14) connected to the coupler housing (2), wherein the drawbar eye (14) is arranged and configured relative the tension yoke (8) such that upon the adapter coupler (1) being inserted into the jaw of the drawhook (50) of the second coupling, the drawhook (50) can engage in one joint process with both the accommodation formed by the tension yoke (8) as well as with the drawbar eye (14).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B61G Class
- 27 Applications Filed
- 25 Patents Issued To-Date
- 92.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B61G Class
- 40 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 3, 2025 |
