Method of bonding semiconductor substrate and MEMS device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 8592285
SERIAL NO

13513055

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

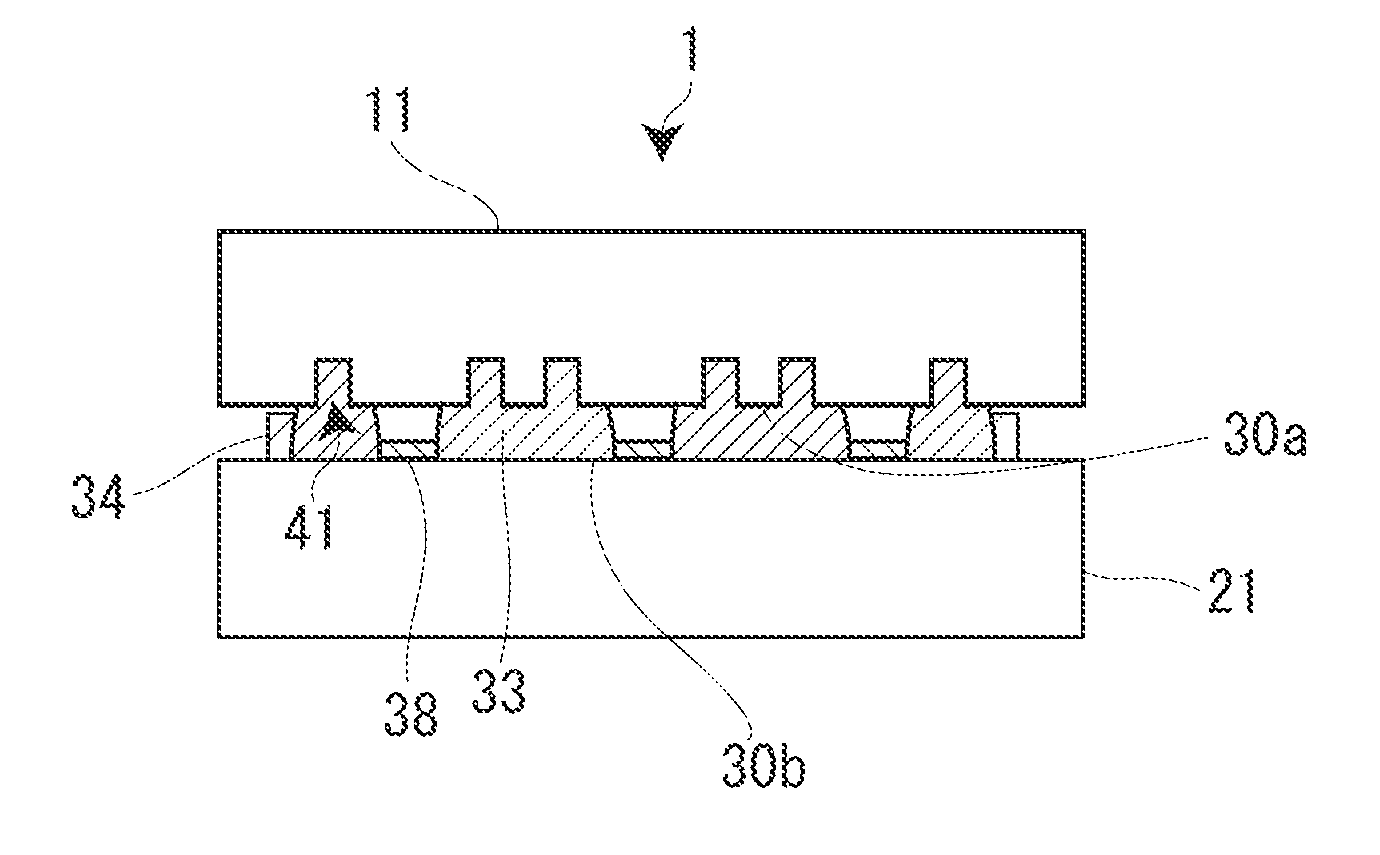

A method of bonding a semiconductor substrate has a step of pressurizing and heating to bond a substrate 11 with a substrate 12 by eutectic bonding in a state that an aluminum containing layer 31 and a germanium layer 32 between a bonding section 30a of the substrate 11 and a bonding section 30b of the substrate 21 are overlaid and an outer end 32a of the germanium layer 32 is receded inward with respect to an outer end 31a of the aluminum containing layer 31.
