Rotary conveyor comprising a gripper mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 26, 2013
Grant Date -
Feb 24, 2011
app pub date -
Apr 20, 2009
filing date -
Apr 23, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

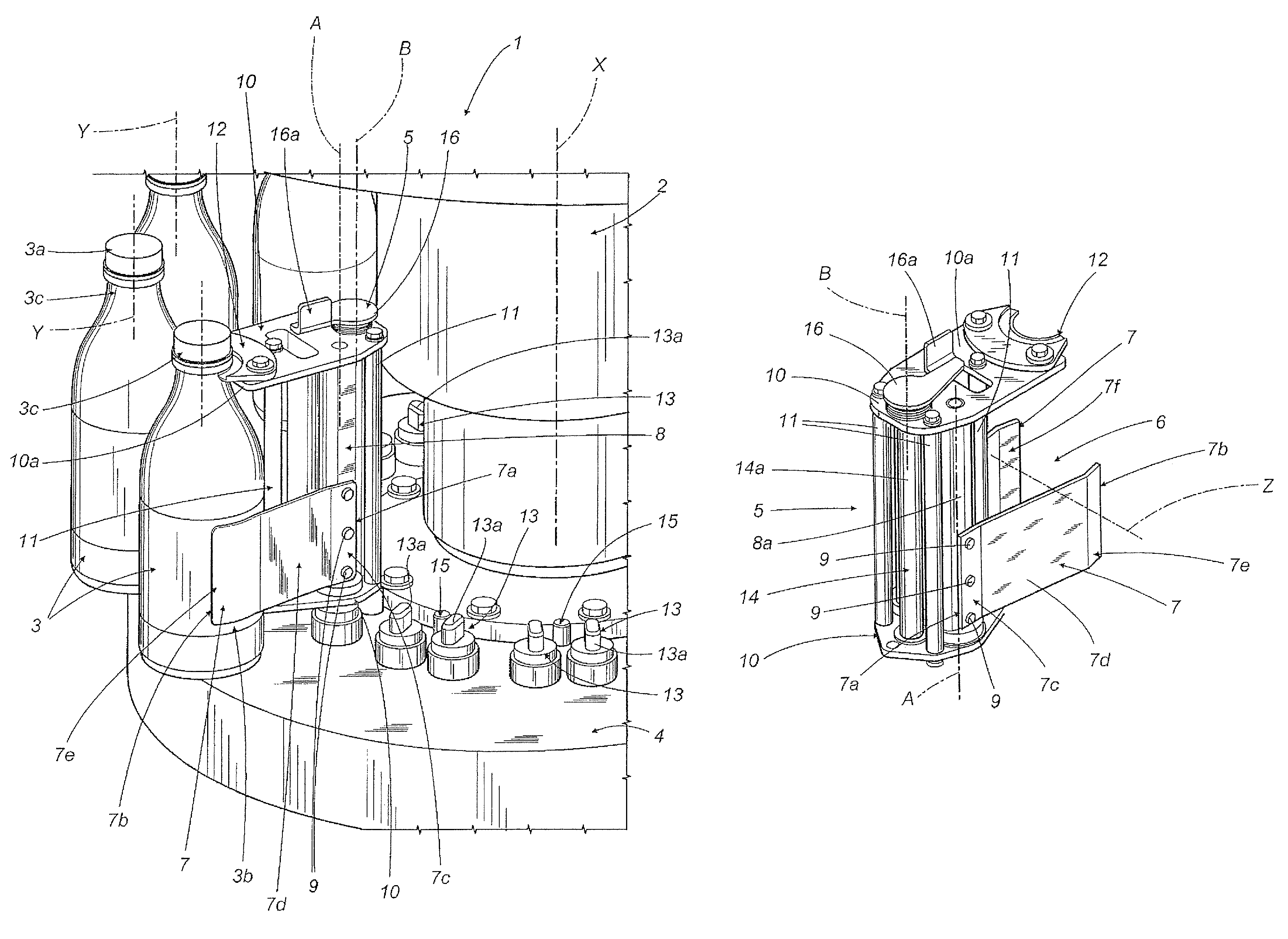

The components of a rotary conveyor (1) for a carousel type capping machine (2) include a center shaft aligned on a main axis (X) coinciding with the main axis of the machine (2), a carrier element (4) coupled to the shaft so that the two rotate as one about the main axis (X), and a set of gripper mechanisms (5) associated operationally with the carrier element (4), distributed circumferentially about the supporting shaft. Each gripper mechanism (5) is switchable between a first configuration, establishing a recess (6) in which to accommodate a respective container (3), a second configuration in which the container (3) is retained within the recess (6) by a predetermined gripping force, and a third configuration in which the container (3) is restrained by a gripping force greater than the force exerted in the second configuration, so as to counteract any unwanted rotation of the container (3) about its longitudinal axis (Y) that might be induced during the course of capping operations.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 26, 2025 |
