Vehicle auxiliary hydraulic system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 19, 2013
Grant Date -
Feb 3, 2011
app pub date -
Apr 1, 2009
filing date -
May 1, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

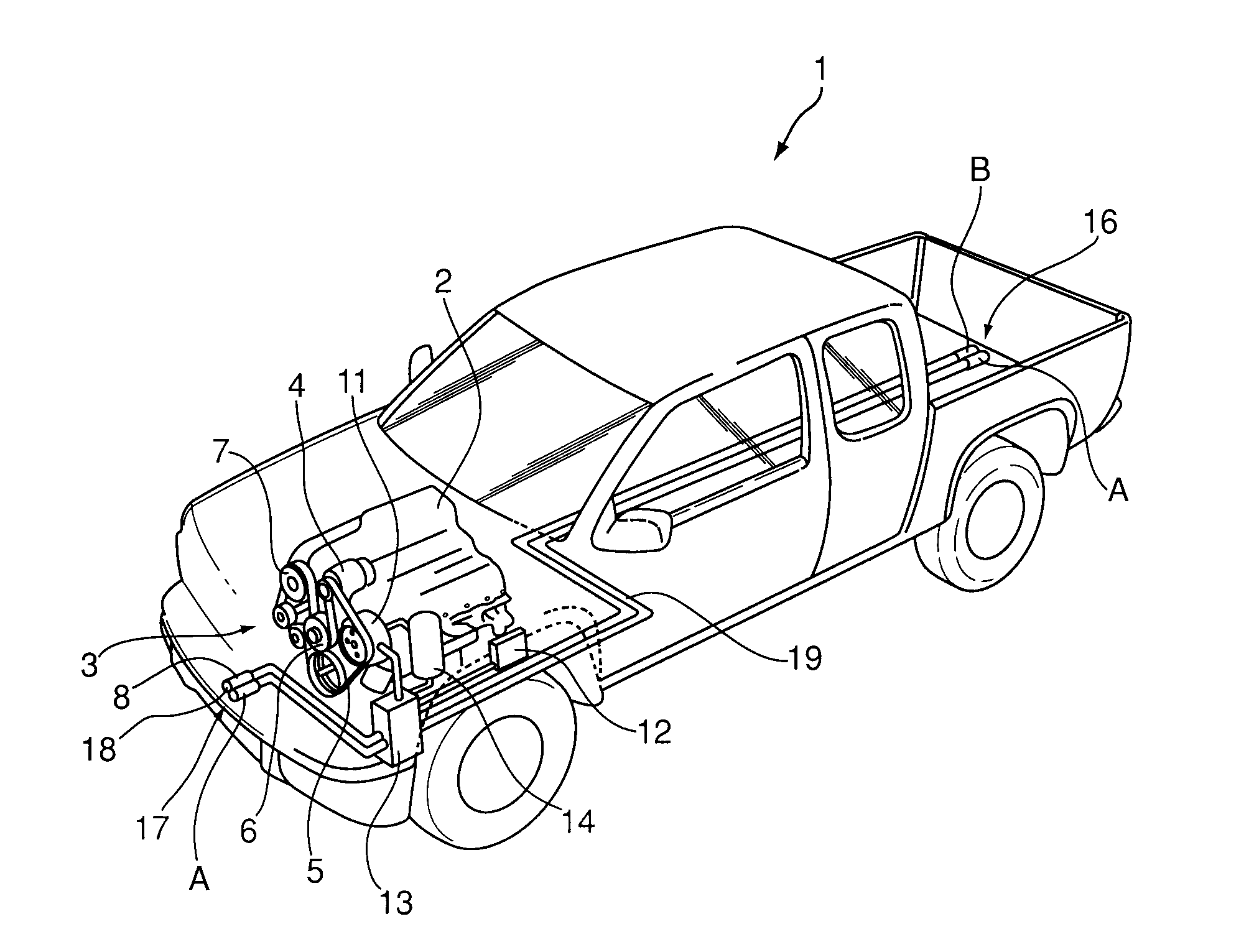

An auxiliary hydraulic system for vehicles, in particular pick-up trucks, is configured to supply hydraulic fluid under pressure to both on-board and off-board auxiliary equipment such as snow plows, dump boxes and wood splitters. The auxiliary hydraulic system includes a multi-piston fluid pump with electrically selectable poppet valves and an associated microprocessor control that facilitates variable output so that a desired proportional flow can be supplied to the auxiliary equipment. The system also provides a switchable valve arrangement for directional control and an arrangement of fluid distribution pipes and detachable couplings so that a range of different auxiliary equipment can be quickly and simply connected to the system. A simple user interface is also included so that the operator can command the auxiliary equipment from either within or in close proximity to the vehicle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- A01B Class
- 167 Applications Filed
- 131 Patents Issued To-Date
- 78.45 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A01B Class
- 6.29 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 19, 2025 |
