Safety mechanism protecting against inadvertent actuations of the minute repeater
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 19, 2013
Grant Date -
Sep 13, 2012
app pub date -
Mar 6, 2012
filing date -
Mar 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

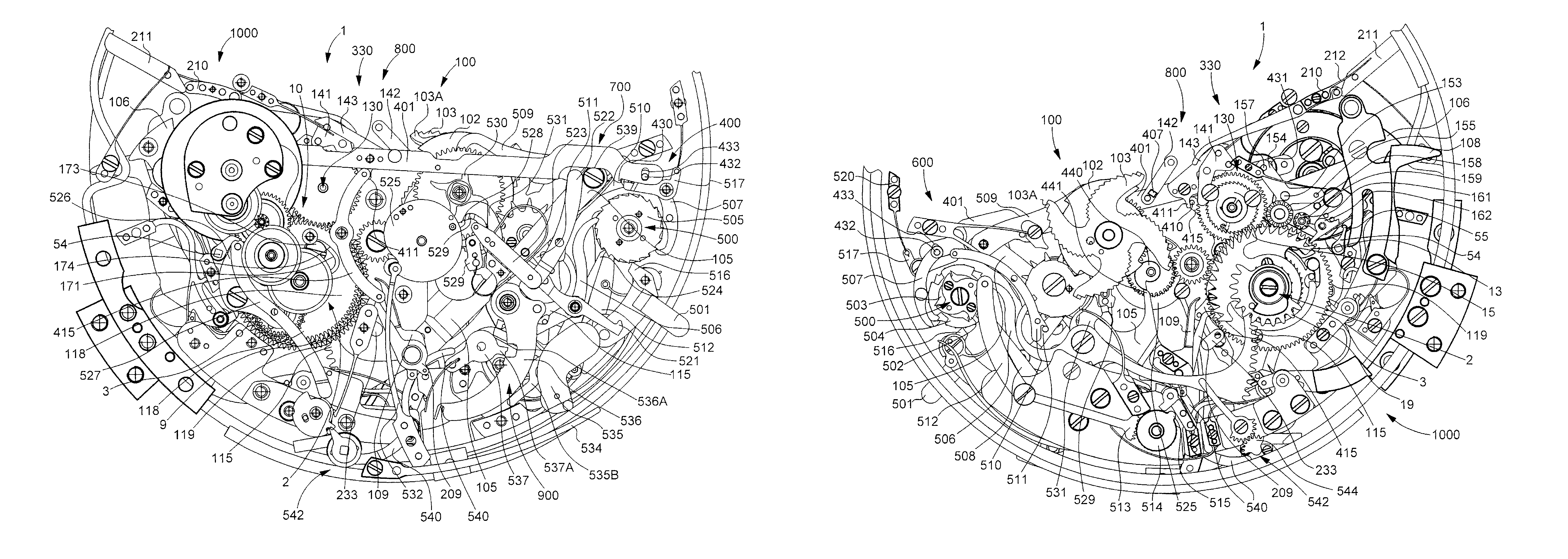

A minute repeater of a striking mechanism is normally actuated by pressing on a first lever. A release cam driven by a motion work in automatic operation pivots a release lever towards a ratchet of a striking mechanism unit of this striking mechanism. When a strike is operated, this striking unit drives a plate carrying a winding cam. The first lever controls the pivoting of a second lever included in a safety mechanism, when the minute repeater is set in motion, and this second lever includes a catch cooperating with a finger of a pivoting bolt returned by a spring, to prevent the minute repeater from being released again once set in motion. This bolt is only released at the end of the striking cycle performed by the minute repeater.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G04B Class
- 201 Applications Filed
- 184 Patents Issued To-Date
- 91.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 19, 2025 |
