Screw member
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 19, 2013
Grant Date -
Jun 10, 2010
app pub date -
Dec 2, 2009
filing date -
Dec 2, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

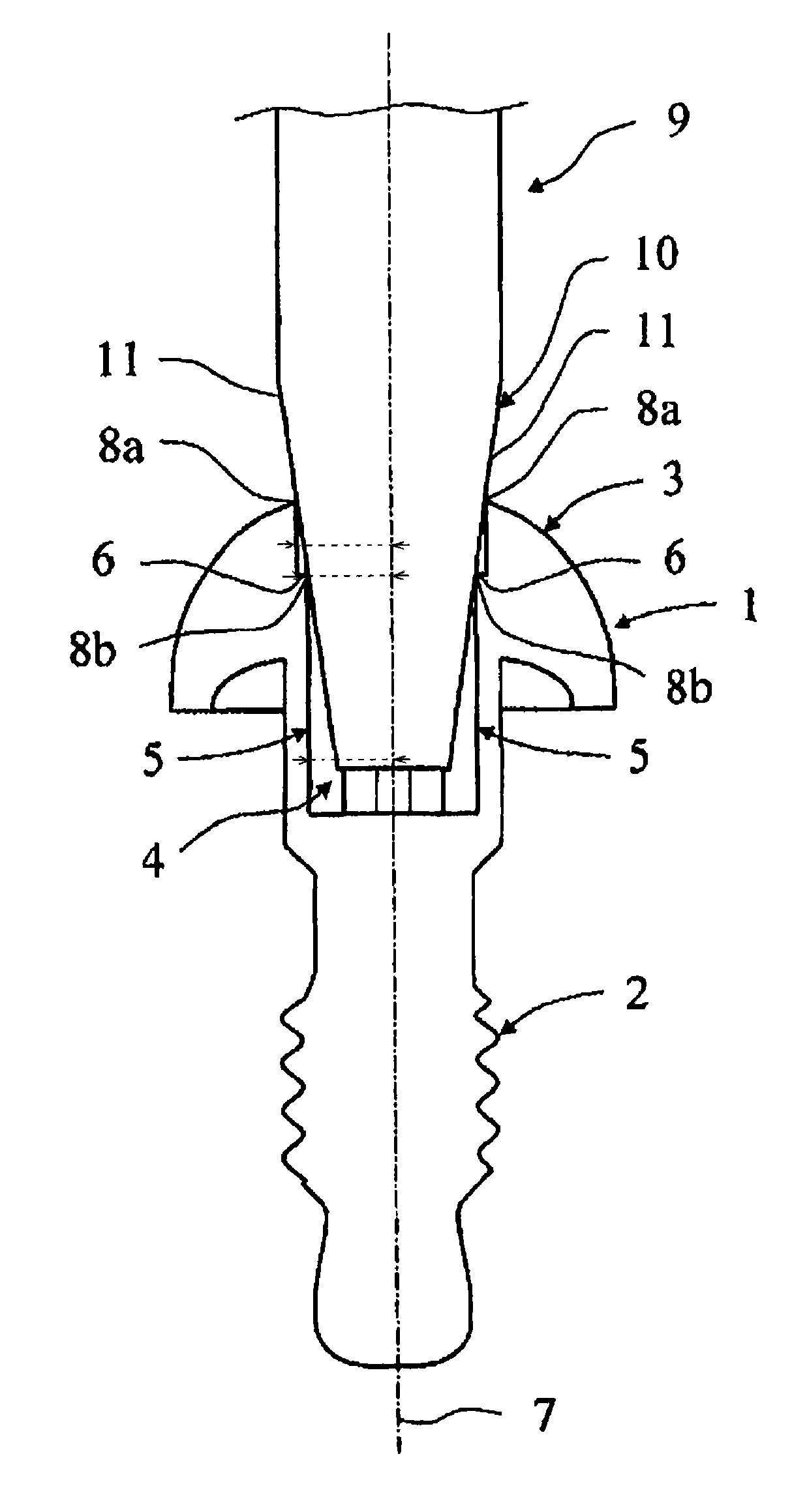

For certainly handling a screw member, a screw member 1 includes a male screw 2, and an inner peripheral face of the hole 4 has an engaging recessed part 5 to be engaged with an engaging projected part 11 of a tapered engaging part 10 of a rotary tool 9, and a stepped part 6, said inner peripheral face is parallel or make close to a center axis 7 of the screw member 1 from the head part 3 in a direction of the male screw and from the stepped part 6 in the direction of the male screw, and head part side end edge 8a and an end edge of the stepped part 8b to be engaged with the engaging projected part 11 have an angle of said inner peripheral face being 90±5 degrees with respect to the head part 3 and the stepped part 6.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 19, 2025 |
