Flow control system for a detention pond
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 19, 2013
Grant Date -
Nov 11, 2010
app pub date -
Jun 16, 2010
filing date -
May 11, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

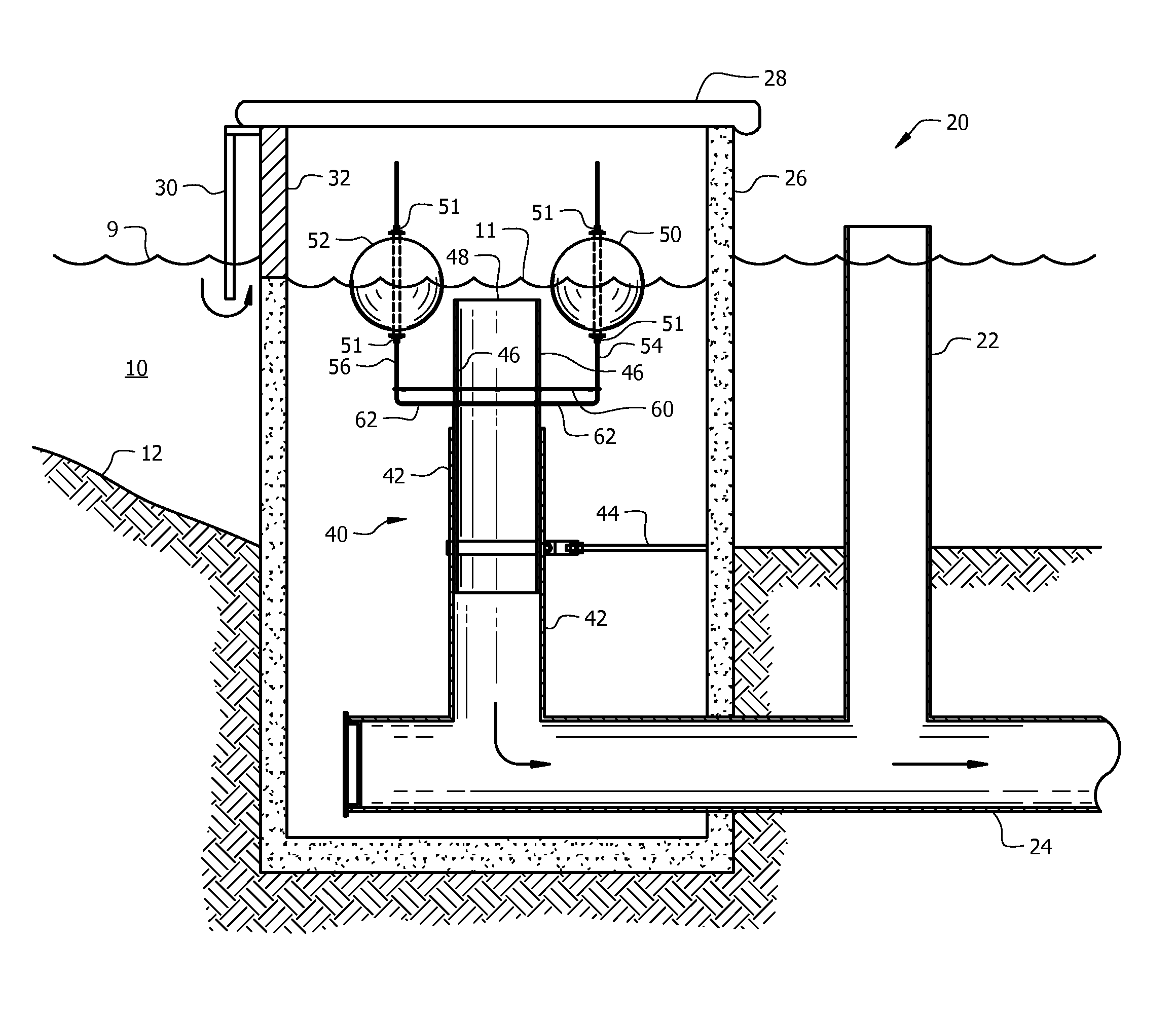

An application for a flow control system includes a movable riser in fluid communication and slideably engaged with a stationary riser, the stationary riser being in fluid communication with a drainage system. The movable riser is made buoyant by one or more attached floats such that, when the liquid level around the flow control system increases to a pre-determined level, the movable riser lifts due to the buoyancy of the float(s), thereby maintaining the pre-determined displacement as the water level continues to rise, yielding either a constant flow rate or a variable, predictable flow rate through the drainage system.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- E02B Class
- 143 Applications Filed
- 95 Patents Issued To-Date
- 66.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- E02B Class
- 10.89 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 19, 2025 |
