Key clamping device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 19, 2013
Grant Date -
Mar 4, 2010
app pub date -
Aug 27, 2009
filing date -
Aug 27, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

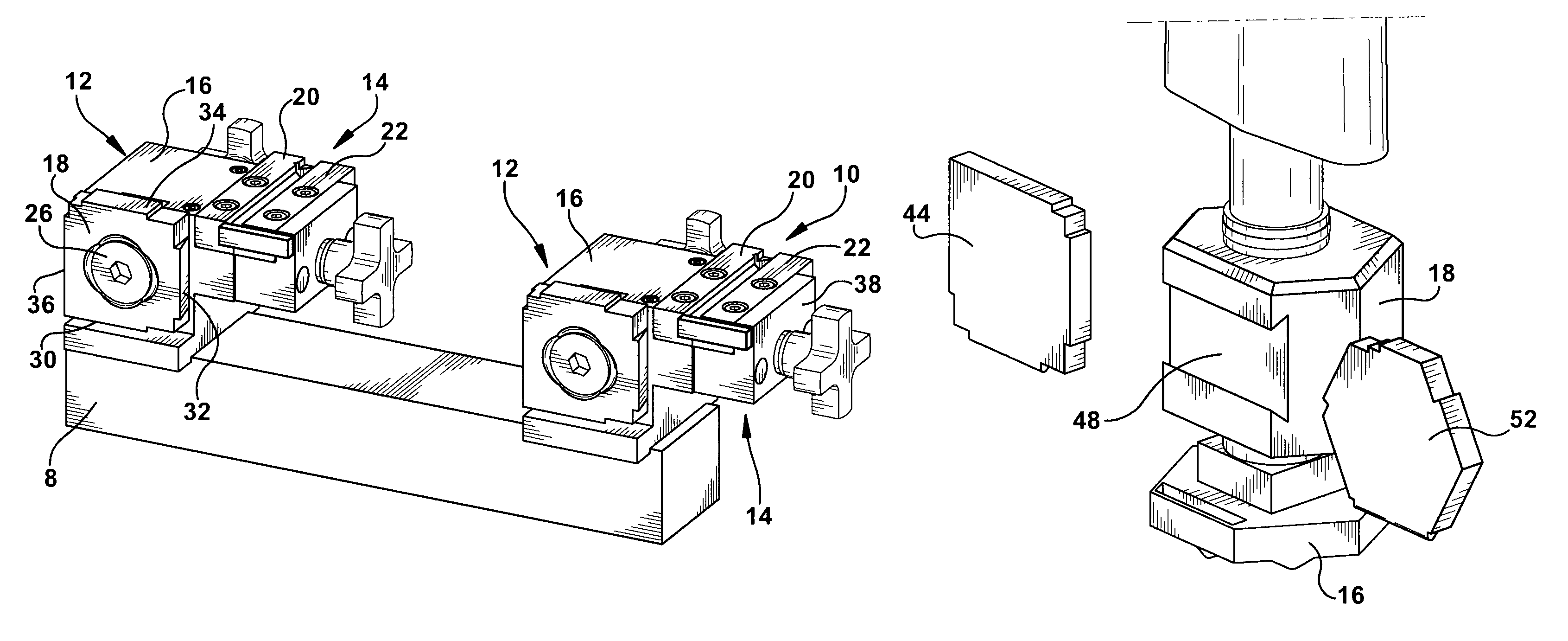

A clamping device comprising for clamping a plurality of key styles is provided. The clamping device includes a base block and a clamping block rotatably connected to the base block. The clamping block may include a plurality of sides configured to clamp a key between the clamping block and the base block. A sidewinder key clamp may be connected to the clamping device. The sidewinder key clamp may be capable of clamping a first style of key in a horizontal position and clamping a second style of key in a vertical position. The clamping device may further include a multi-faced block with a plurality sides rotatably connected to the clamping block. Each side of the multi-faced block may have a geometry configured to clamp a key between the multi-faced block and the base block.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- B23C Class
- 158 Applications Filed
- 101 Patents Issued To-Date
- 63.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 15 Citation Count
- B23C Class
- 69.23 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 19, 2025 |
