Polar modulator and method for generating a polar modulated signal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 12, 2013
Grant Date -
Oct 18, 2012
app pub date -
Jun 29, 2012
filing date -
May 2, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

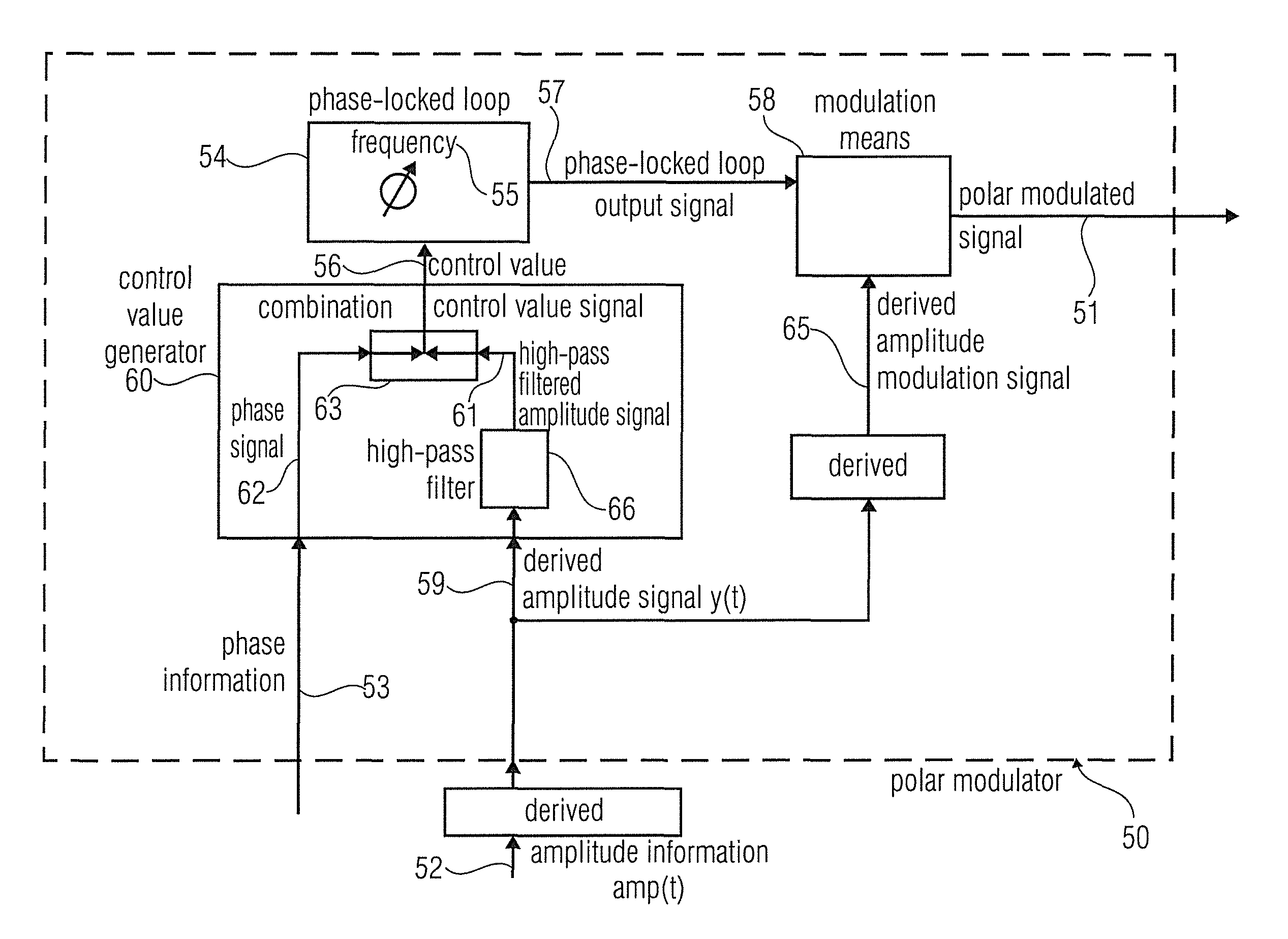

A polar modulator for generating a polar-modulated signal based on amplitude information and phase information includes a phase-locked loop which is implemented to enable a setting of a frequency depending on a control value to obtain a phase-locked loop output signal. The polar modulator further includes a modulation means which is implemented to combine an amplitude modulation signal derived from the amplitude information with the phase-locked loop output signal to generate the polar-modulated signal. The polar modulator further includes a control value generator which is implemented to high-pass filter an amplitude signal derived from the amplitude information, to obtain a high-pass filtered amplitude signal, wherein the control value generator is implemented to combine the high-pass filtered amplitude signal with a phase signal based on the phase information to generate the control value signal representing the control value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- H03L Class
- 753 Applications Filed
- 526 Patents Issued To-Date
- 69.86 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H03L Class
- 2.29 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 12, 2025 |
