Pointer type measuring instrument
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 12, 2013
Grant Date -
Jul 7, 2011
app pub date -
Aug 20, 2009
filing date -
Aug 28, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

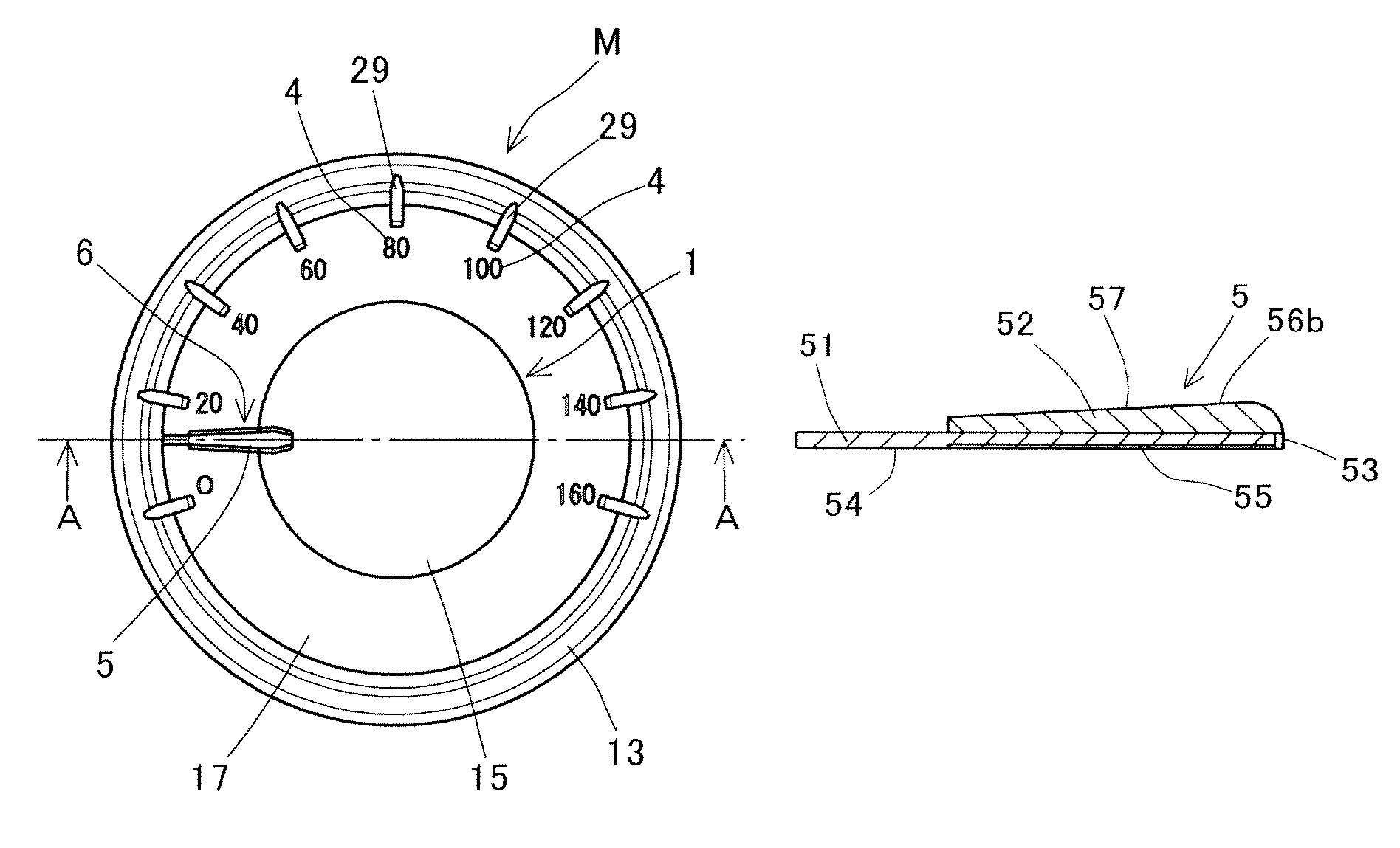

Disclosed is a pointer type measuring instrument of a novel look, in which an indication portion detours the outer circumference of a display portion and can be visually confirmed as if the indication portion is floating above the display portion. The pointer type measuring instrument (M) comprises a display means (1), a drive body (2) mounted on the back side of the display means (1), an arm portion (3) mounted on the output shaft (26) of the drive body (2) and detouring the outer circumference of the display means (1), an indicating portion (5) extending from the arm portion (3) toward the center of the display means (1) and indicating an indicator portion (4) disposed on the display means (1), and a first light source (7) mounted on the arm portion (3) or the indicating portion (5) and causing the indicating portion (5) to glow.
