Bicycle stem with an adjustable tilt
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 12, 2013
Grant Date -
May 12, 2011
app pub date -
Apr 27, 2010
filing date -
Apr 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

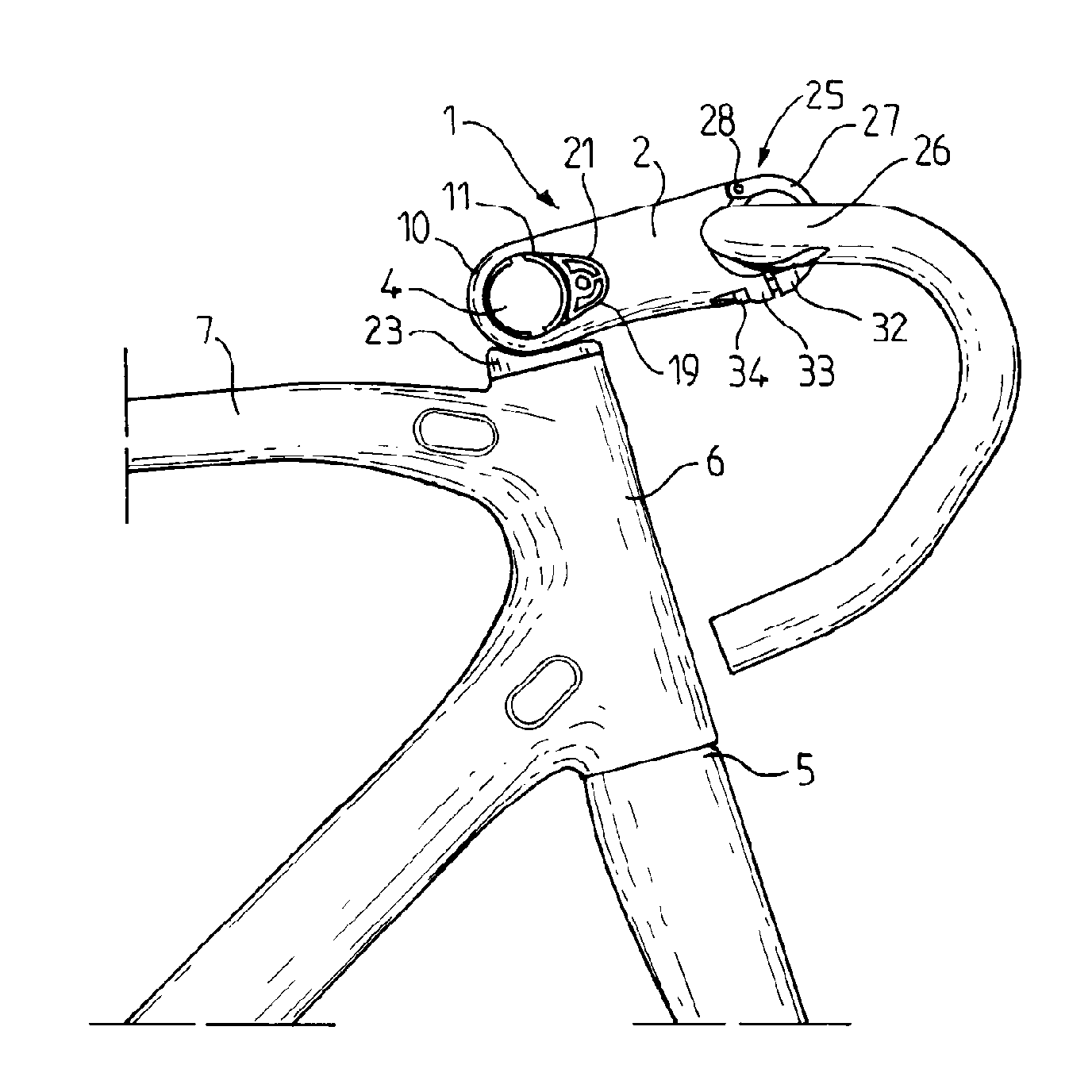

The stem (1) is provided with elements (3) for attaching the stem to the upper end of a pivoting tube and elements (25) for attaching a handlebar to the stem. The rear attachment elements (3) include articulation members (8) that make it possible to adjust the tilt of the stem (1) and tightening elements (10, 11, 19, 21) that make it possible to lock the stem in an angular position. The tightening elements are of a semi-cylindrical shape extending crosswise into a housing (12) that has an opening (12′) downward that makes it possible to insert the pivoting tube (4). The tightening elements at their upper and lower ends are provided with a receiving recess (13, 14) that is adapted to the pivoting tube and extend crosswise in the housing that has a cylindrical wall (15) cooperating with the first tightening element (10) so as to define the articulation members.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B62K Class
- 236 Applications Filed
- 149 Patents Issued To-Date
- 63.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B62K Class
- 0.87 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 12, 2025 |
