Electric field tuning of PbS quantum dots for high efficiency solar cell application
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 5, 2013
Grant Date -
N/A
app pub date -
Aug 24, 2010
filing date -
Aug 24, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

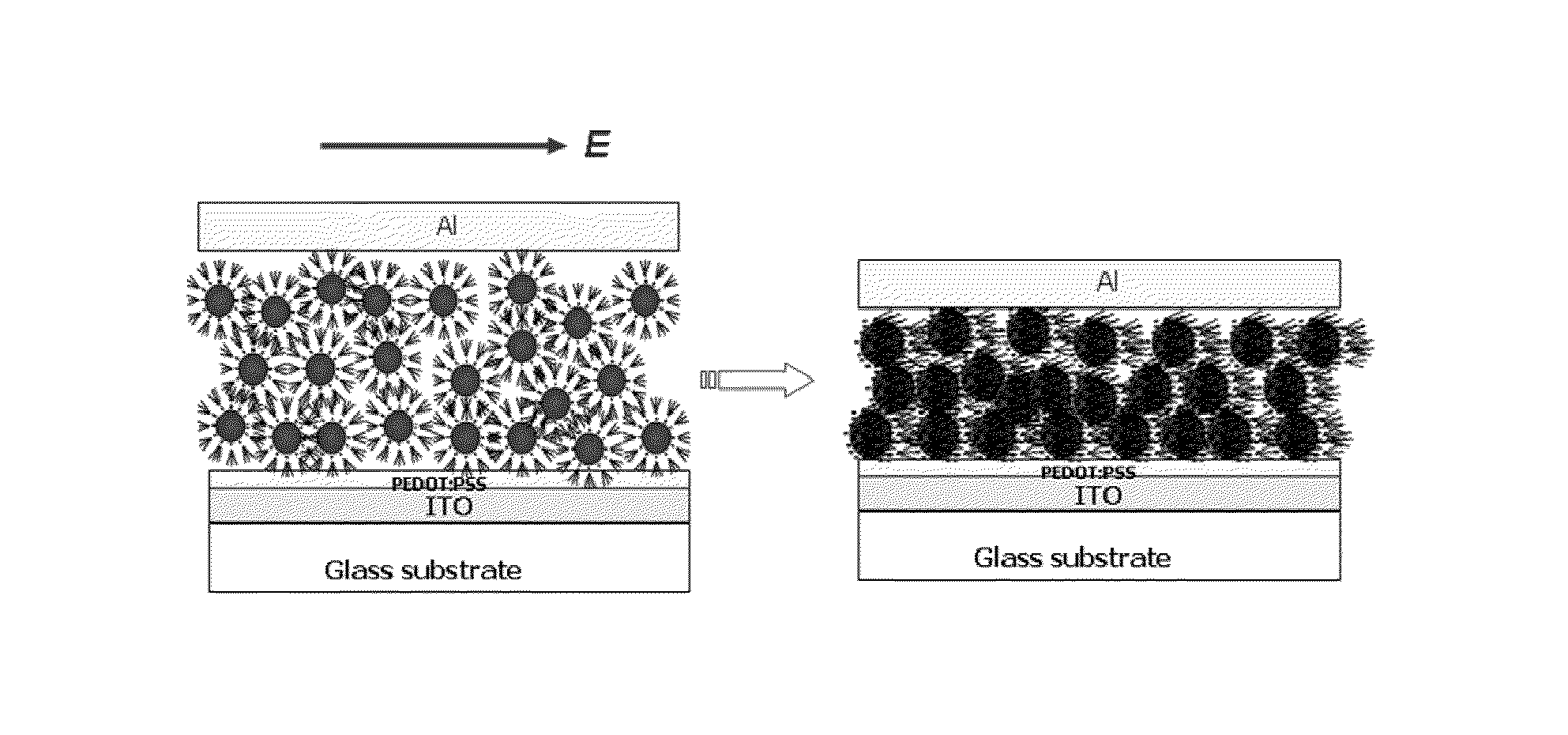

A thin film and a method of making a thin film. The thin film comprises a patterned substrate, a smooth film of electric field tuned quantum dots solution positioned on the patterned substrate, and a thin layer of metal positioned on the thin film. The method begins by drop-casting a quantum dots solution onto a patterned substrate to create a thin film. While the quantum dots solution is drying, a linearly increasing electric filed is applied. The thin film is then placed in a deposition chamber and a thin layer of metal is deposited onto the thin film. Also included are a method of measuring the photoinduced charge transfer (PCT) rate in a quantum dot nanocomposite film and methods of forming a Shottky barrier on a transparent ITO electrode of a quantum dot film.
