Method and device for laying pipelines in the ground
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 29, 2013
Grant Date -
Jun 7, 2012
app pub date -
Dec 20, 2007
filing date -
Dec 29, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

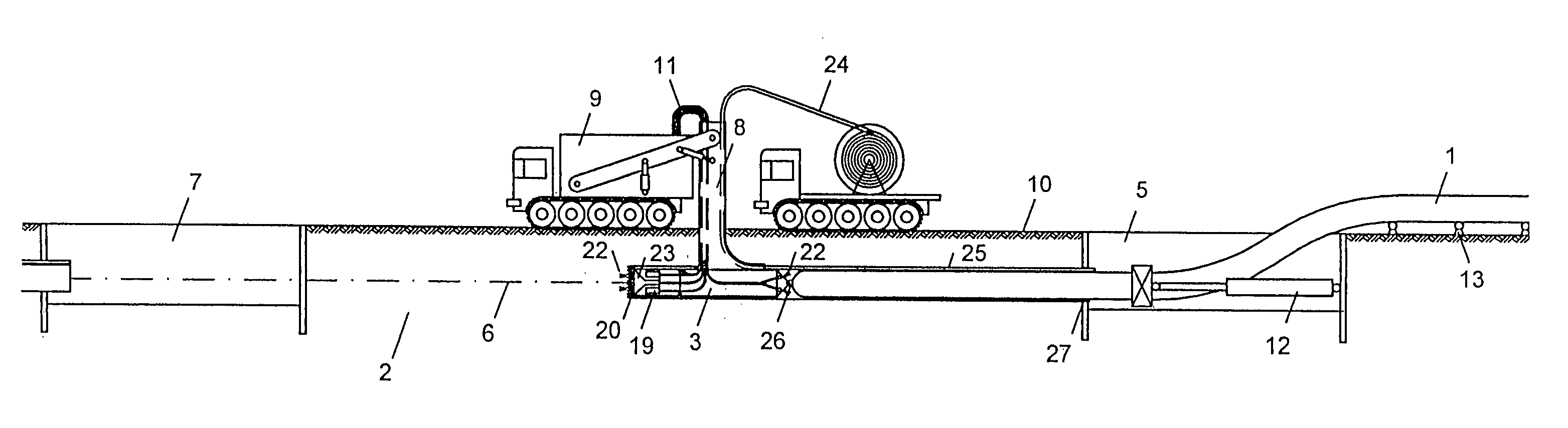

In the case of a method for laying pipelines in the ground, a drill-hole is produced along a laying line, from a starting pit to a target pit, by a drilling head at the start of a pipeline, the drilling head being connected to a laying vehicle on the ground surface via a narrow vertical connecting device. The soil dislodged by the drilling head is removed from the drill-hole and conveyed to the surface. The force required for the drilling and laying operation is applied by the laying vehicle and/or by a feed device in the starting pit.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2007 Application Filing Year
- F16L Class
- 931 Applications Filed
- 565 Patents Issued To-Date
- 60.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16L Class
- 5.95 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 29, 2025 |
