US Patent No: 8567152

Cushion material fastening structure for interior trim part

---

Abstract

---

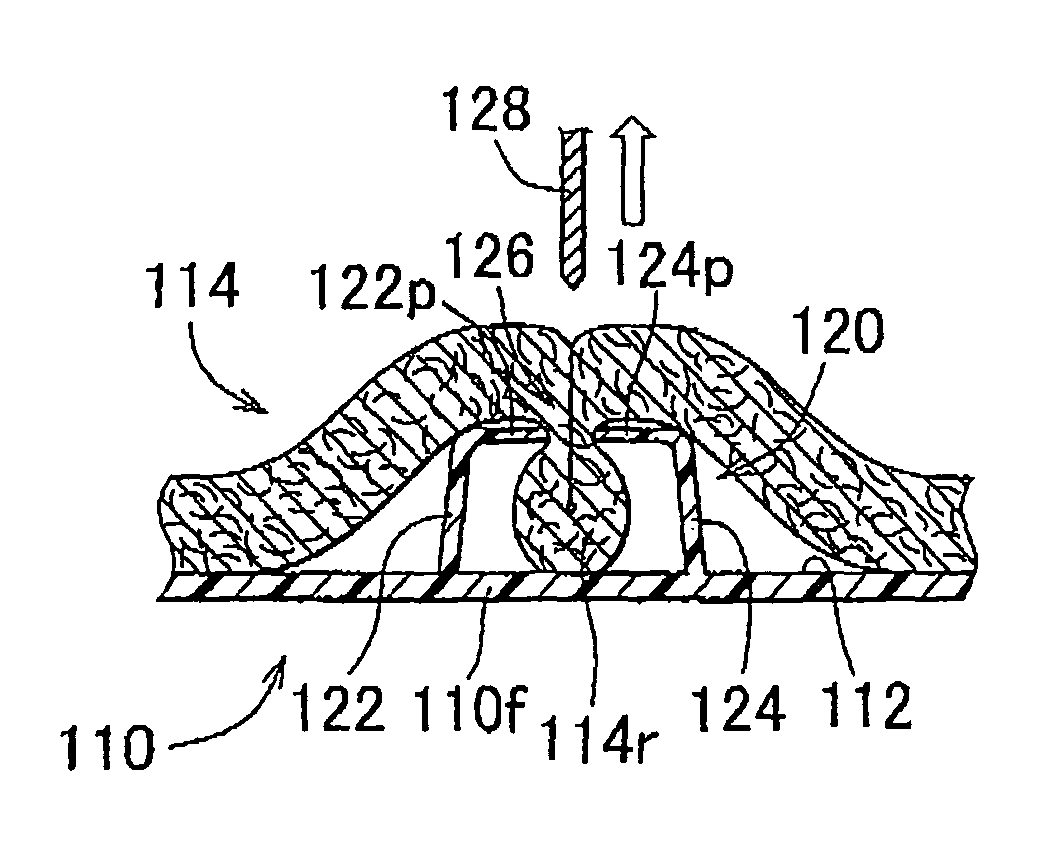

A cushion material fastening structure includes: an interior trim part, made of synthetic resin, that is provided with an opening and an elastic deformation portion at least part of which projects inward in the opening; and a cushion material, having a sheet shape, that is caught by the elastic deformation portion by being plunged into the opening while elastically deforming the elastic deformation portion, whereby the cushion material is fastened to the interior trim part.

---



---
