Motor-compressor unit mounting arrangement for compressors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 29, 2013
Grant Date -
Jun 21, 2012
app pub date -
Feb 23, 2012
filing date -
Jan 20, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

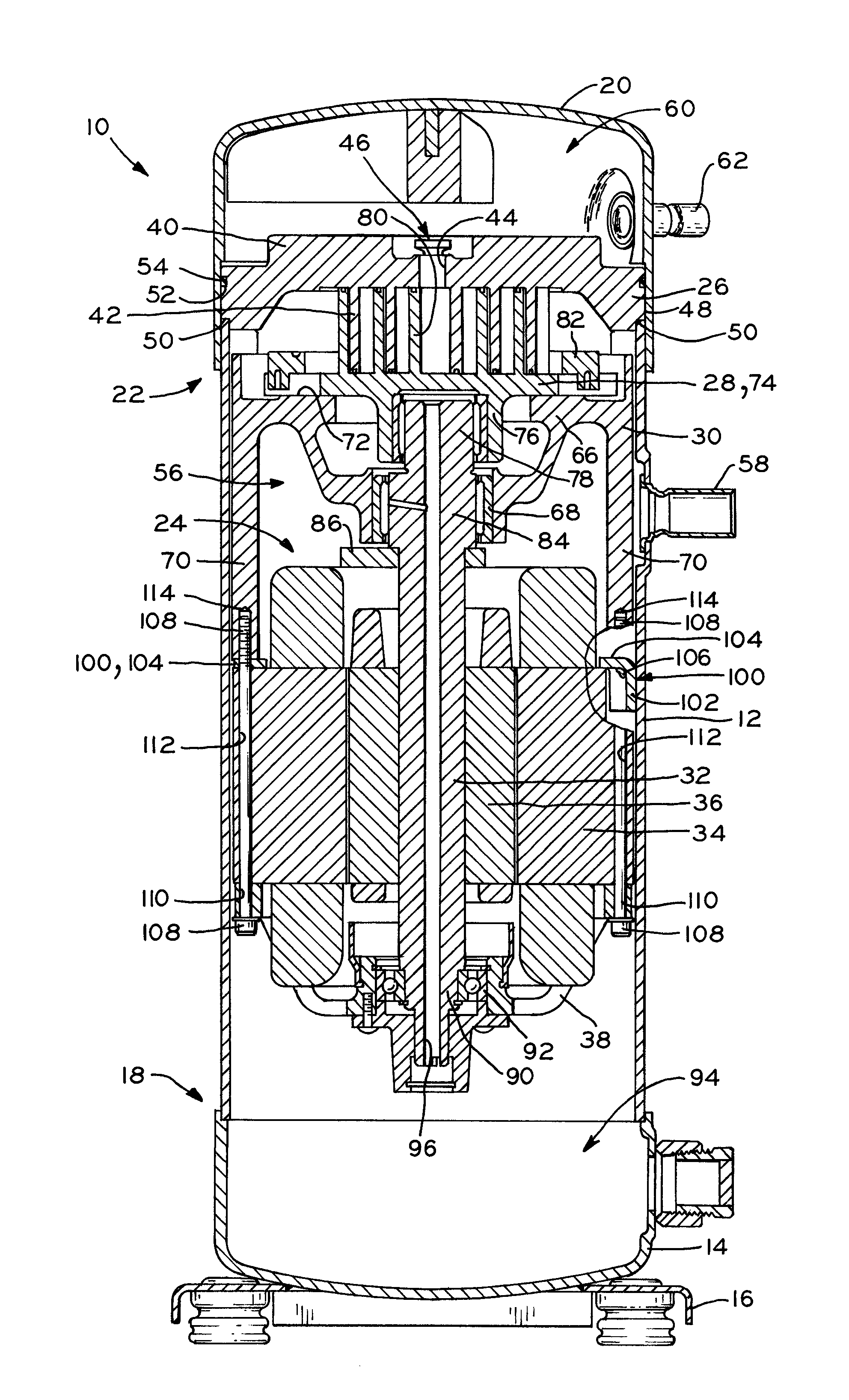

A method of assembling a compressor, including assembling, first as a subassembly external of the compressor housing, portions of the motor-compressor unit, including a crankcase, mount brackets, stator, outboard bearing assembly, and drive shaft. Thereafter, the motor-compressor unit subassembly is inserted into a first end of the housing, and the housing is shrink-fit around the subassembly. The mount brackets may then be welded to the interior surface of the housing. Once the mount brackets are welded to the housing, the remainder of the components of the motor-compressor unit, including the orbiting scroll member, the Oldham coupling, and the fixed scroll member, are then assembled to the motor-compressor unit subassembly and the housing through a second end of the housing opposite the first end, followed by welding the top and bottom caps to the housing.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23P Class
- 0 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 29, 2025 |
