Wafer fabrication process

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 8562749
APP PUB NO 20120231397A1
SERIAL NO

13475997

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

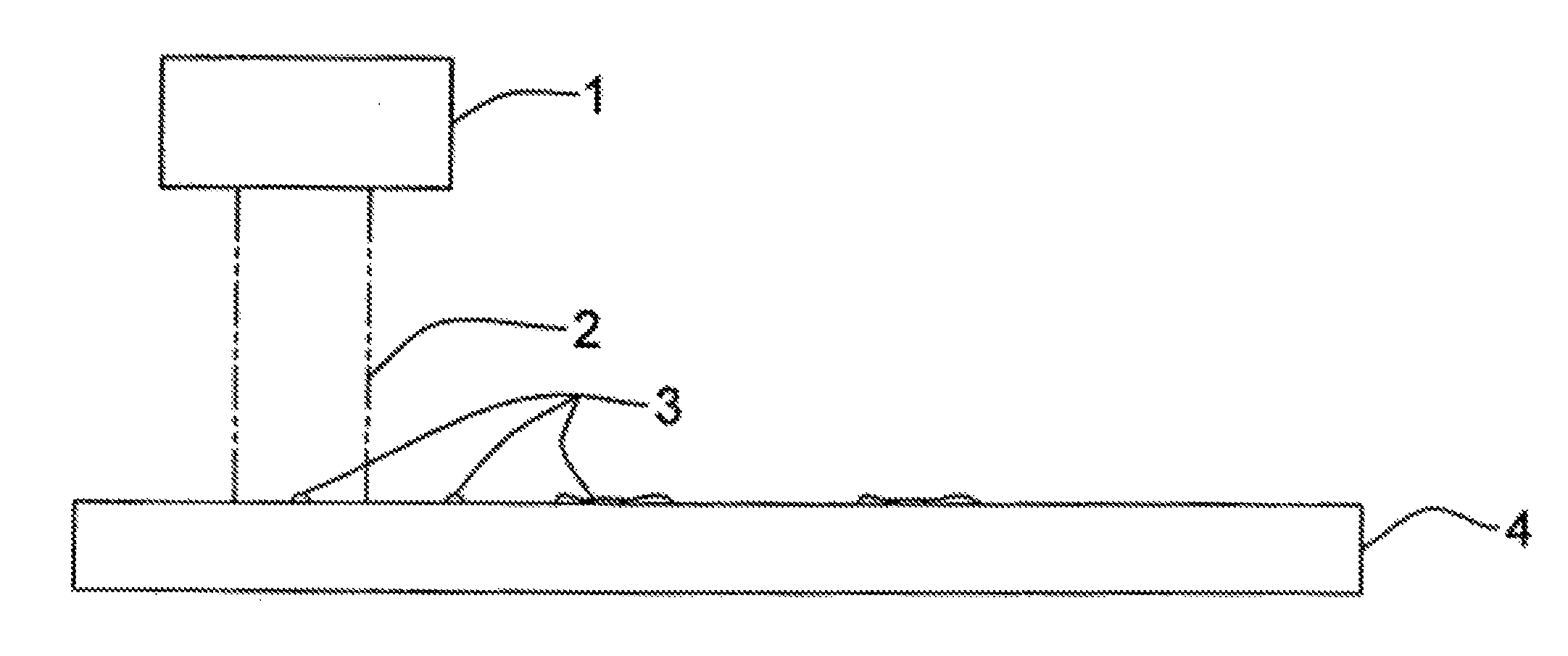

A wafer fabrication process with removal of haze formation from a pellicalized photomask surface is provided. The wafer fabrication process includes pre-print wafer processing, wafer print processing using at least one photomask having a pellicle, photomask clean processing, wafer print processing using the photomask, and post-print wafer processing. The photomask clean processing step includes directing a laser through the pellicle towards an inorganic particle disposed on the photomask to remove the particle from the photomask by thermal decomposition.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
BRUKER NANO INC112 ROBIN HILL ROAD SANTA BARBARA CA 93117
