Systems for treating contaminated materials
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 22, 2013
Issued Date -
N/A
app pub date -
Feb 23, 2012
filing date -
Jul 29, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

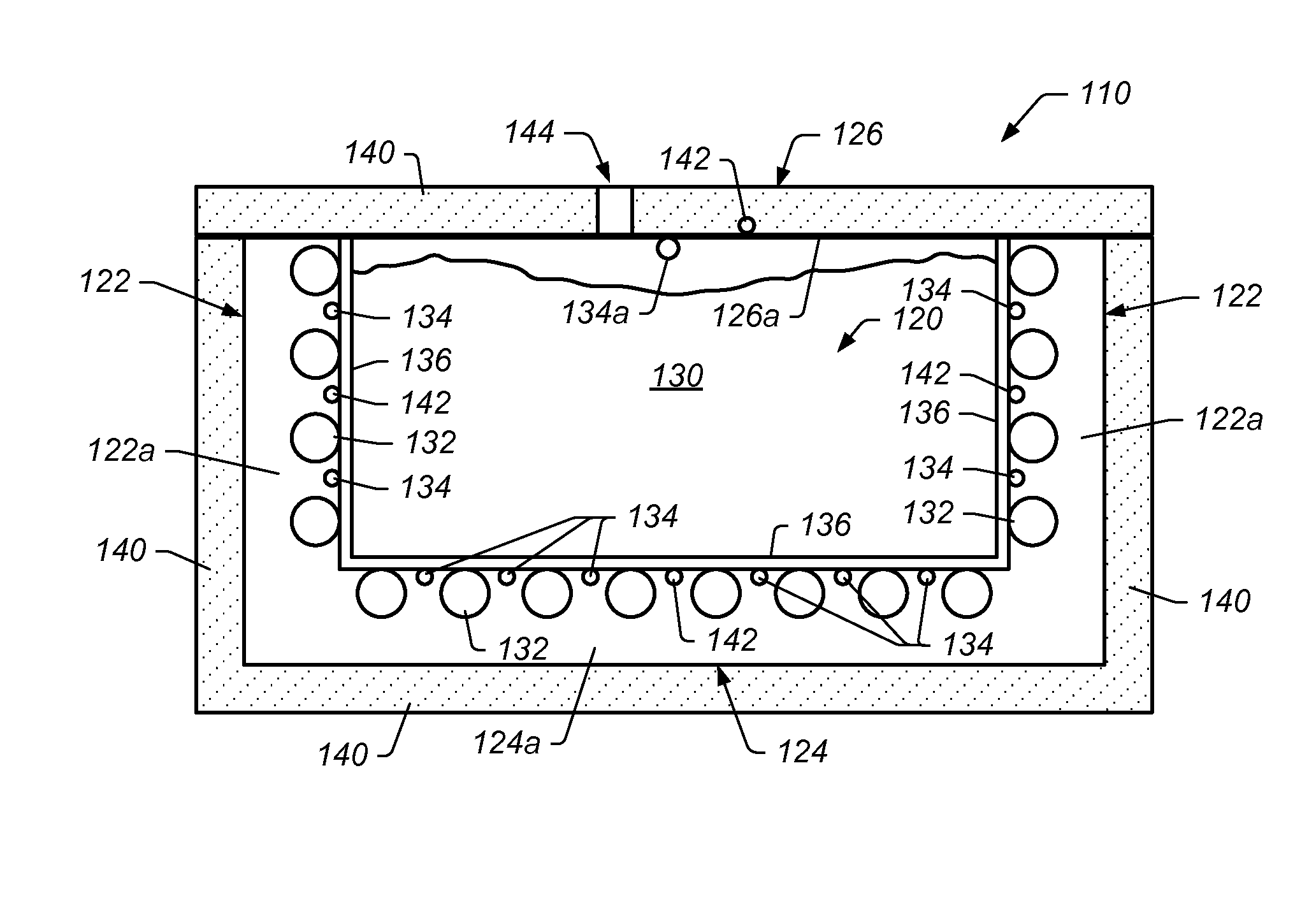

Systems for treating contaminated soil are described herein. One system includes a soil chamber that includes one or more walls and at least one floor; at least one heater attached to or inside of at least one of the walls; and at least one heater coupled to or in the floor. Two or more of the walls enclose an interior of the soil chamber. At least one of the walls is configured to move between a closed position during heating of the soil chamber, and an open position that allows a soil moving vehicle to access an interior of the soil chamber to provide or remove soil to and from the soil chamber. At least one wall heater and at least one floor heater provide heat that transfers from the heaters to the contaminated soil in the soil chamber.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B09C Class
- 40 Applications Filed
- 37 Patents Issued To-Date
- 92.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B09C Class
- 0 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 22, 2025 |
