Material hardness distribution display system and material hardness distribution display method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 15, 2013
Grant Date -
Sep 1, 2011
app pub date -
Nov 13, 2009
filing date -
Nov 13, 2008
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

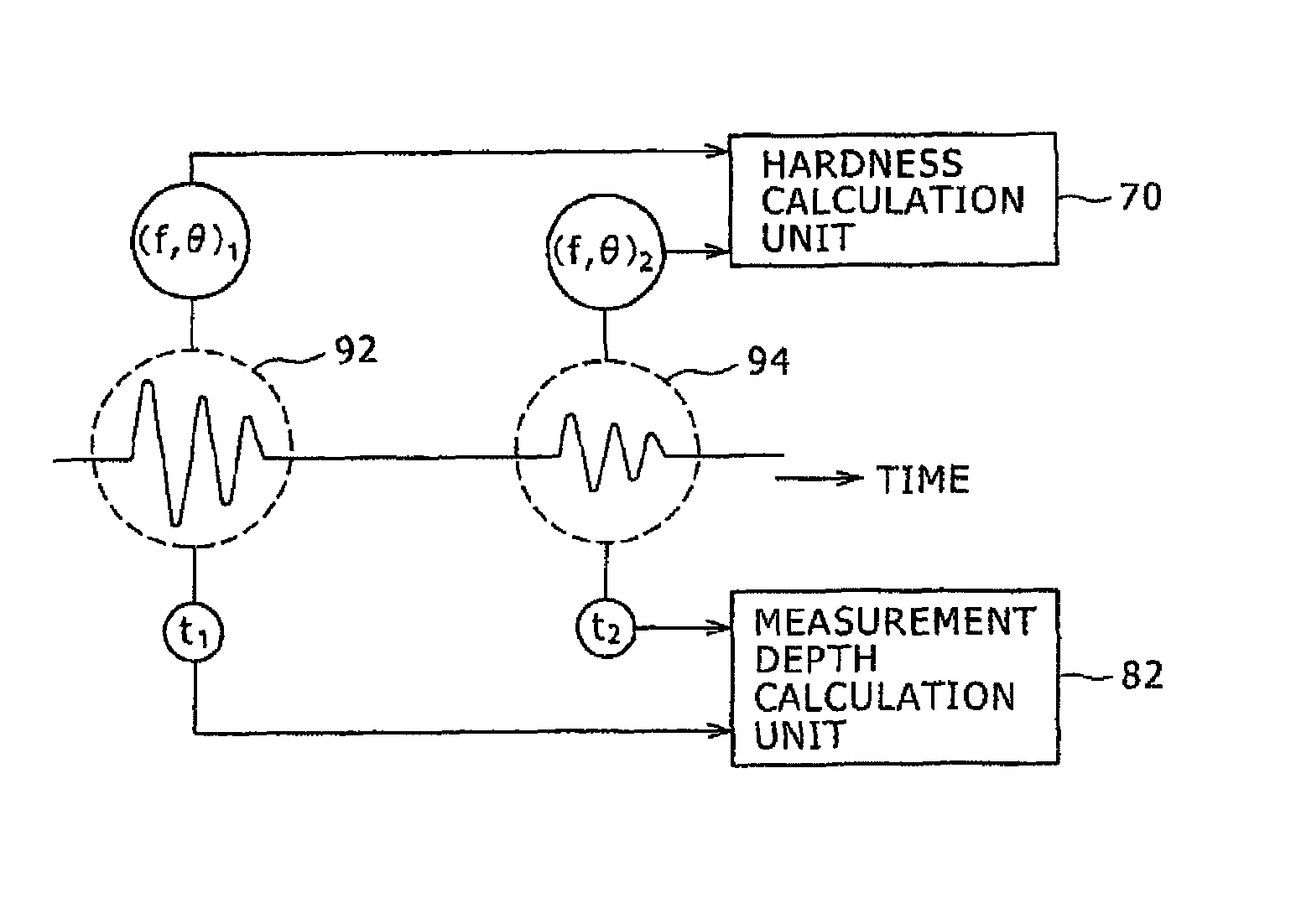

A material hardness distribution display system (10) includes a probe unit (20) in which a plurality of probe elements (22) are two-dimensionally arranged. Each of the probe elements (22) has an oscillator (26) for introducing oscillation into a biological tissue and an oscillation detection sensor (28) which detects a reflected wave. The probe elements (22) are successively selected by a switch circuit (50) and connected to a hardness calculation unit (70) and a measurement depth calculation unit (82). The hardness calculation unit (70) executes a frequency component analysis for an incident wave signal to the oscillator (26) and a reflected wave signal from the oscillation detection sensor (28) to calculate the hardness of the biological tissue on the basis of the analysis results. The measurement depth calculation unit (82) calculates a measurement depth inside the biological tissue at a position where the hardness has been measured, on the basis of a temporal position of the incident wave signal and a temporal position of the reflected wave signal. They are correlated to the respective probe elements (22).
