Semiconductor device having gate insulating film including high dielectric material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 15, 2013
Grant Date -
Jul 14, 2011
app pub date -
Jan 12, 2011
filing date -
Jan 13, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

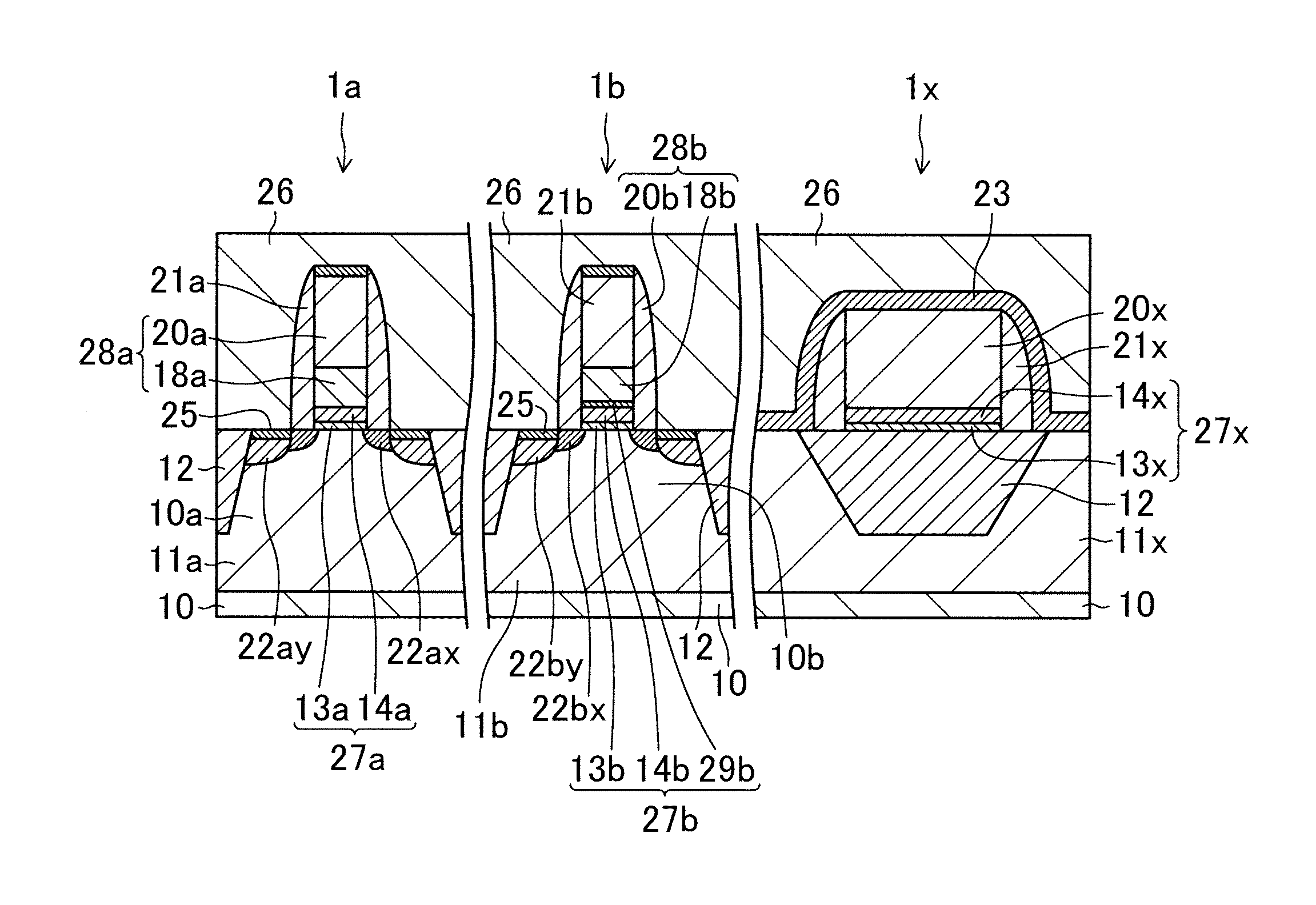

A semiconductor device includes: a first MIS transistor of a first conductivity type having a first active region as a region of a semiconductor substrate surrounded by an element isolation region formed in an upper portion of the semiconductor substrate, a first gate insulating film having a first high dielectric film formed on the first active region, and a first gate electrode formed on the first gate insulating film; and a resistance element having a second high dielectric film formed on the element isolation region and a resistance layer made of silicon formed on the second high dielectric film. The first high dielectric film and the second high dielectric film include the same high dielectric material, and the first high dielectric film includes a first adjustment metal, but the second high dielectric film does not include the first adjustment metal.
