Sample cell for fluorescent X-ray analysis and sample cell assembly instrument
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 8, 2013
Grant Date -
Apr 14, 2011
app pub date -
Oct 7, 2010
filing date -
Oct 9, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

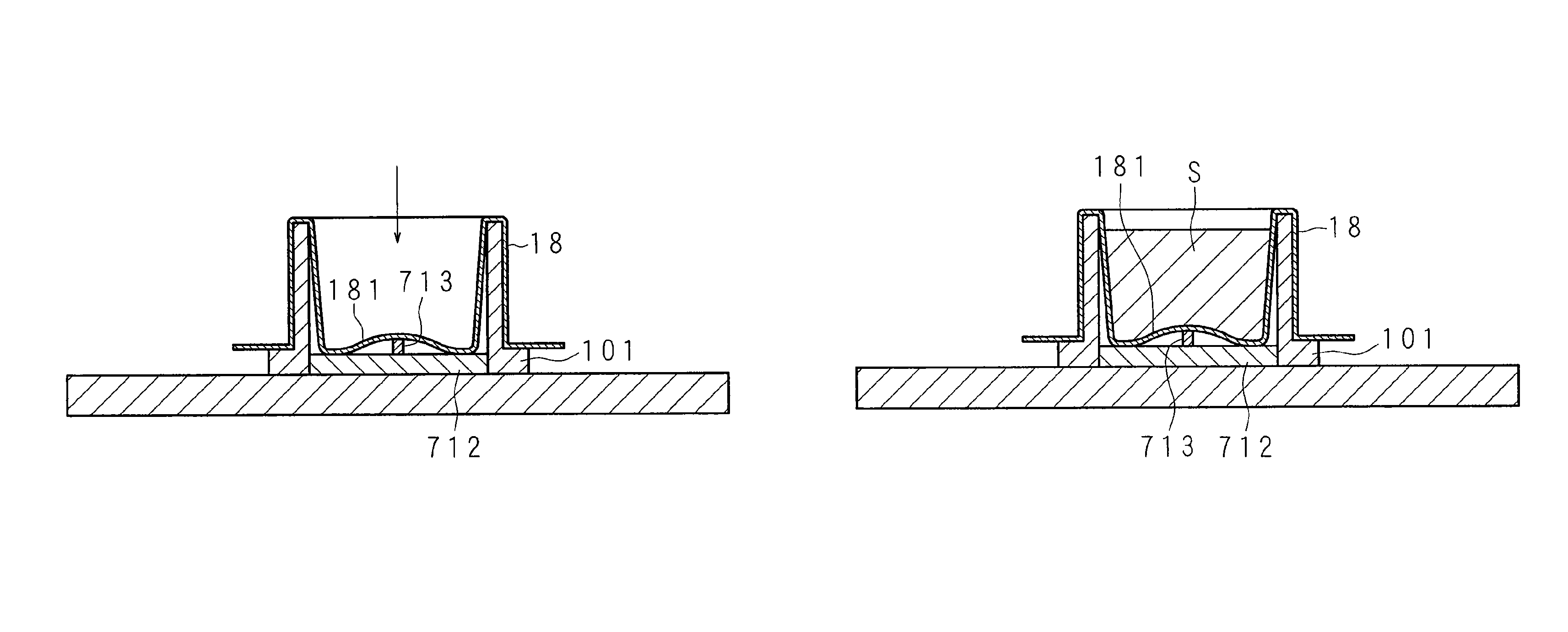

In a sample cell that is sealed with an X-ray transmission sheet after a sample such as a liquid fuel or the like is contained therein, when an internal pressure is increased, a cup end surface is deformed so as to increase an internal capacity of the sample cell before the X-ray transmission sheet serving as a window part is expanded. The cup end surface is formed by folding a film-like material and, when the internal pressure of the sample cell is increased, the cup end surface is unfolded outwardly of the sample cell to increase the internal capacity of the sample cell. The increase in pressure is relieved by the increase in capacity, and the expansion of the X-ray transmission sheet is thereby prevented.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- G01N Class
- 6444 Applications Filed
- 4361 Patents Issued To-Date
- 67.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 8, 2025 |
