Stirring control method and stirring control device for a combustion apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 8, 2013
Grant Date -
Oct 4, 2012
app pub date -
Nov 21, 2011
filing date -
Apr 1, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

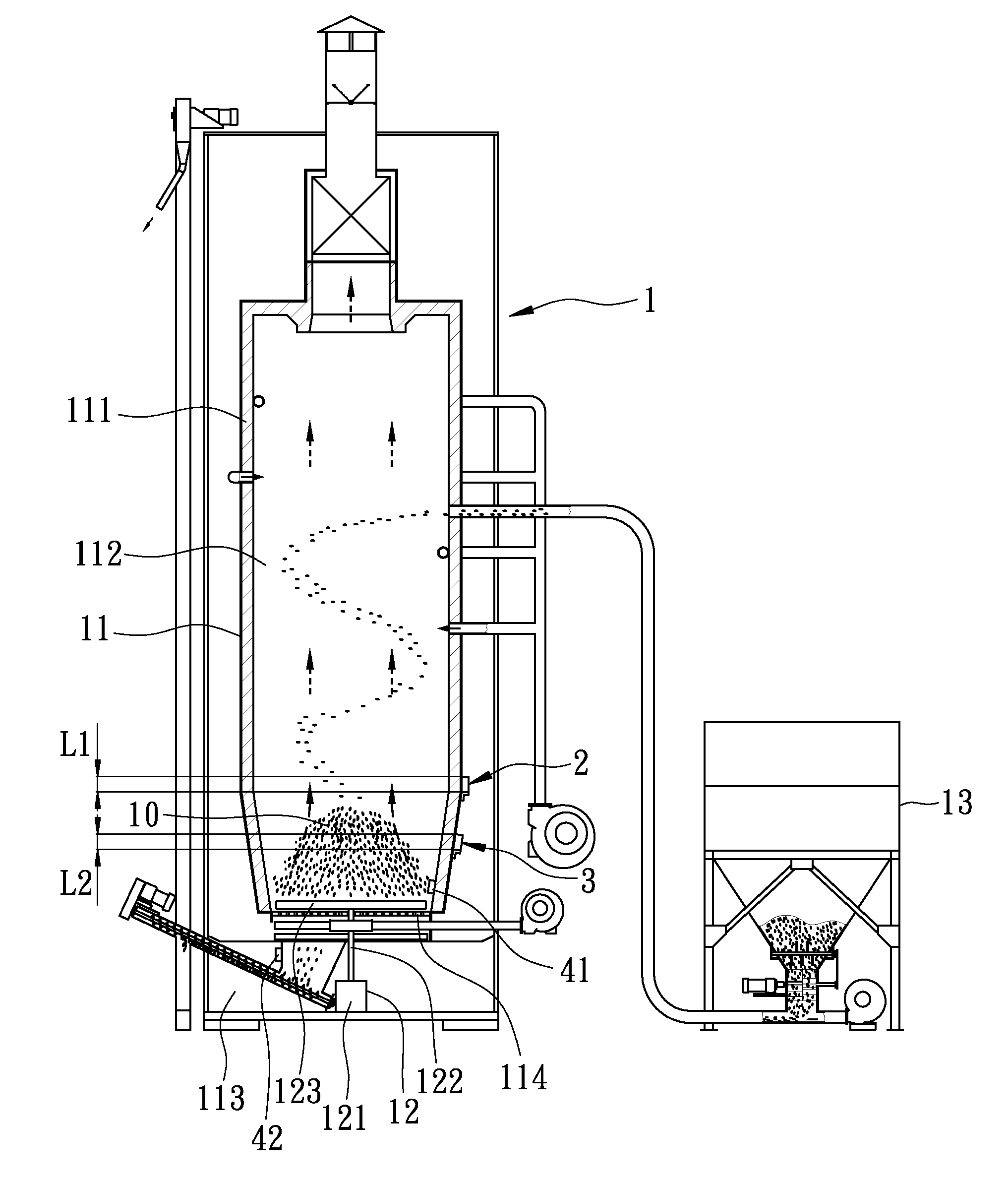

A stirring control method is adapted for a combustion apparatus which includes a furnace for burning fuel material, and a stirring member rotatably disposed in the furnace for stirring the fuel material and ash resulting from burning of the fuel material. The stirring control method includes: controlling rotation of the stirring member at an initial rotational speed; determining whether a height of the fuel material reaches an upper detection range; generating an indication when the height of the fuel material reaches the upper detection range; determining whether the height of the fuel material reaches a lower detection range when the height of the fuel material does not reach the upper detection range; and controlling rotation of the stirring member at a rotational speed higher than the initial rotational speed when the height of the fuel material reaches the lower detection range.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F23G Class
- 62 Applications Filed
- 55 Patents Issued To-Date
- 88.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F23G Class
- 8.57 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 8, 2025 |
