Face mask and goggle system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 8, 2013
Grant Date -
Mar 15, 2012
app pub date -
Sep 2, 2011
filing date -
May 19, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

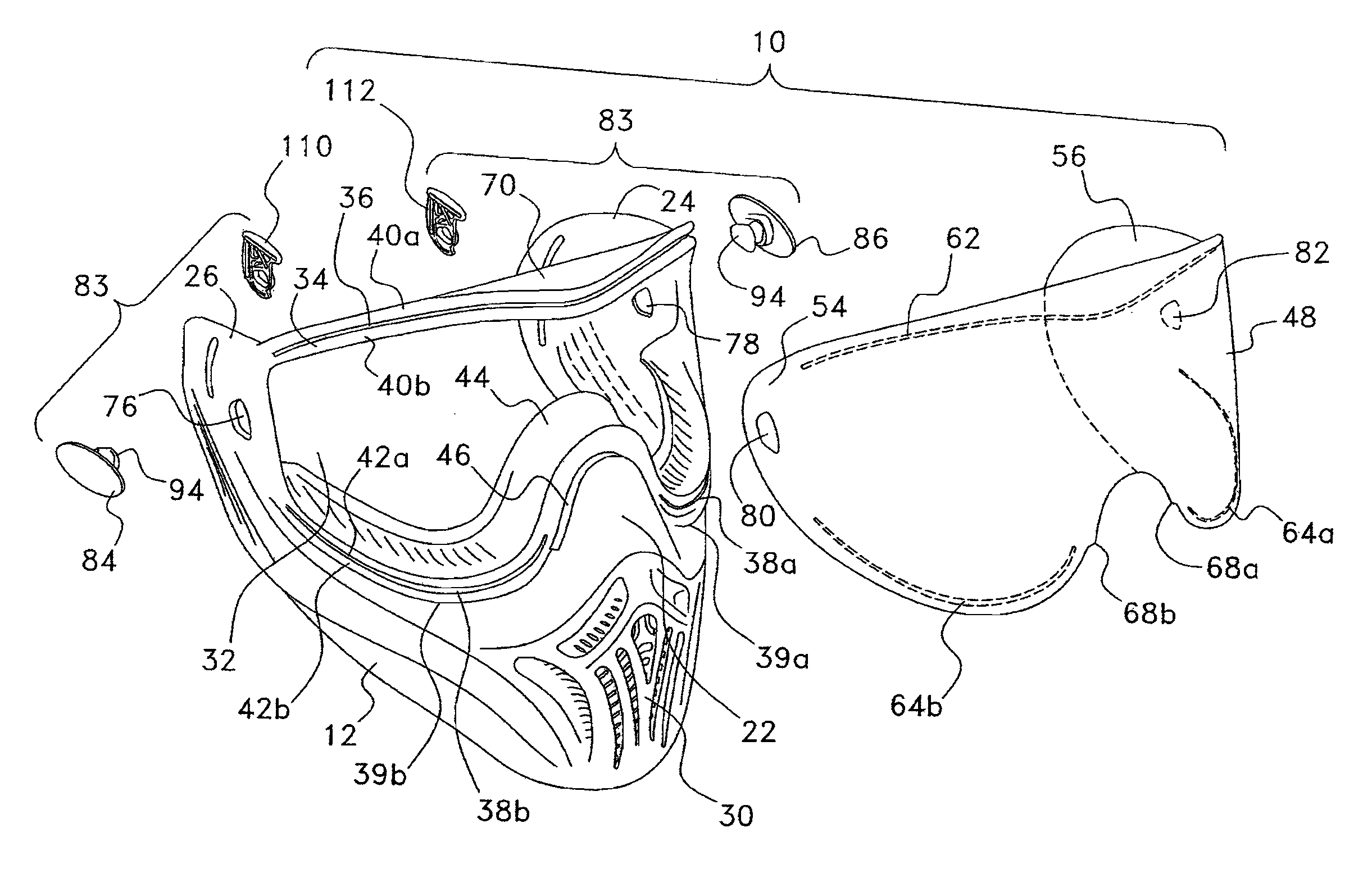

A protective face mask system according to the present invention comprises a flexible mask body including an opening for receiving a lens, nose portion, a central portion positioned to the rear of and extending at least partially above the nose portion, a central receiving slot located between the nose portion and the central portion, right and left temple portions, each temple portion having a shaped receiving opening therethrough, left and right cheek portions, and at least one groove located adjacent one of the left and right cheek portions. A lens is provided sized to be received upon and cover the lens opening. The lens includes right and left temple portions including openings therein positioned to correspond to and align with the openings of the mask body when the lens is positioned for attachment to the mask body. The lens including at least a portion that snappingly engages the groove when a portion of the lens is inserted into the slot.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- A61F Class
- 3823 Applications Filed
- 3166 Patents Issued To-Date
- 82.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A61F Class
- 2.30 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 8, 2025 |
