Ophthalmic apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 1, 2013
Grant Date -
Sep 1, 2011
app pub date -
Feb 17, 2011
filing date -
Feb 26, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

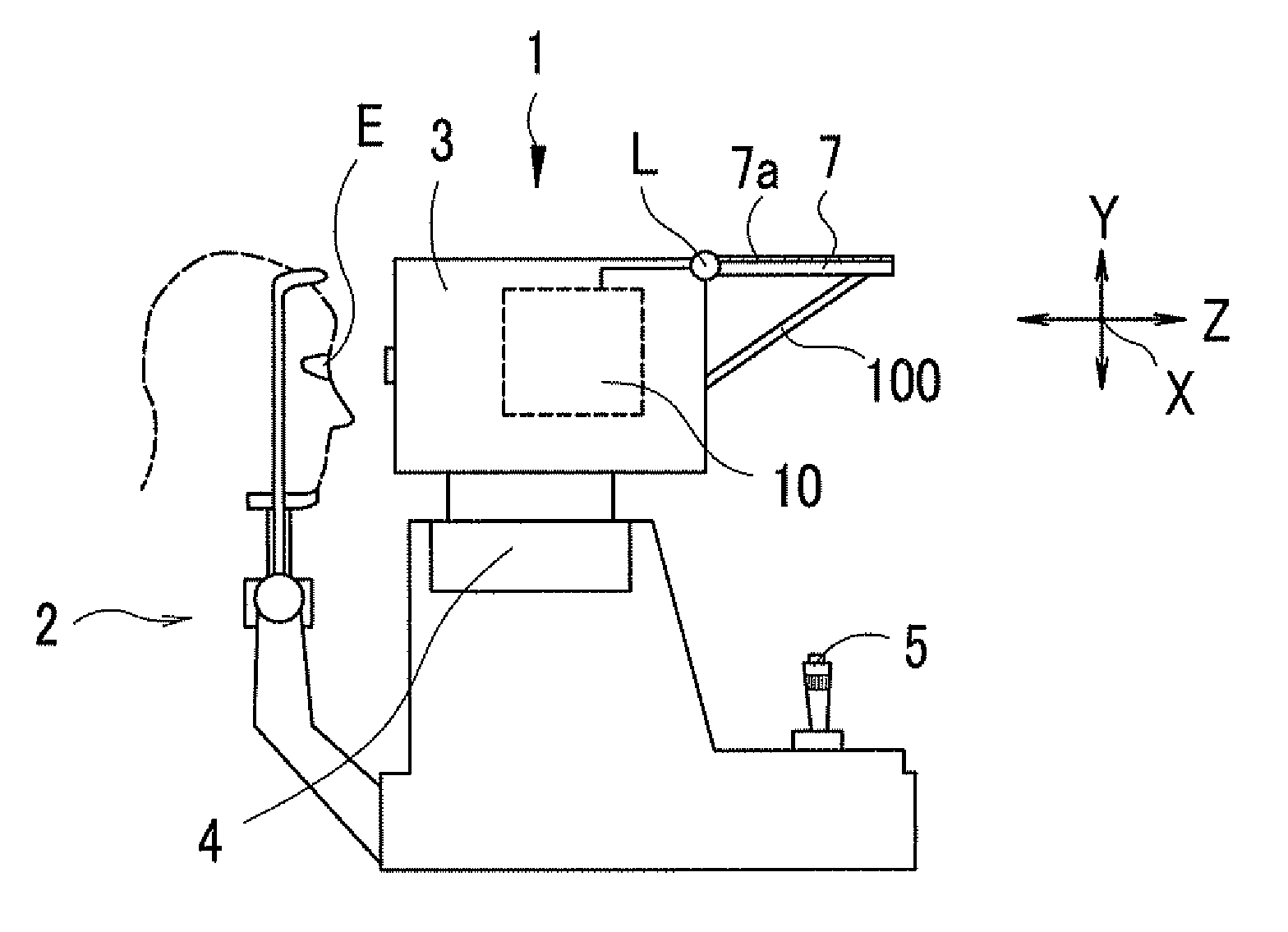

An ophthalmic apparatus comprises: a main unit including a photographing device for photographing an examinee's eye; a monitor provided in the main unit, the monitor including a displaying device for displaying an image of the eye photographed by the photographing device and a setting device for setting a predetermined function; a rotation mechanism for rotating the monitor from an almost vertical position to an almost horizontal position with respect to the main unit; a first lock mechanism for locking the monitor at each predetermined tilt angle, the first lock mechanism being arranged to allow upward rotation of the monitor but restrict downward rotation of the monitor in the course of rotating the monitor from the almost vertical position to the almost horizontal position; and a first unlock mechanism arranged to release the restriction of the downward rotation of the monitor by the first lock mechanism based on further upward rotation of the monitor after the monitor is locked in a first maximum tilt lock position by the first lock mechanism.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 1, 2025 |
