Device and method for dissociating feed material occurring in mixed form
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 1, 2013
Grant Date -
Jun 4, 2009
app pub date -
Dec 1, 2008
filing date -
Nov 30, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

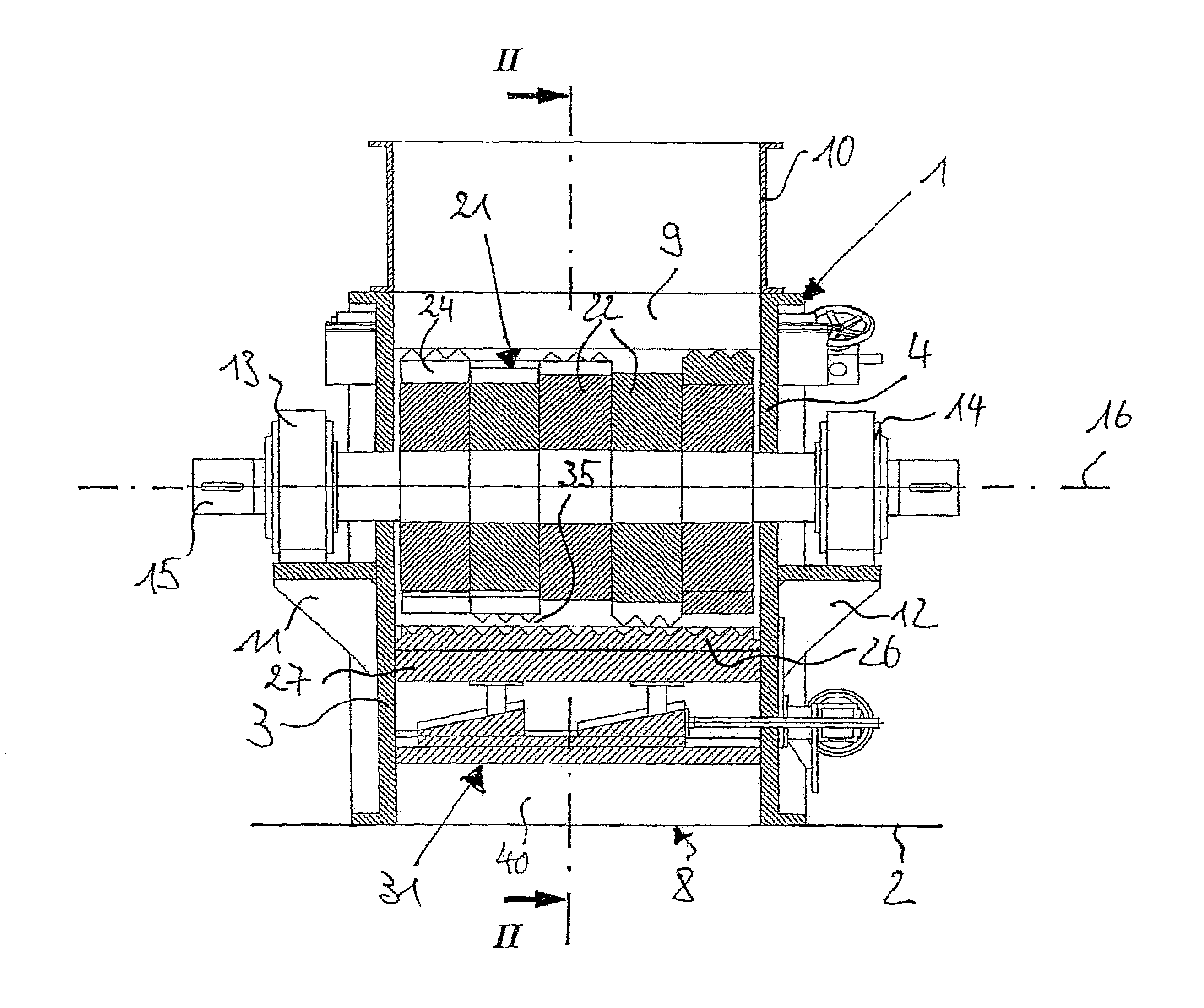

A device and method for dissociating feed material occurring as mixed materials is provided. The device includes a rotor/stator system arranged within a housing, a rotor of the rotor/stator system being equipped around its circumference with processing tools which are radially opposed by stator tools that are arranged stationary relative to the housing while maintaining a working gap; a first circumferential section for supply of the feed material and wherein the processing of the feed material takes place along a second circumferential section, the second circumferential section being divided in a direction of rotation of the rotor into a first subsection and at least one additional second subsection; and a stator tool followed by a processing path being provided at a start of each subsection with respect to the direction of rotation of the rotor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- B02C Class
- 291 Applications Filed
- 199 Patents Issued To-Date
- 68.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B02C Class
- 11.76 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 1, 2025 |
