Garden hose booster system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 1, 2013
Grant Date -
Dec 1, 2011
app pub date -
May 25, 2010
filing date -
May 25, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

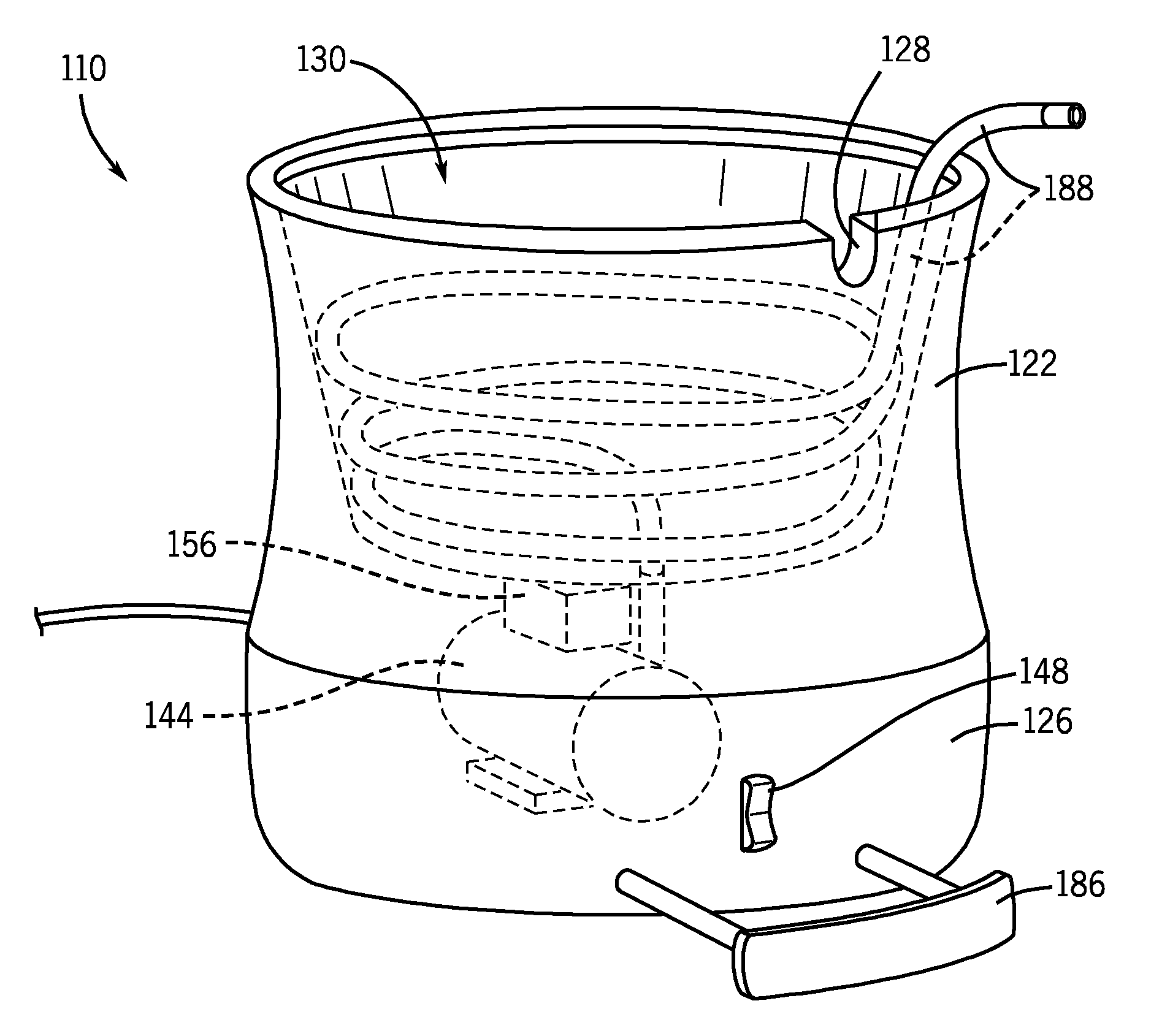

A garden hose booster system includes a pump for pressurizing water, a motor connected to and designed to drive the pump, and a housing supporting the pump and the motor. The garden hose booster system further includes an inlet conduit, an outlet conduit, and a storage container. The inlet has a first garden hose coupling on an end thereof, and extends into the housing to direct the water to the pump. The outlet conduit has a second garden hose coupling on an end thereof, and extends out of the housing to direct the water from the pump. The storage container includes a bottom designed to be mounted to the top of the housing and a side wall extending upward from the bottom. The side wall and the bottom form an open volume within which a garden hose may be piled or coiled for storage thereof. The outlet conduit extends into the open volume of the storage container such that the garden hose stored in the storage container may be coupled to the second garden hose coupling and may receive a boosted water flow during operation of the garden hose booster system.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- F16L Class
- 1178 Applications Filed
- 754 Patents Issued To-Date
- 64.01 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 1, 2025 |
