Process and system for thermochemical conversion of biomass
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 24, 2013
Grant Date -
Sep 9, 2010
app pub date -
Mar 5, 2010
filing date -
Mar 5, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

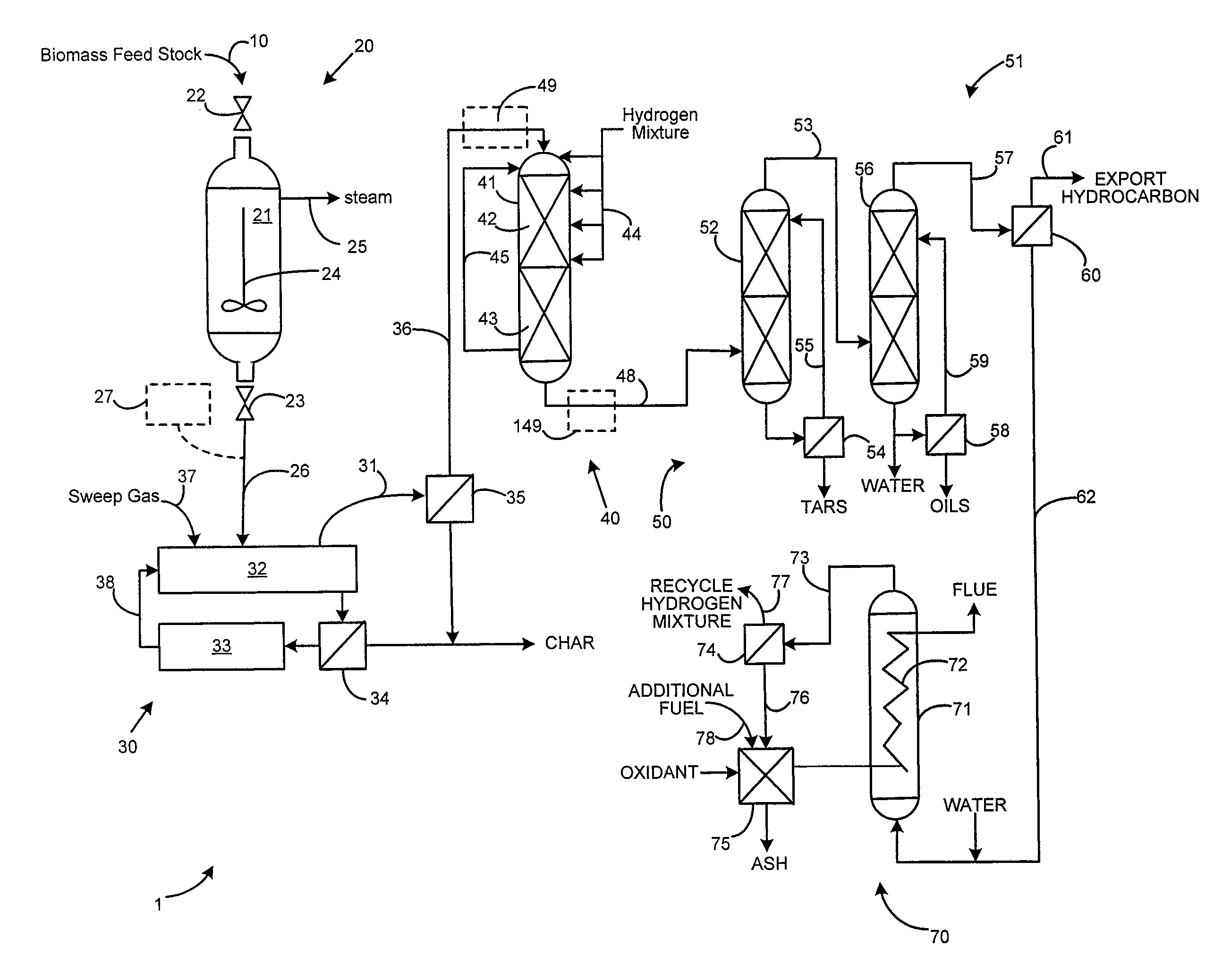

A system and method for converting biomass into fluid hydrocarbon products to minimize the use of fossil fuels, provide energy and chemical feedstock security, and sustainable and/or carbon neutral electric power, are disclosed. For example, fast pyrolysis can be performed on biomass to produce pygas and char using a maximum processing temperature of about 650° C. The pygas is provided to an independent reactor without the addition of an oxidizing agent for catalytically converting the pygas to hydrocarbons using a maximum processing temperature of about 650° C. A system comprising fast pyrolysis means producing a pygas and char, independent catalytic conversion means downstream of the fast pyrolysis for converting the pygas to hydrocarbons, and a hydrogen source, external to the system and/or produced by a steam reformer by steam reformation of at least a portion of the hydrocarbons, coupled to catalytic conversion means, also are described.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- C10L Class
- 329 Applications Filed
- 198 Patents Issued To-Date
- 60.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 34 Citation Count
- C10L Class
- 97.18 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 24, 2025 |
