Abstract

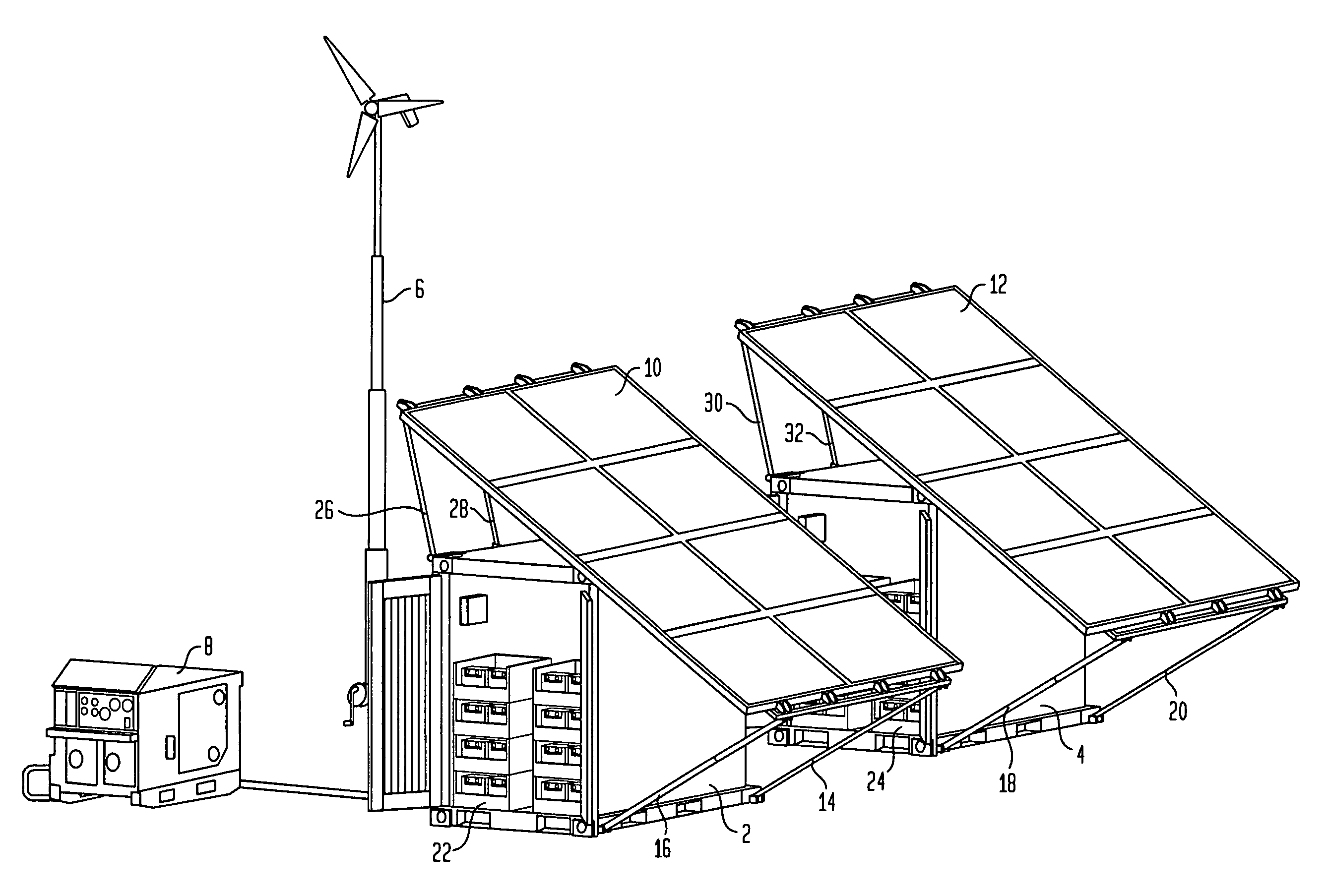

Electrical power is generated from solar and wind sources thus reducing the need for fuel oil at military forward operating bases and main operating bases. A wind turbine and a solar cell panel are connected to a battery bank. Both the turbine and the solar cells are stored in two standard military shipping containers. When transported to the desired location, these sub-systems are easily set up for operation. The entire apparatus may be disassembled for re-transport and use at another location. Necessary container modifications to connect the system for use are made in such a way as not to alter the container's outside envelope, thus enabling normal transport of the container without damage to the modifications. Each of the solar cells have discs attached so that the solar panel can be assembled in the field by sliding each disc into a mounting channel. This disc and channel structure also allows each cell to be stored in the shipping container by using similar channels mounted back to back in a storage frame located in one of the containers. The solar panel is pivotally mounted in proximity to an edge of the shipping container using mounting elements which interfit with the already provided lift fittings on the container. A wiring harness plugs each solar cell to a conduit for connection to the battery charging system.
