Cord lock guide for blinds
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 24, 2013
Grant Date -
Nov 8, 2012
app pub date -
May 5, 2011
filing date -
May 5, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

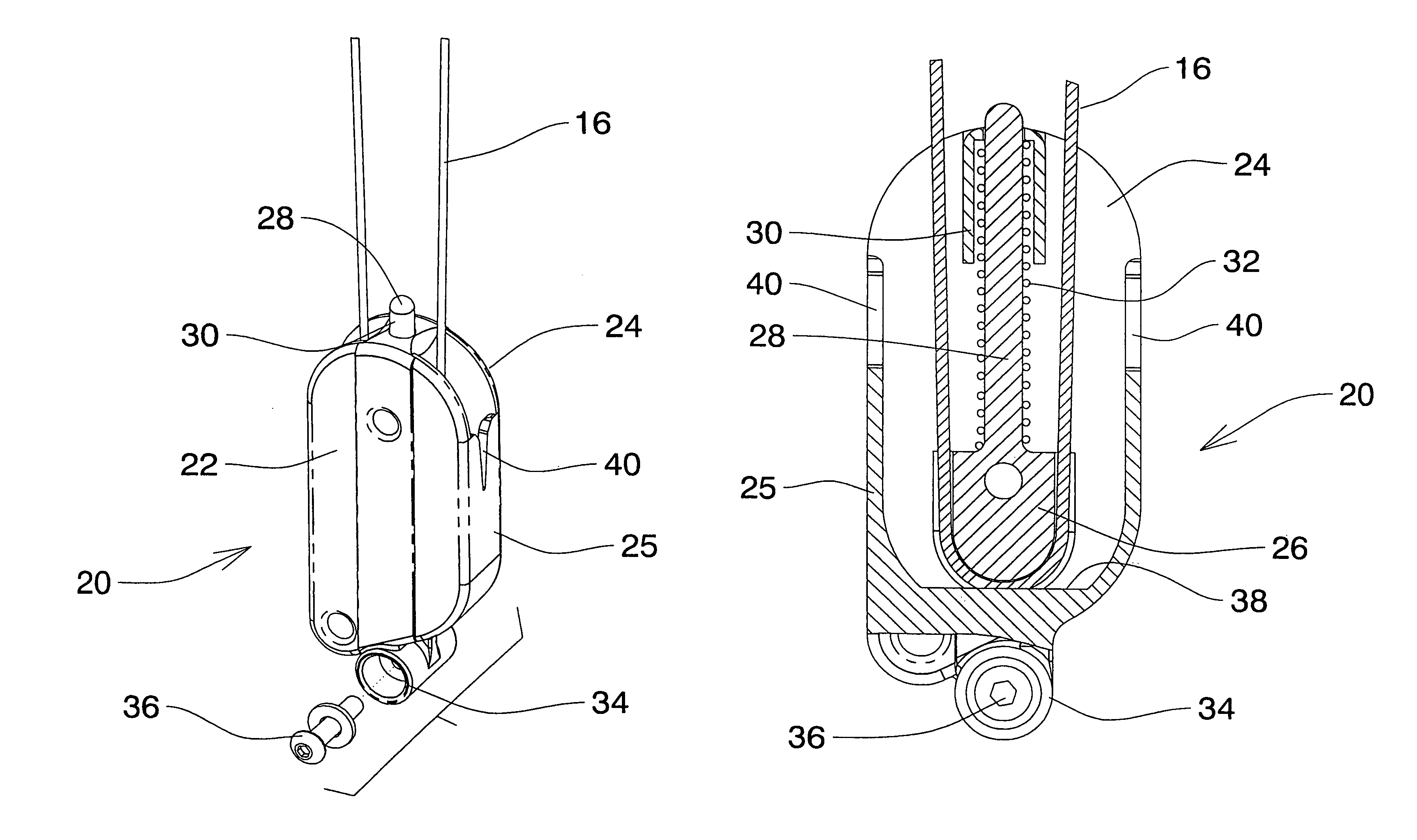

A cord lock guide for a blind operated by a blind cord, wherein the cord hangs in a loop from a blind head rail, and having a main body portion, formed of front and back panels, and junction portions extending between the front and the back panels, a cord passage defined between the front and back panels, a movable guide body between the front and back panels, a generally semi-arcuate cord guide surface defined by the guide body around which the cord may run, a guide body support extending from the guide body, a hollow sleeve secured between the front and back panels; and receiving the guide body support therein, a resilient member between the guide body and the sleeve, the guide body being movable towards the sleeve against the resilient member and, a cord abutment located between the front and back panels, and oriented so as to obstruct the cord from passing around the guide body, when the guide body is in a first position, and the abutment being out of obstructive engagement when the guide body is moved against the resilient member.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 15 Citation Count
- E06B Class
- 72.44 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 24, 2025 |
