Vehicle for launching from a gas gun
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 17, 2013
Grant Date -
Jul 12, 2012
app pub date -
Mar 26, 2012
filing date -
Sep 25, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

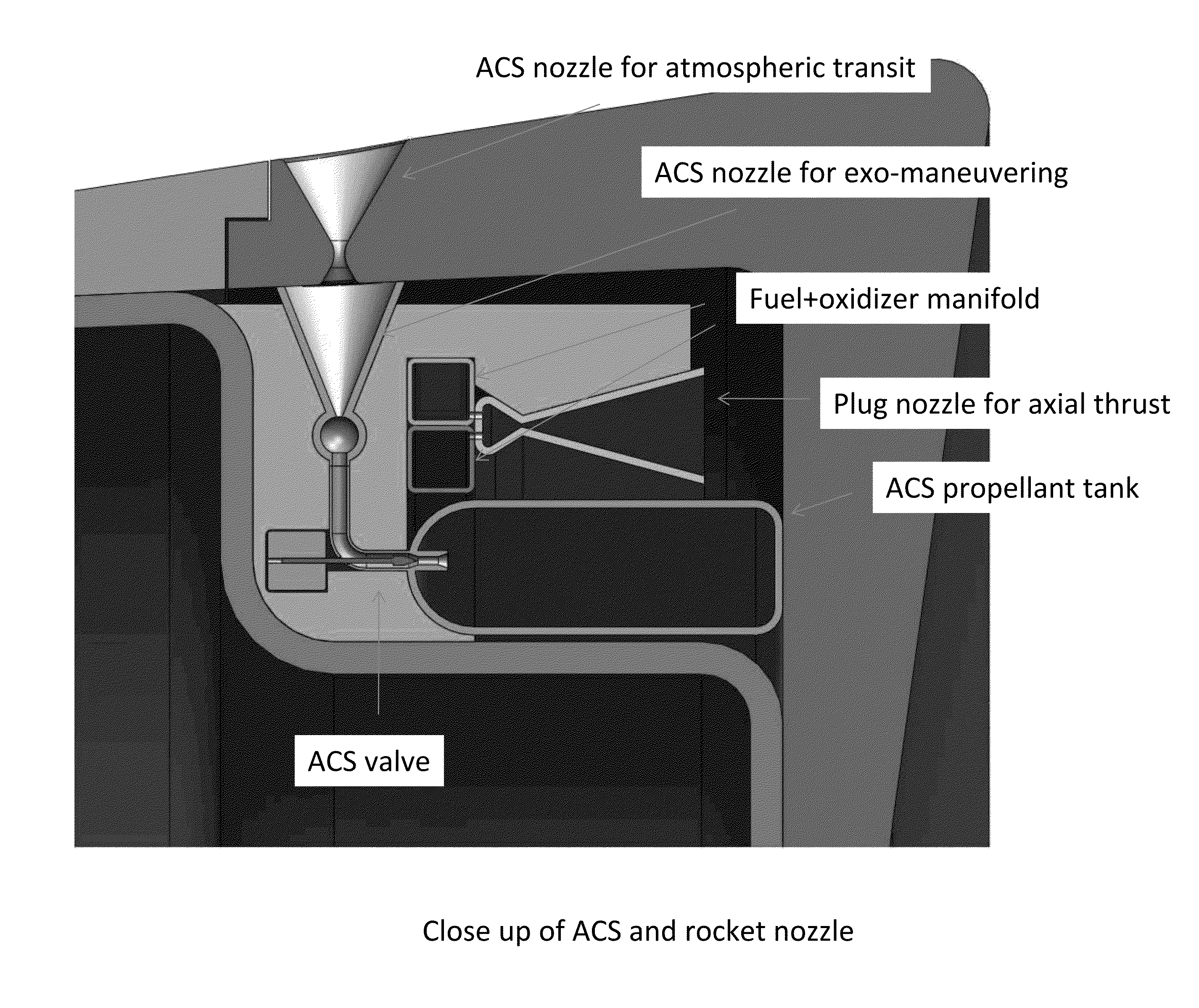

A vehicle for launching from a gas gun having a housing; preferably incorporating a precessional attitude control system; and utilizing a flared base, fins, or active use of the attitude control system during passage through the atmosphere. Subtly canting the fins can produce desired spinning of the vehicle. The propulsion system can employ liquid, hybrid, or solid fuel. A removable aero-shell assists atmospheric flight with thermal protection being provided by anticipated ablation, an ablative aero-spike, or transpirational cooling. And a releasable sabot enhances the effectiveness of the launch.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2012 Application Filing Year
- F42B Class
- 330 Applications Filed
- 282 Patents Issued To-Date
- 85.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- F42B Class
- 3.55 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 17, 2025 |
