Solar cell panel connector and panel coupling body
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 17, 2013
Grant Date -
Oct 18, 2012
app pub date -
Apr 12, 2012
filing date -
Apr 18, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

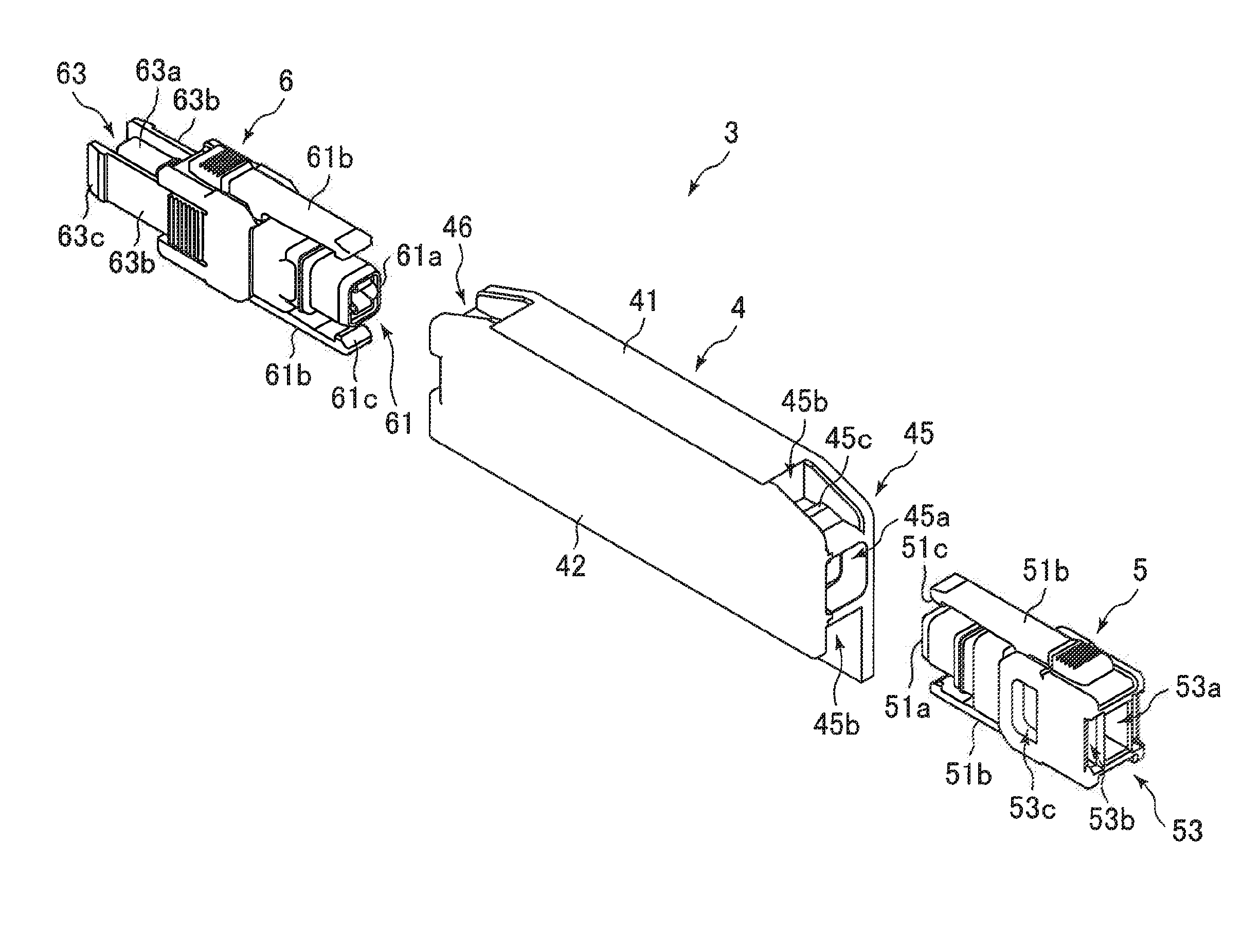

With the solar cell panel connector, first relay connector 5 possesses male type mating component 51 that is mountable-removable to female type mating component 45 of main connector 4 and possesses female type mating component 53 established at the opposite side, and second relay connector 6 possesses male type mating component 61 that is mountable-removable to female type mating component 46 of main connector 4 and possesses male type mating component 63 established at the opposite side. Female type mating component 53 of first relay connector 5 possesses a shape that is mountable-removable to male type mating component 63 of second relay connector 6, and male type mating component 63 of second relay connector 6 possesses as shape that is mountable-removable to female type mating component 53 of first relay connector 5.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- H01R Class
- 3077 Applications Filed
- 2514 Patents Issued To-Date
- 81.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 17, 2025 |
