Confocal microscope apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 10, 2013
Grant Date -
Feb 16, 2012
app pub date -
Oct 27, 2011
filing date -
Mar 27, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

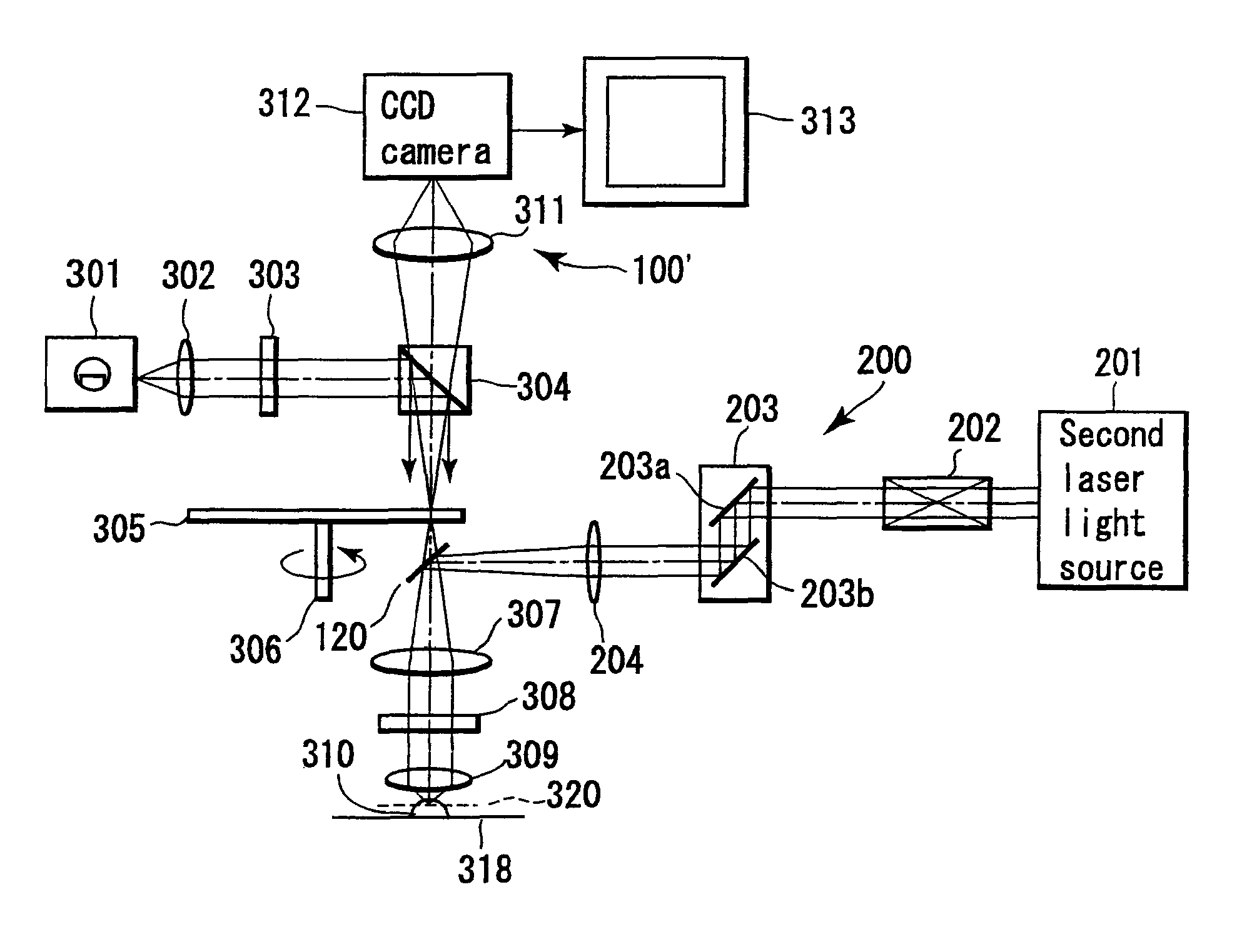

A confocal microscope apparatus comprises a first optical scanning system which obtains a scan image of a sample using a laser beam from a first laser light source, a second optical scanning system which scans specific regions of a sample with a laser beam from a second laser light source that is different from the first laser light source, thereby causing a particular phenomenon, and a beam diameter varying mechanism which can change the beam diameter of the laser beam of at least one of the first optical scanning system and the second optical scanning system. With this configuration, the apparatus further comprises an excitation light intensity distribution calculator which calculates and stores the excitation light intensity distribution along a depth direction on the sample surface from the beam diameter of the laser beam output from the beam diameter varying mechanism.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- G02B Class
- 5197 Applications Filed
- 4246 Patents Issued To-Date
- 81.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02B Class
- 0 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 10, 2025 |
