Airborne reconnaissance system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 3, 2013
Grant Date -
Sep 4, 2008
app pub date -
Oct 29, 2007
filing date -
Jan 23, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

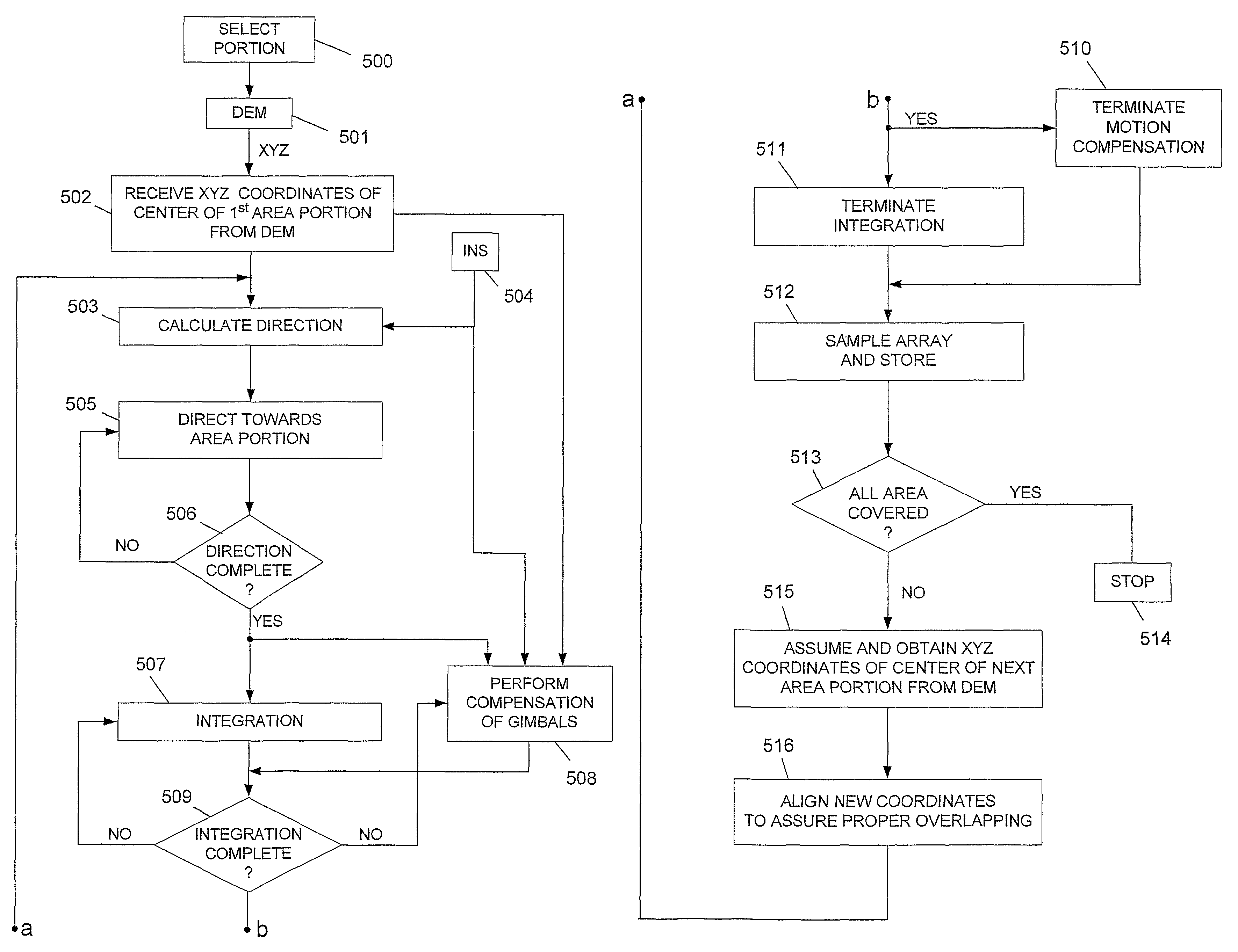

An airborne reconnaissance system comprising: (1) Gimbals having at least two degrees of freedom; (2) At least one array of light sensors positioned on the gimbals, for being directed by the same within at least two degrees of freedom; (3) Map storage means for storing at least one Digital Elevation Map of an area of interest, divided into portions; (4) Inertial Navigation System for real-time providing to a gimbals control unit navigation and orientation data of the aircraft with respect to a predefined global axes system; (5) Portion selection unit for selecting, one at a time, another area portion from the area of interest; and (6) servo means for directing the gimbals. The system uses data from the inertial navigation system and from the digital elevation map for real-time calculating direction to selected area portions, and for maintaining the direction during integration of light from the terrain, and for producing corresponding images of area portions.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 19 Citation Count
- G01C Class
- 57.68 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 3, 2025 |
