Boundary microphone
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 2013
Grant Date -
Apr 26, 2012
app pub date -
Sep 30, 2011
filing date -
Oct 25, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

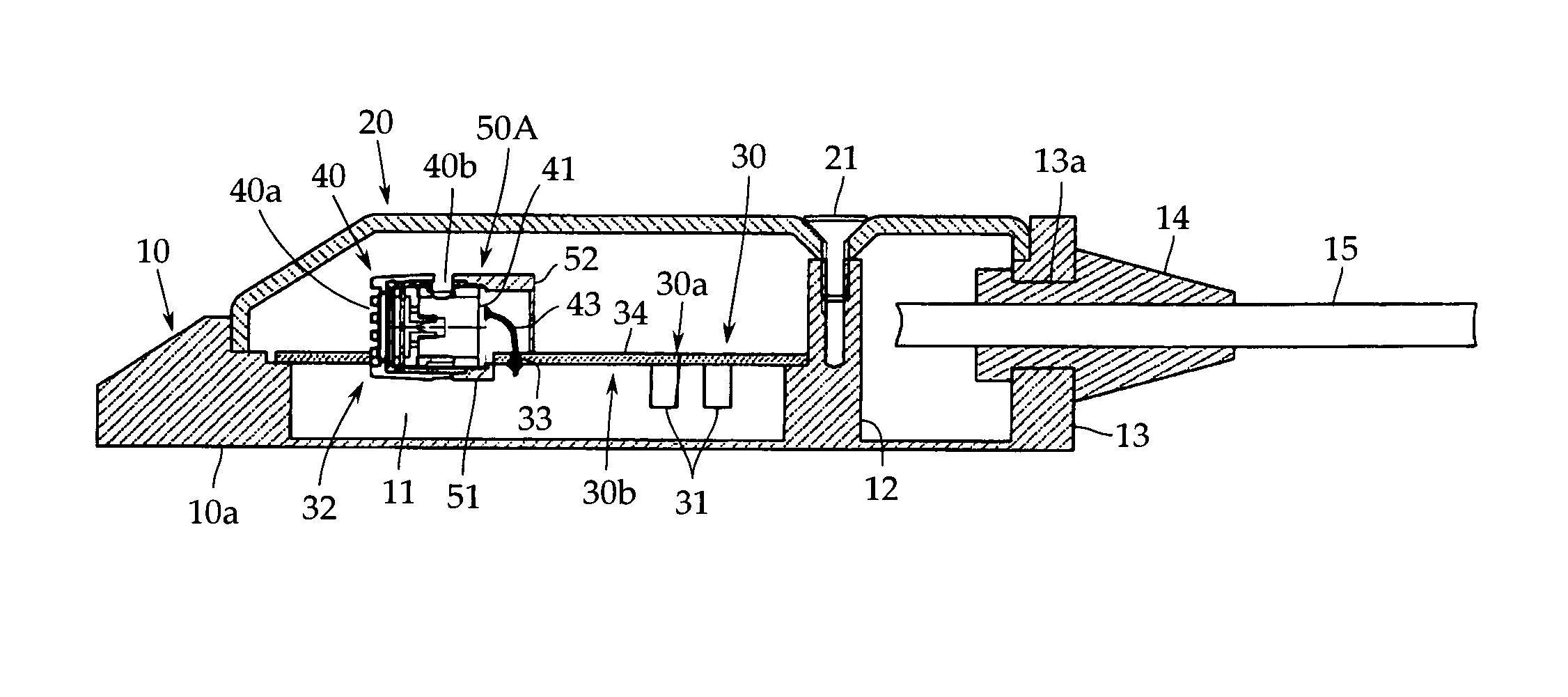

A boundary microphone is provided to effectively reduce noises caused by external electromagnetic waves by providing electrostatic shielding, including on the portion of lead wires from a microphone unit to a circuit board. The boundary microphone has a base plate, a cover, a circuit board, and a microphone unit mounted in the opening with a metallic holder. A shield pattern for electrostatically shielding inside of the recess with the base plate is formed on the circuit board. The holder is configured to include a cylindrical section into which a rear end side of the microphone unit is fitted, and a D-cut section in which a part of a circumferential surface and a base surface of a cylinder with a base integral with the cylindrical section are cut away in parallel to a board surface of the circuit board, and the lead wire is routed within the D-cut section.
