Horizontal machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 2013
Grant Date -
May 23, 2013
app pub date -
Aug 30, 2010
filing date -
Aug 30, 2010
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

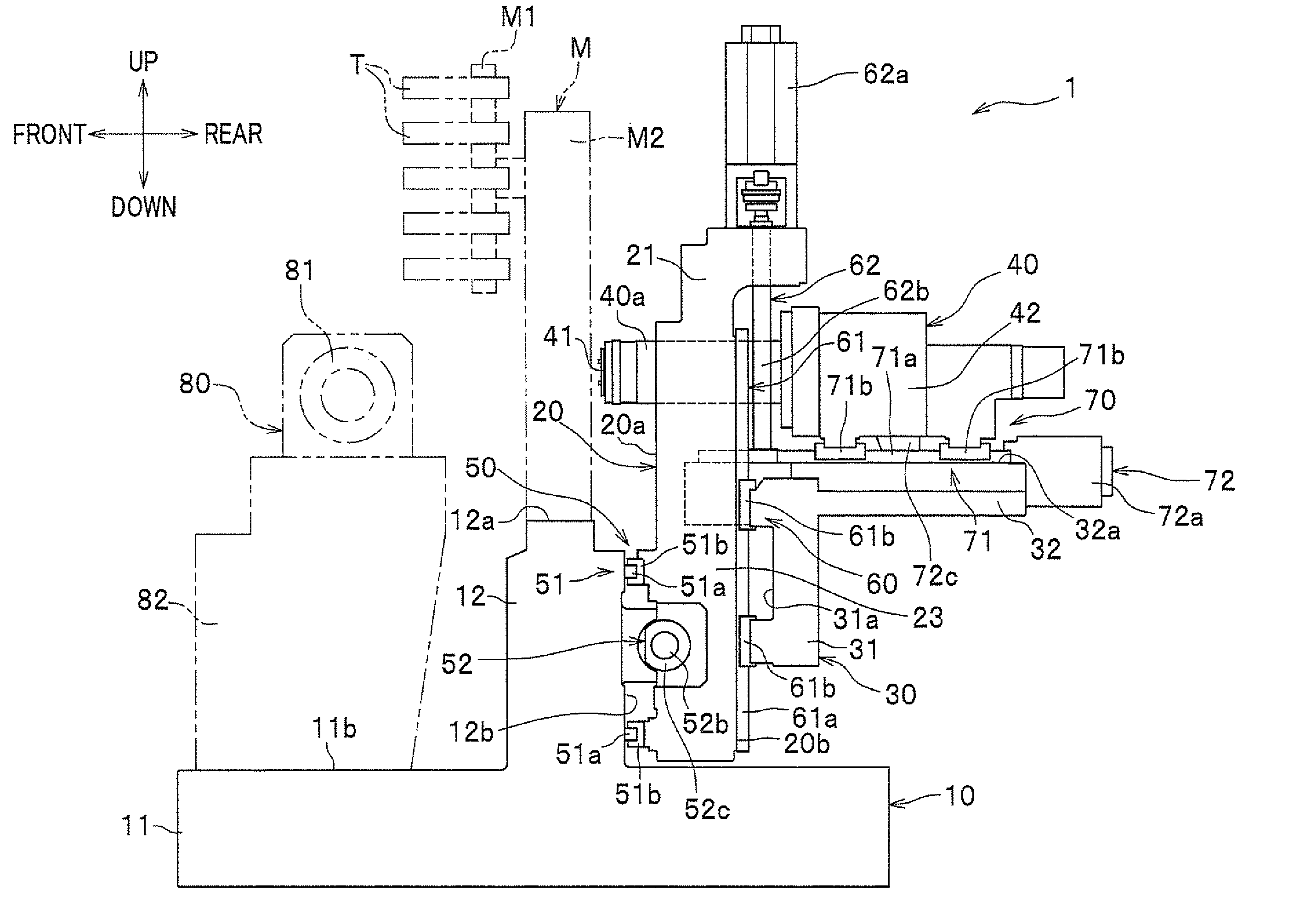

Provided is a horizontal machine tool with a base frame including a base part and a saddle supporting part vertically standing on the base part; an X-axis saddle mounted on the back face of the saddle supporting part and capable of sliding in the left-right direction via an X-axis translation mechanism; a Y-axis saddle mounted on the X-axis saddle and capable of sliding in the up-down direction via a Y-axis translation mechanism; and a spindle device mounted on the Y-axis saddle and capable of sliding in the front-rear direction via a Z-axis translation mechanism. The horizontal machine tool is adapted such that a workpiece supporting member is installed on the base part in front of the saddle supporting part. This configuration can reduce the size and weight of the entire construction.
