Friction controlled drawer slide mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 2013
Grant Date -
Jun 14, 2012
app pub date -
Nov 11, 2011
filing date -
Dec 13, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

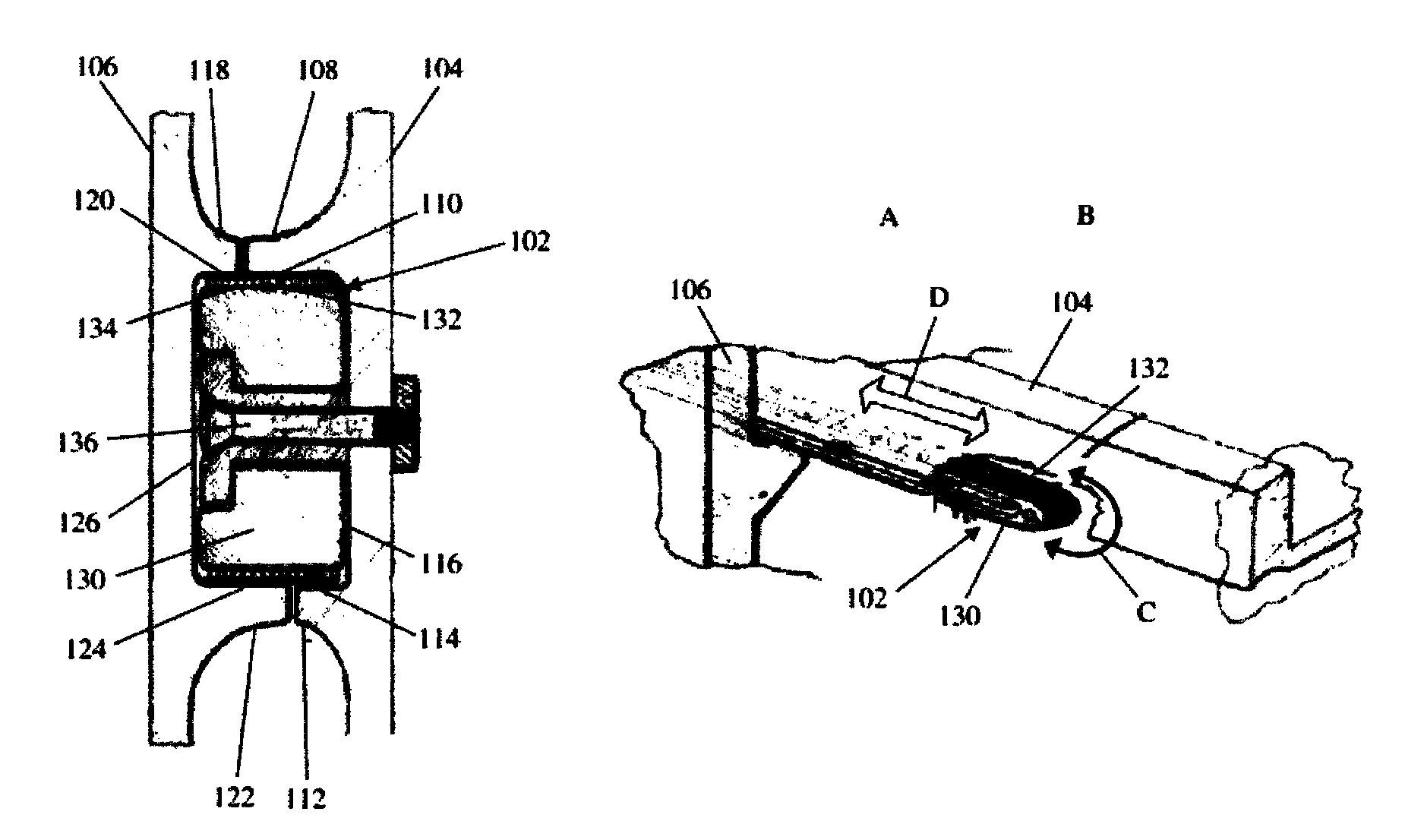

A friction controlled mechanism for use on a cabinet assembly is provided. The cabinet assembly includes a stationary structure such as a cabinet, a moveable structure such as a drawer that is moveable in relation to the stationary structure and the friction controlled mechanism. The friction controlled mechanism is attached to each side of the moveable structure. The friction controlled mechanism includes a frame member with a length and a friction based flexible member. The flexible member is wrapped around a perimeter of the frame member such that the flexible member is capable of traveling in opposite directions around the perimeter of the frame member during movement of the moveable structure toward and away from the stationary structure. The flexible member imparts a friction to side rails of both the stationary structure and the moveable structure to provide a controlled stable movement of the moveable structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- A47B Class
- 966 Applications Filed
- 616 Patents Issued To-Date
- 63.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A47B Class
- 4.62 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 27, 2025 |
