Long distance submerged hydrocarbon transfer system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 2013
Grant Date -
Feb 10, 2011
app pub date -
Jan 28, 2009
filing date -
Jan 28, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

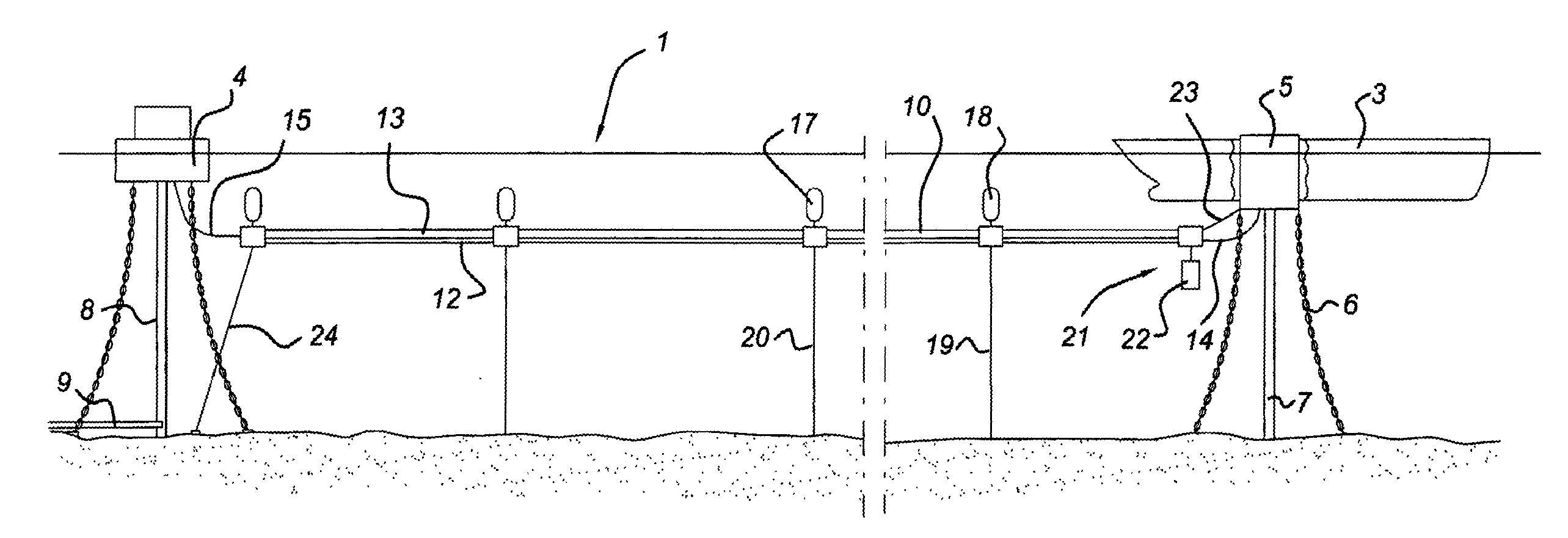

A hydrocarbon transfer system includes a first and second floating structure and a substantially horizontal transfer pipe system submerged below water level interconnecting the floating structures. The transfer pipe system includes a flow line support member which is with at least one end attached to a connection head, a number of hydrocarbon flow lines being connected along the support member via carrier members. The connection head includes a cable or chain connected to one of the floating structures, connectors situated on the connection head or at the position of the support member near the connection head, which connectors are on one side in fluid connection with the flow lines and on the other side in fluid connection with a flexible flow line extending from the connection head to the floating structure.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 27, 2025 |
