Open-end wrench for quickly turning an object
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 2013
Grant Date -
Nov 1, 2012
app pub date -
Apr 26, 2011
filing date -
Apr 26, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

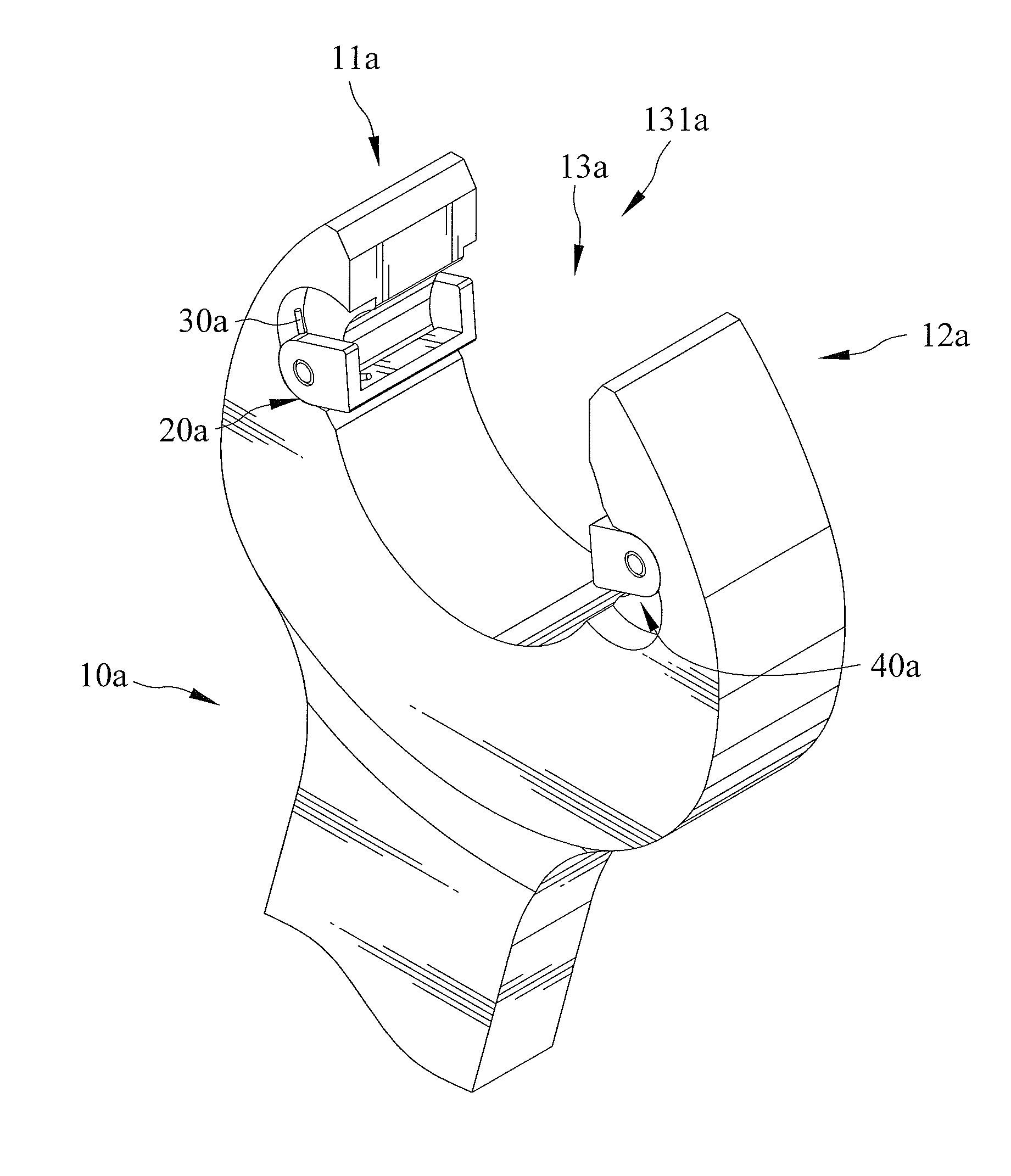

An open-end wrench for quickly turning an object includes a driving end including a first jaw and a second jaw which cooperate together. One of the first and second jaws includes a recess defined therein. Further, a movable engaging member includes a body pivotally fixed in the recess by a pivot. The body is in a surface contact with a lateral wall of the recess, and the recess supports the body. The pivot is inserted through the body and is fixedly engaged with a wall of the recess. Further, an elastic member resiliently engages with the movable engaging member. Furthermore, the open-end wrench is turned in a first turning direction to turn the object and in a second turning direction to move relatively to the object.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 27, 2025 |
