Blower arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 20, 2013
Grant Date -
May 31, 2012
app pub date -
Nov 8, 2011
filing date -
Nov 25, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

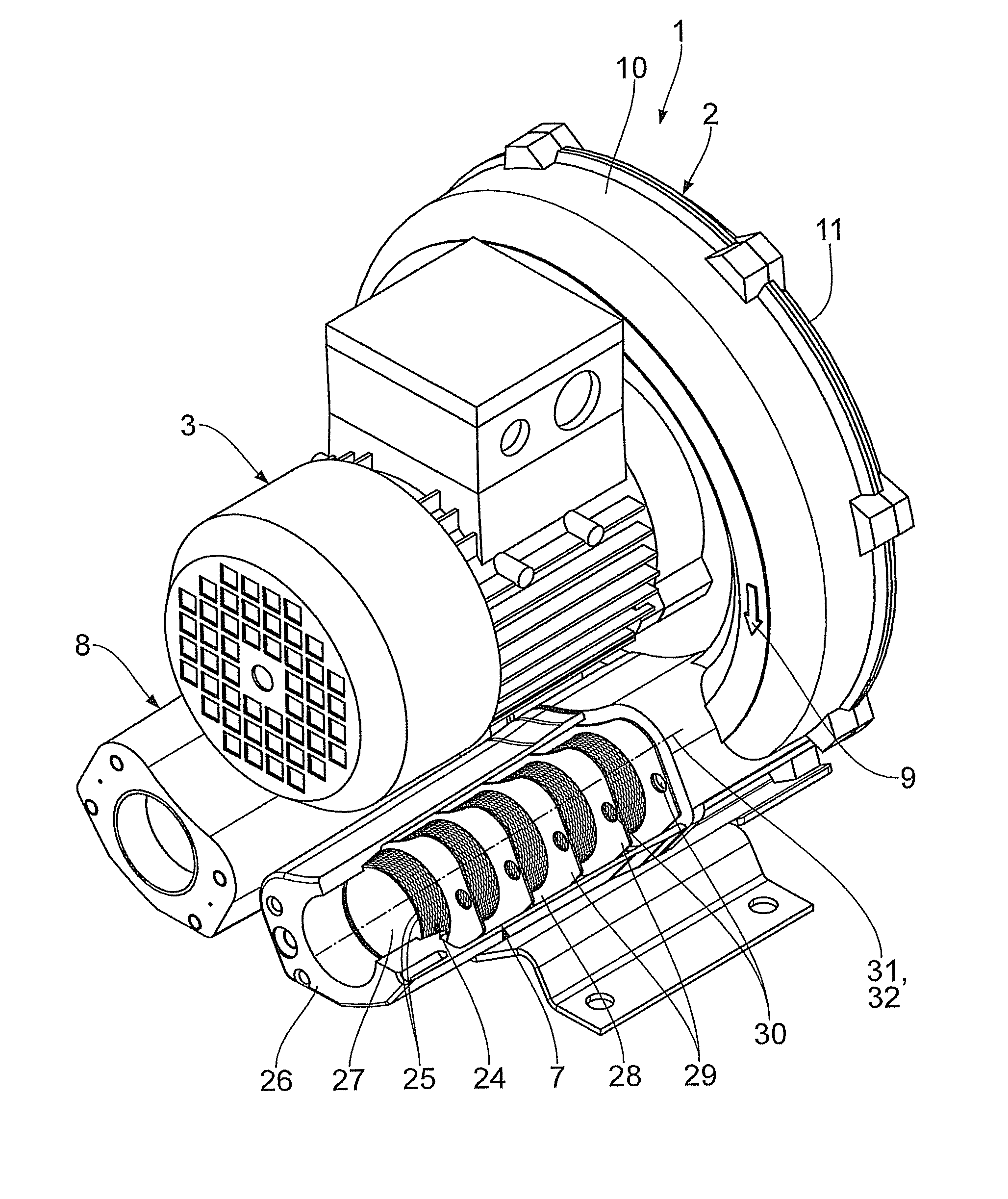

The invention relates to a blower arrangement for gas. The blower arrangement comprises a blower with a blower housing, at least one gas-inlet opening formed in the blower housing and gas-outlet opening, and at least one rotary-driven blower wheel arranged in the blower housing. Furthermore, the blower arrangement has at least one silencer device with at least one gas guiding element, wherein the gas-guiding element comprises a plurality of silencer openings and is designed as a gas guiding pipe. The gas guiding pipe varies its cross section along its longitudinal extension and has a wall, which is designed to be wave-like along the longitudinal extension of the gas guiding pipe. The silencer device also comprises at least one silencer chamber, which is in flow connection with the silencer openings and is arranged at least in sections laterally behind the gas guiding element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F01N Class
- 853 Applications Filed
- 742 Patents Issued To-Date
- 86.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 20, 2025 |
