French door hinge system for oven
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 20, 2013
Grant Date -
Jun 11, 2009
app pub date -
Dec 5, 2008
filing date -
Dec 6, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

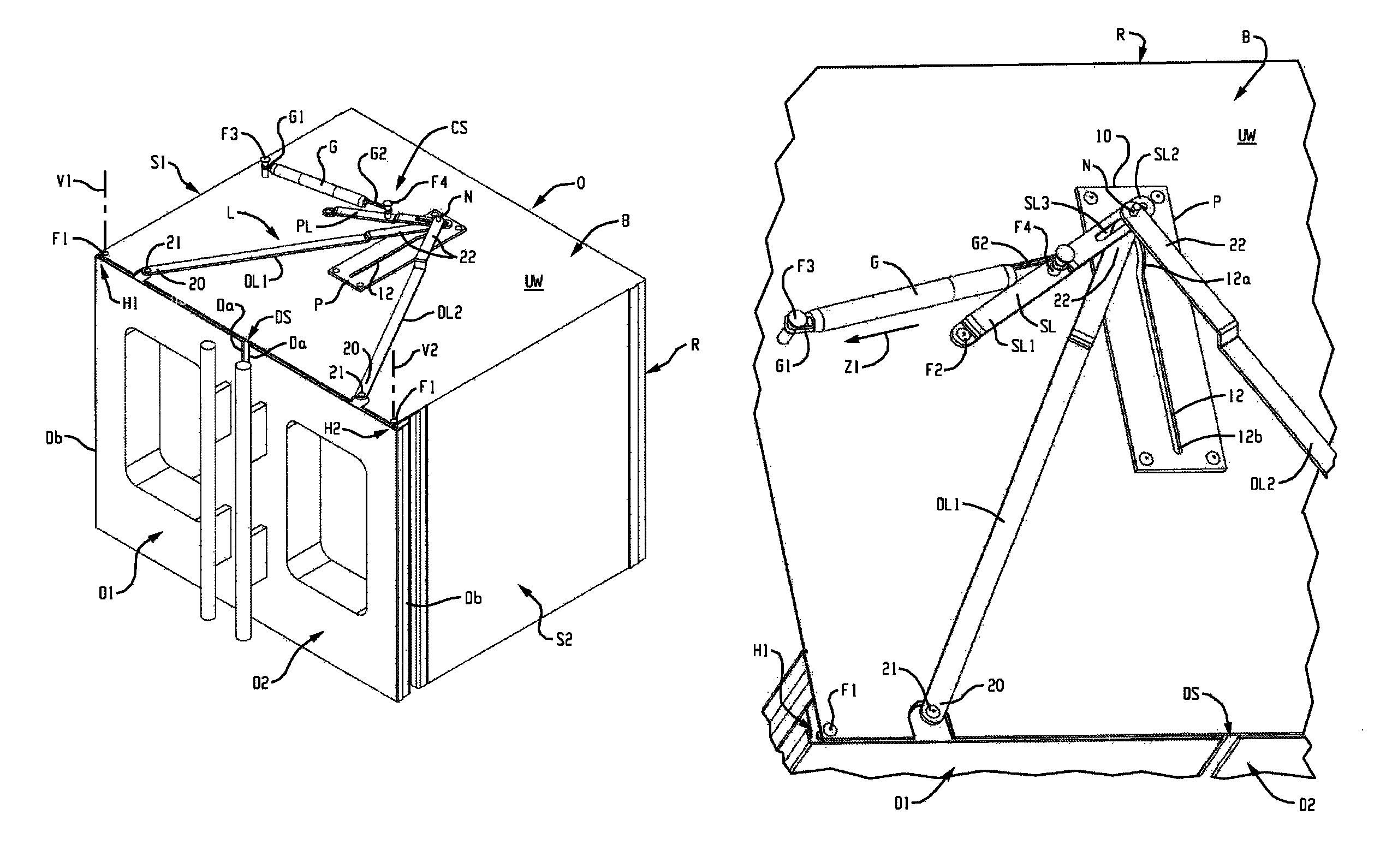

A French door oven includes a body defining a cooking chamber with an open mouth. First and second doors are respectively connected to the body adjacent opposite first and second opposite lateral sides of the mouth and are adapted to pivot about respective first and second vertical pivot axes between an opened position in which the first and second doors are pivoted away from the mouth and a closed position in which the first and second doors cover the mouth and define a seam between their adjacent respective inner edges. The oven includes a door movement control system for controlling movement of the doors between their opened and closed positions. The door movement control system includes a door movement control plate including a door movement slot including an inner portion and an outer portion, the outer portion closer to the mouth than the inner portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- E05F Class
- 251 Applications Filed
- 111 Patents Issued To-Date
- 44.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- E05F Class
- 2.45 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 20, 2025 |
