Electronic device and method for testing a circuit board
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 13, 2013
Grant Date -
Jun 9, 2011
app pub date -
Dec 2, 2010
filing date -
Jun 2, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

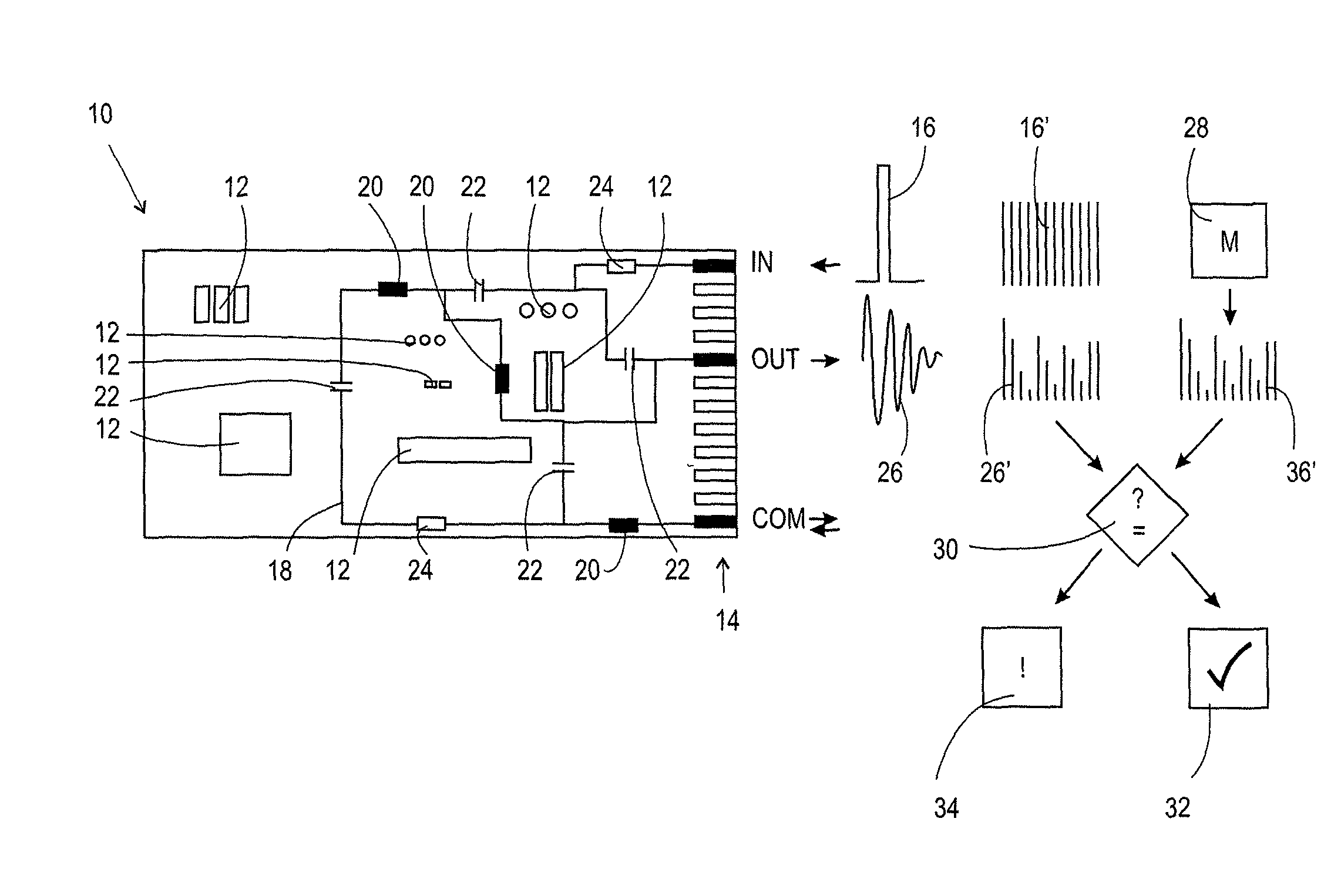

An electronic device, and associated method, provided with a circuit board (10), with a set of input contacts (IN/COM), a set of output contacts (OUT/COM) and an electrical circuit (18) connected between the input contacts (IN/COM) and the output contacts (OUT/COM) and a controller. The controller carries out a real-time test of the circuit board using a test signal introduced into the electrical circuit, the electrical circuit (18) being designed as a passive network having a characteristic transfer function and provided with at least one capacitive element, wherein the capacitive element is a conductor surface (221) forming a capacitor in the assembled state with a corresponding, device-side conductor surface (222″), which is connected to the electrical circuit (18) via a contact element in the assembled state, whereby the capacitive value of the capacitive element in the assembled state differs from the capacitive value of the capacitive element in the disassembled state.
