Cartridge ammunition having a bursting device as a connection between projectile and propulsion
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 13, 2013
Grant Date -
Oct 4, 2012
app pub date -
Apr 6, 2012
filing date -
Oct 6, 2009
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

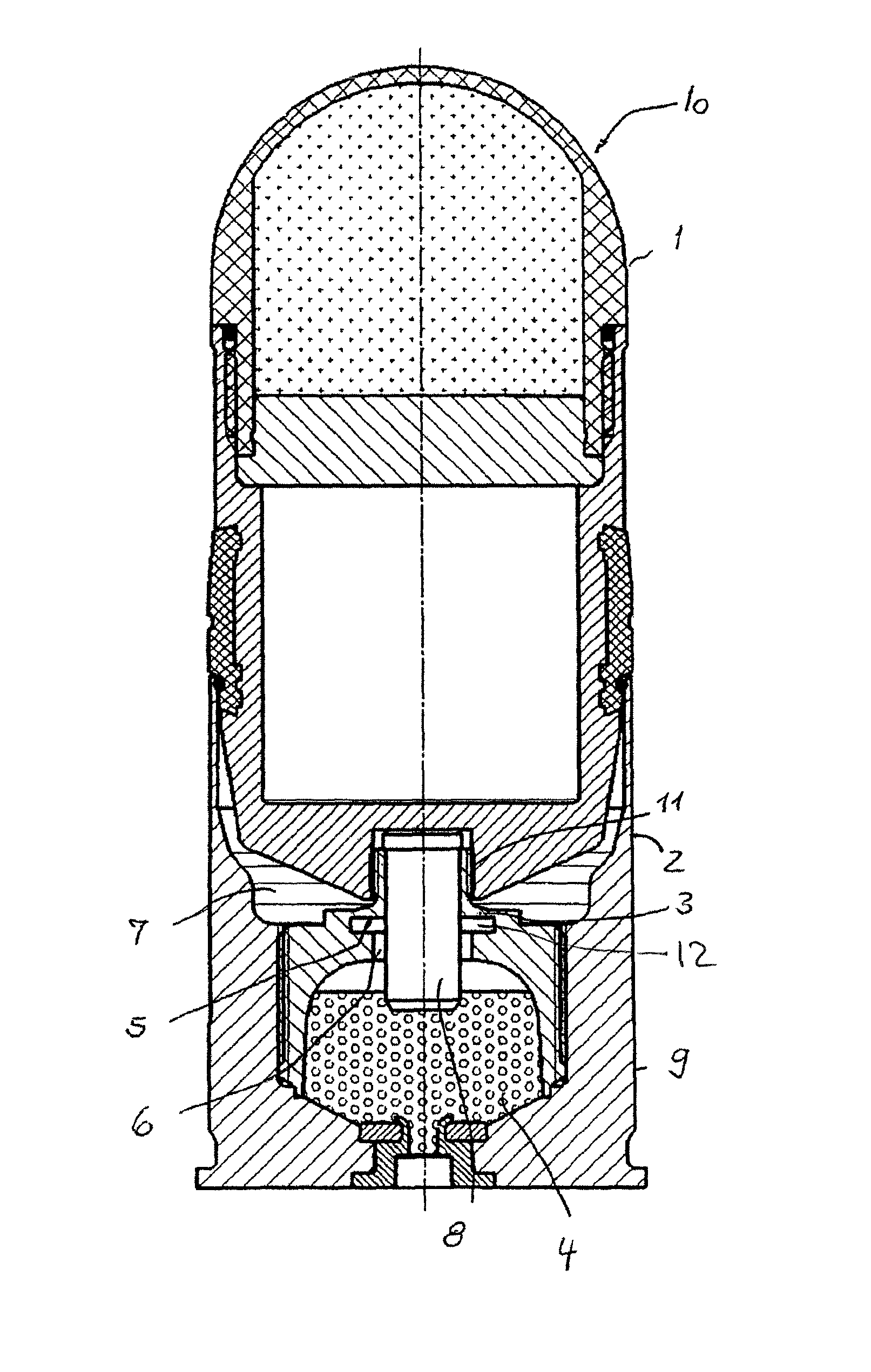

A cartridge ammunition, in particular grenade ammunition, is provided that includes a projectile and a propellant charge case for accommodating the projectile and a propulsion, having a high pressure chamber and a low pressure champer, wherein the projectile and the propellant charge case are fastened to one another by way of a connection. The connection includes a membrane having at least one target braking point/opening point, which opens at a predetermined pressure in the high pressure chamber of the propulsion.
