Vehicle door hinge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 13, 2013
Grant Date -
Sep 13, 2012
app pub date -
Sep 10, 2009
filing date -
Sep 10, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

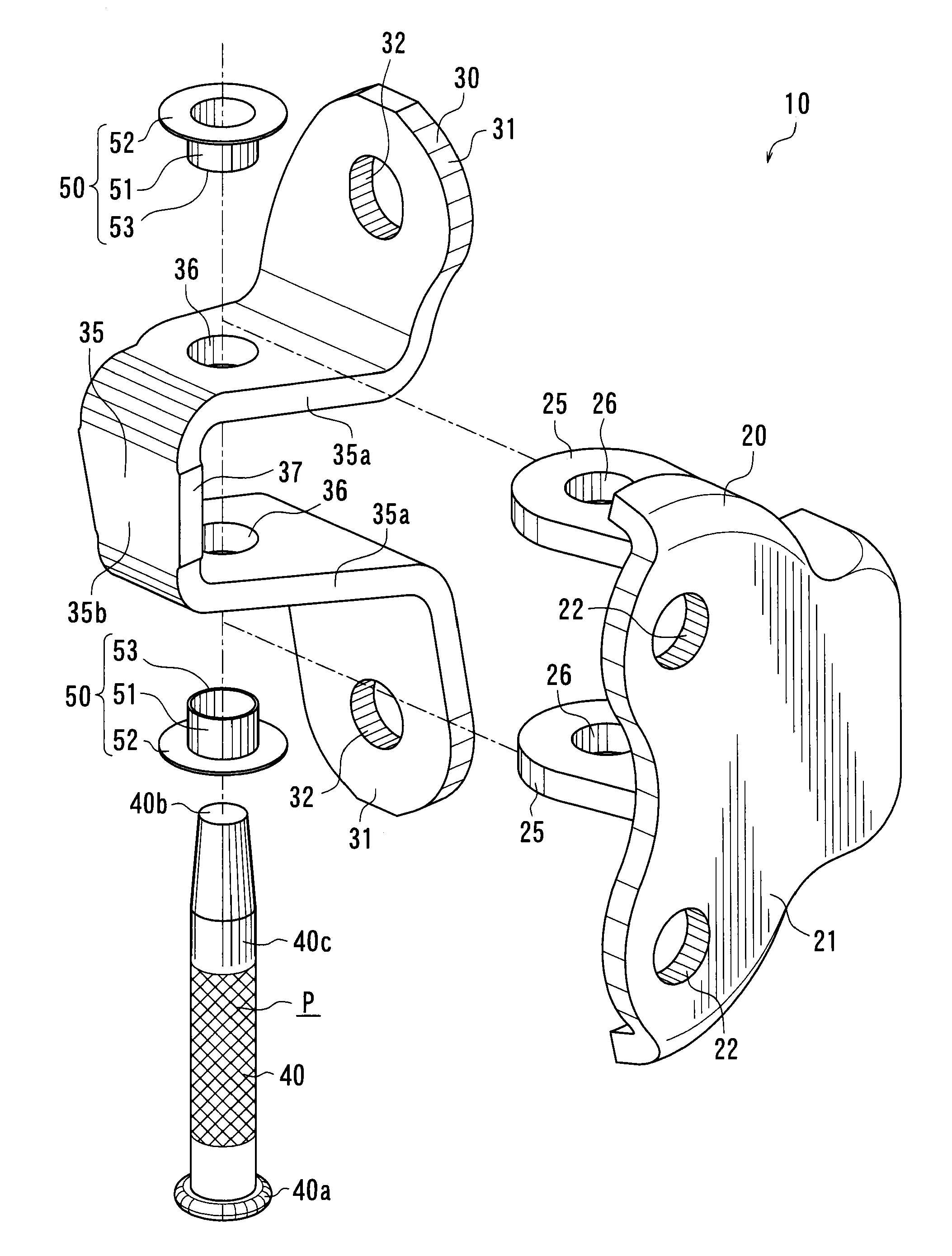

A vehicle door hinge that is positioned between a vehicle main body and a vehicle door and connects the same to each other in order to connect the vehicle door to the vehicle main body so as to be openable and closable may include a female bracket that is securely attached to one of the vehicle main body and the vehicle door, a male bracket that is securely attached to the other of the vehicle main body and the vehicle door, a rotation shaft member that is secured to the female bracket and supports the male bracket to be rotatable relative to the female bracket. A coating film capable of restricting an electric current from flowing from the rotation shaft member to each of the slide bushes is formed in a portion of an outer circumferential surface of the rotation shaft member, which portion includes a part of a contact portion thereof that slidably contacts each of the slide bushes in a rotational axis direction and at least a proximity range thereof that is positioned in proximity to an exposed end periphery of each of the slide bushes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- E05D Class
- 294 Applications Filed
- 131 Patents Issued To-Date
- 44.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 13, 2025 |
