Method and apparatus for installing tidal barrages
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 6, 2013
Grant Date -
Sep 29, 2011
app pub date -
Sep 2, 2009
filing date -
Sep 16, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

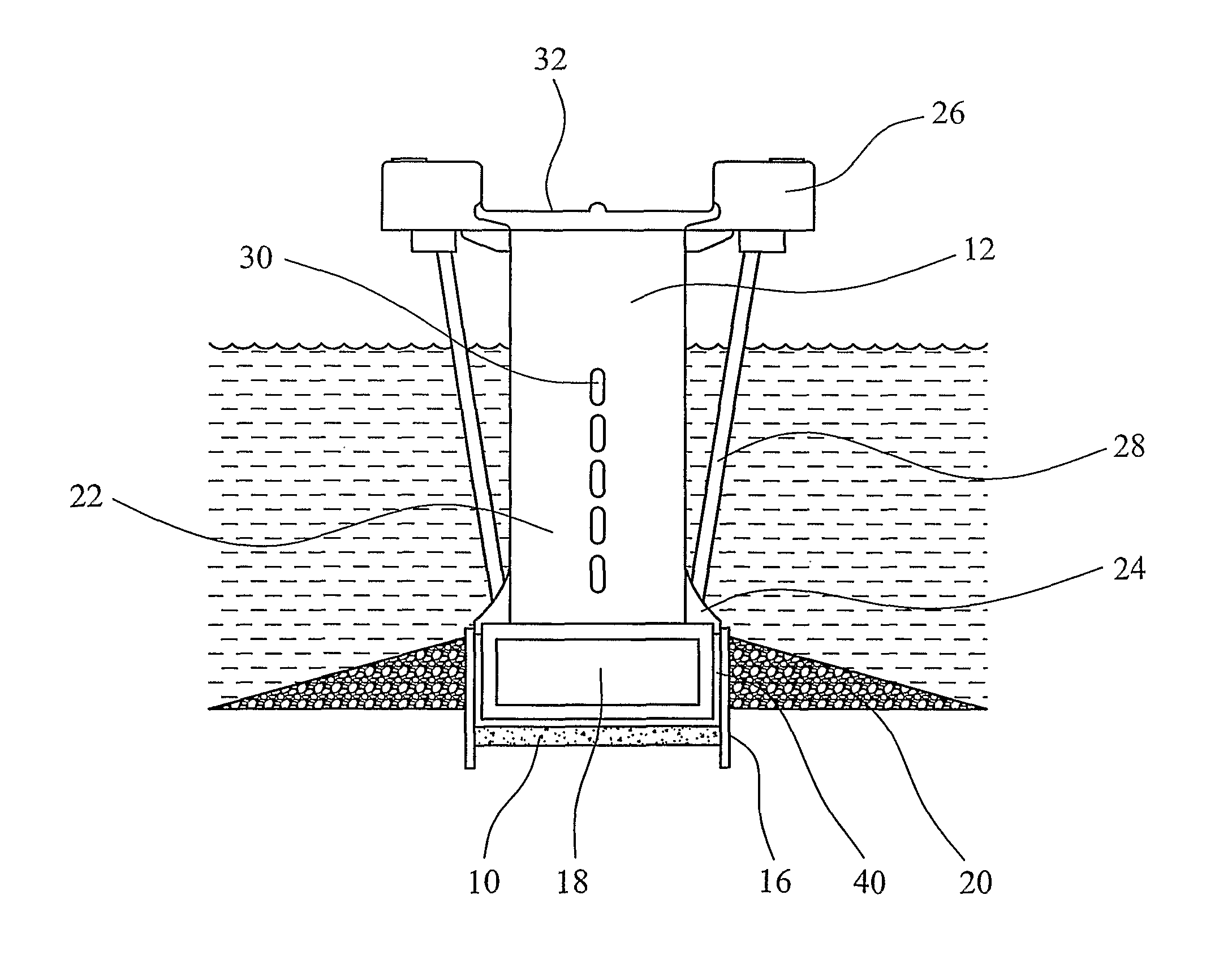

A method is provided for installing a barrage across a body of water for generating electricity or current flow, the barrage being formed from a series of modules, each of which comprise a base structure carrying a number of substantially vertical pipe structures in a spaced, side-by-side arrangement, and a deck structure extending across the top of the pipe structures and supported by at least two pipe structures, the method comprising: preparing a series of foundation terraces across the bed of the body of water substantially perpendicular to the direction of flow, each foundation terrace providing a substantially flat base on which the base structure of one or more modules on the terraces side by side such that the base section of each module rests on a terrace and the deck structure of each module is located at substantially the same height as that of its neighboring modules.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- E02B Class
- 120 Applications Filed
- 79 Patents Issued To-Date
- 65.84 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E02B Class
- 0 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 6, 2025 |
