Pneumatic connections for prosthetic socket
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 30, 2013
Grant Date -
Oct 30, 2008
app pub date -
Apr 22, 2008
filing date -
Apr 27, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance

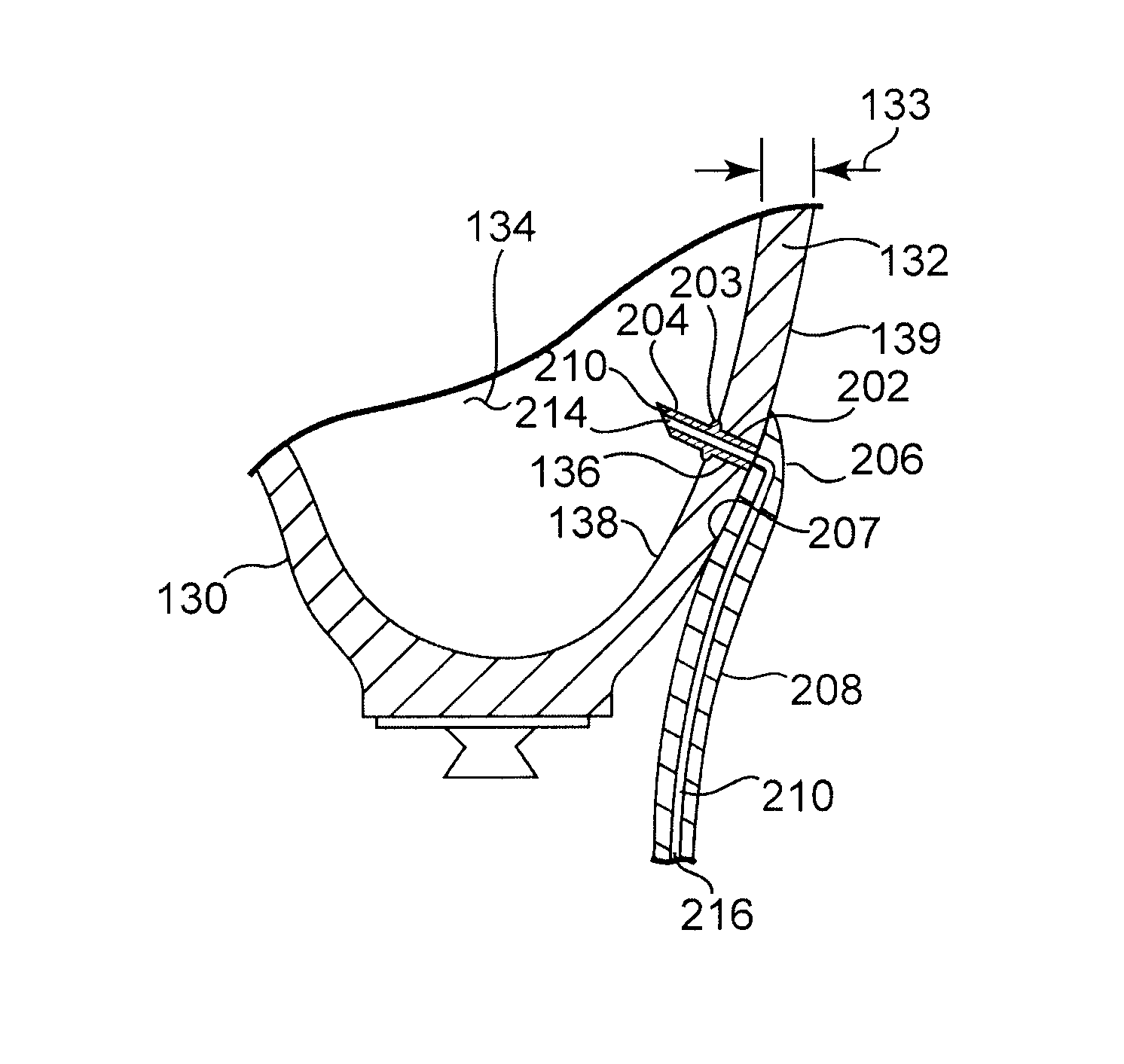

Abstract
A connector for fluidly connecting the sealed interior of an artificial limb socket with a pressure source when the connector is mounted to the socket at a hole and an artificial limb including same. The connector includes a flexible elongated tubular section having a lumen, a flange coupled to one end of the elongated tubular section, the flange having a seal surface for sealingly abutting one of the socket wall surfaces around the hole, and a tubular portion adjacent to the flange and extending the lumen from the seal surface of the flange. Tubular portion has at least one section oversized relative to hole which provides a reasonable air-tight seal between the at least one section and an inner surface of the hole or the other of said socket wall surfaces around the hole and distant from the flange, when the tubular portion is received within the hole.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A61F Class
- 2.30 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 30, 2025 |
