Tipless can filling valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 30, 2013
Grant Date -
Jan 13, 2011
app pub date -
Jul 12, 2010
filing date -
Sep 21, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

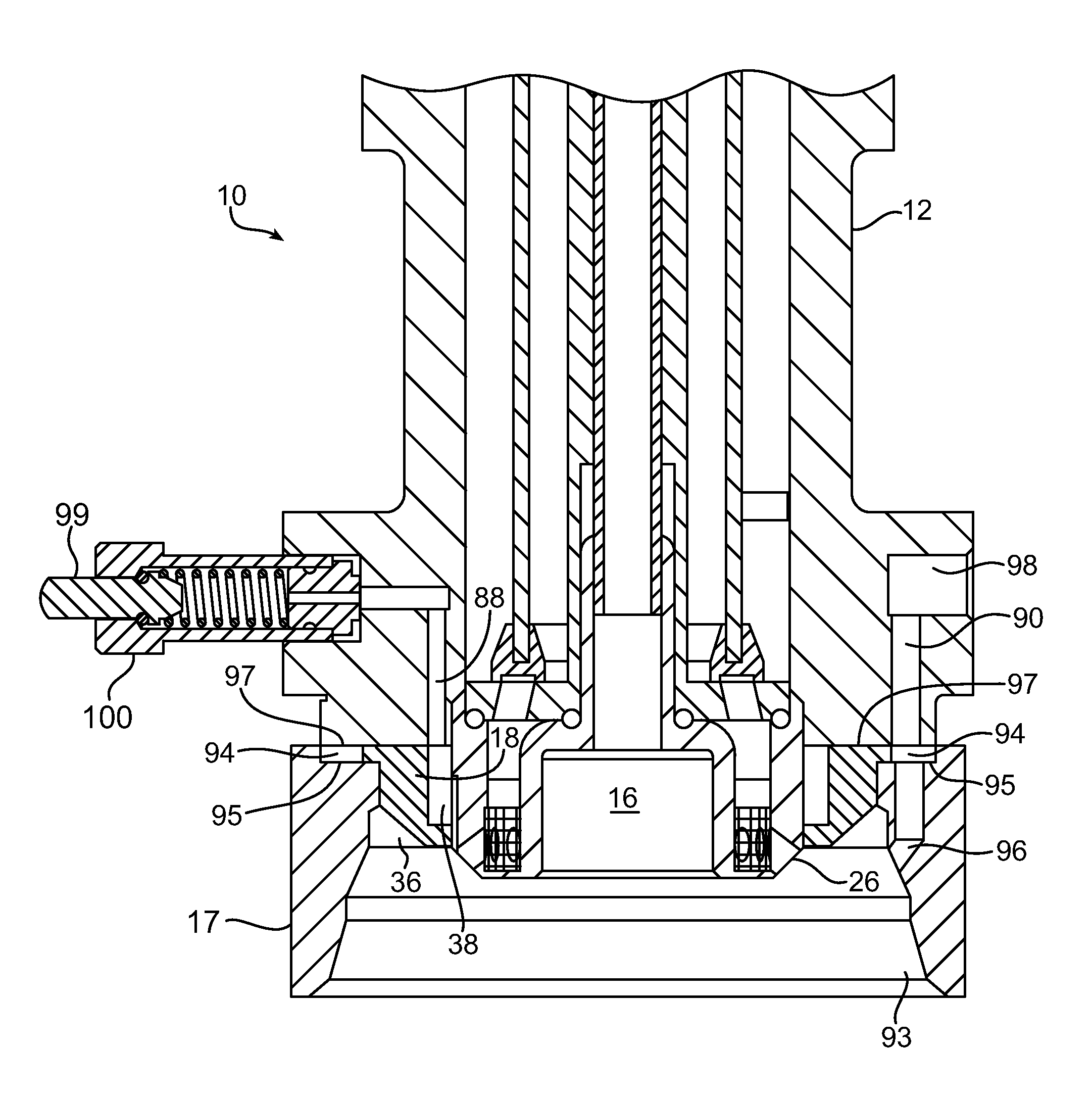

A filling valve is provided for filling containers such as beverage cans. The valve includes a tipless nozzle having ports oriented for directing flow. The nozzle includes a valve seat having a planar sealing surface. A spring actuated vent seal is provided for closing the vent tube. The valve stem may have protrusions for centering the stem in the valve body. The filling valve may have a bell forming a cavity between the bell and the valve body, and an aperture for directing cleaning fluid from within the bell to the cavity. The valve body may have a duct for directing cleaning fluid from the cavity to an outlet.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 30, 2025 |
