Distributor plate for fluidized bed equipment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 30, 2013
Grant Date -
Aug 18, 2011
app pub date -
Feb 10, 2011
filing date -
Feb 12, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

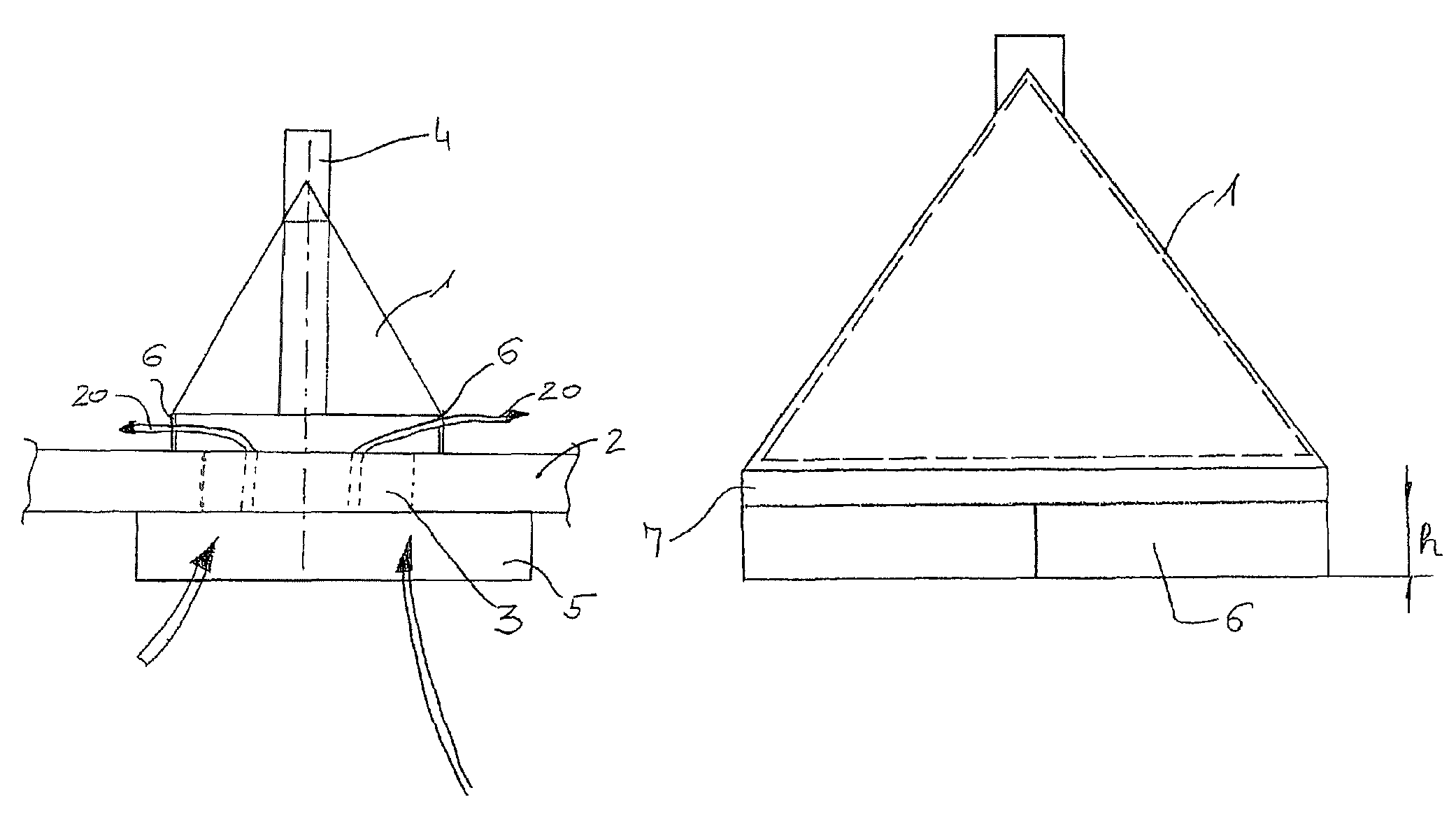

The invention refers to a distributor plate (12) for fluidized bed equipment (9) with openings (3) and deflector strips (1) arranged directly above them. It is characterised by the deflection strips (1) having an oblong shape, being mounted longitudinally in the fluidized bed equipment (9), in parallel to the main flow direction (19) of the product above the openings (3) in the base plate (2), and having spacers (6) that form an outflow cross-section around the periphery of the deflection strip (1) for the fluidizing gas, where the base plate openings (3) can be designed advantageously with an oblong cross-section. This ensures good fluidization of the material, while also conveying it.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2011 Application Filing Year
- F26B Class
- 274 Applications Filed
- 210 Patents Issued To-Date
- 76.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F26B Class
- 12.57 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 30, 2025 |
