Clamping device for a cutting insert
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 23, 2013
Grant Date -
Jul 7, 2011
app pub date -
Aug 10, 2007
filing date -
Aug 10, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

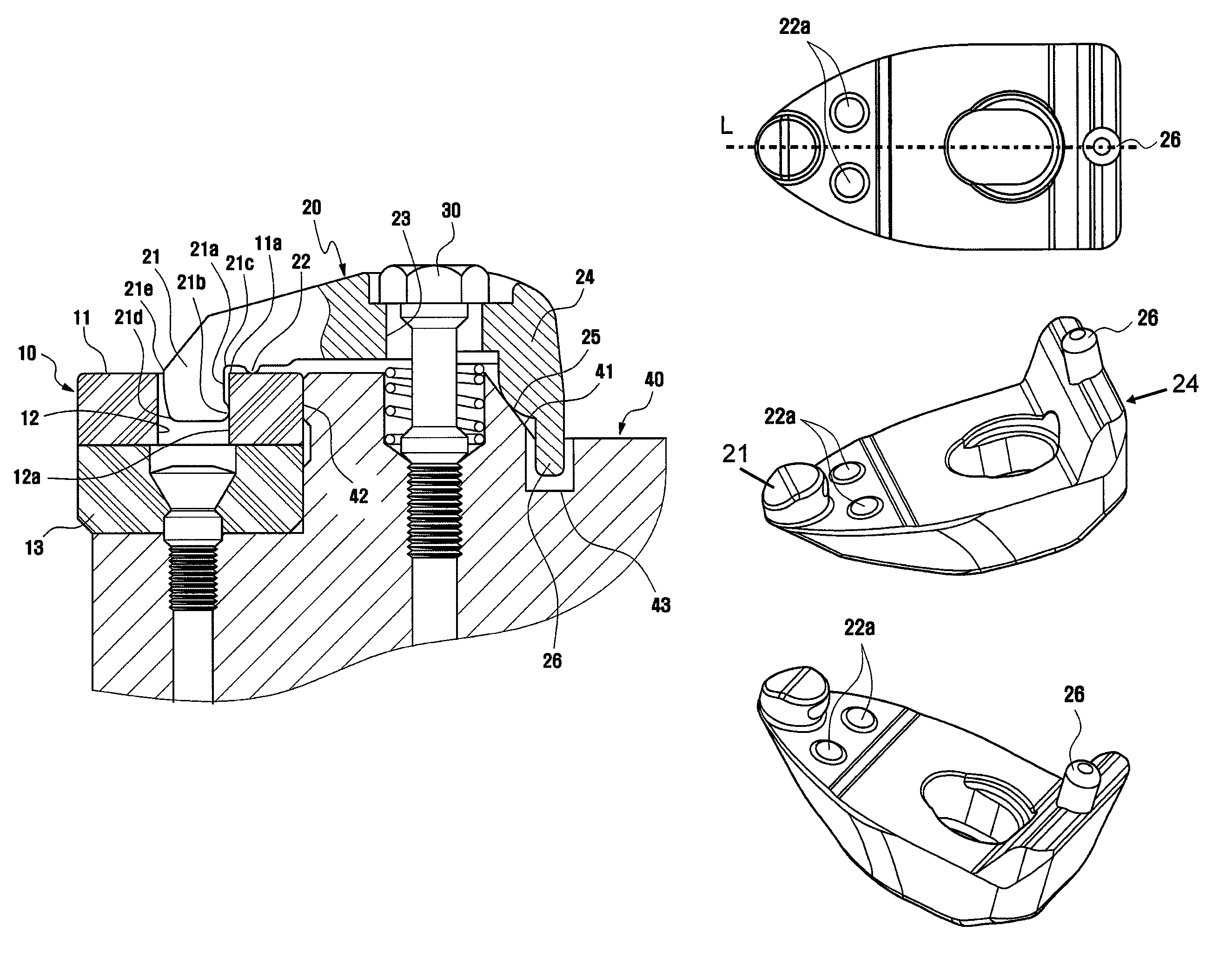

An insert clamp secures a cutting insert having a central hole to a tool holder. The clamp includes a forward protrusion to be received in the central hole of the insert, a central body portion provided with a pressing part to press down the upper surface of the insert and a screw hole for a clamping screw to pass through, and a rear protrusion having a rear contact surface to come in contact with a rearward slanting surface of the tool holder. The forward protrusion is formed on the forward end of the insert clamp, an inside surface of the forward protrusion extends downward in a spaced state apart from the inner wall of the central hole of the insert, and a distal portion of the inside surface the forward protrusion is provided with a protuberance of convex curved surface to come in tangential contact with the inner wall of the insert. The pressing part is formed on the bottom surface of the central body portion of the insert clamp, and has convex curved surfaces to come in tangential contact with the upper surface of the insert on both regions of the bottom surface of the central body portion which is bisected by a central line passing through the forward protrusion and the screw hole.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 23, 2025 |
