Fitting structure including a pair of connection pipes and a clamp ring
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 23, 2013
Grant Date -
Nov 27, 2008
app pub date -
Nov 17, 2006
filing date -
Nov 29, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

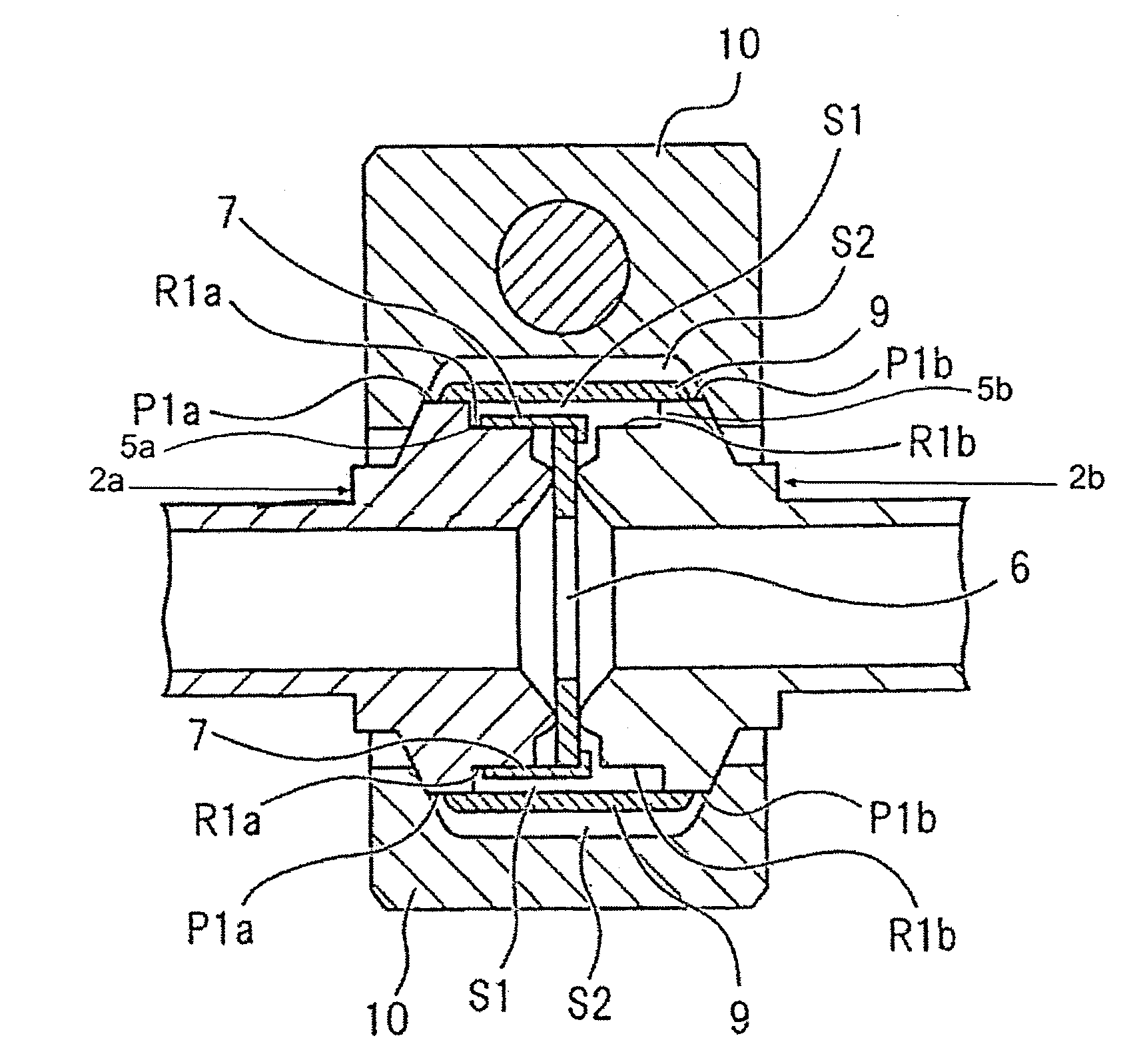

An engagement section of a holder is engaged with a metal gasket, the gasket is received in a tubular section, and the tubular section is fitted in a step of a connection pipe. Another connection pipe is placed close to and facing the connection pipe that holds the gasket through the holder, and a center ring is installed surrounding the outer peripheries of the flanges. While a trapezoidal section having slopes which define both sides is inserted into a groove, center ring segments are closed to form a ring shape. A bolt which penetrates through a cutout of a segment is screwed into a threaded hole of the segment. The screwing of the bolt causes the amount of insertion of the trapezoidal section, which has slopes which define both sides, into the groove to be increased. As a result, the distance between flanges is reduced and the contact pressure of projections against both sides of the gasket is increased.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16L Class
- 0 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 23, 2025 |
